Uniforest 45H User Manual

39

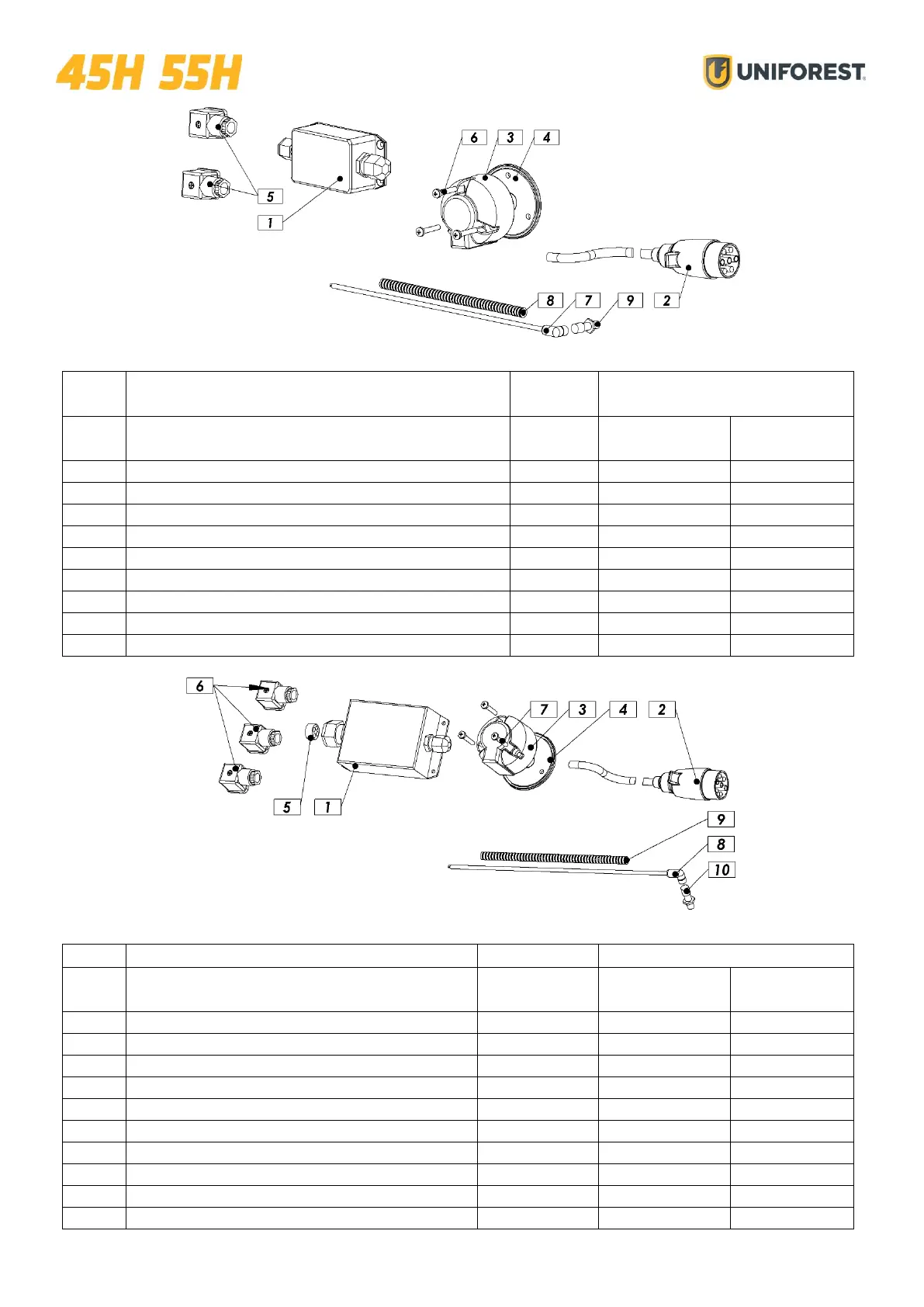

Figure 10: 7002.12.10.0 / 7002.12.30.0 – Cables H/H+KS.
Figure 11: 7002.12.50.0 / 7002.12.00.0 – Cables Hpro/Hpro+KS
Pos.
Name
No. of
pieces
Number
45/55H
7002.12.10.0
45/55H+KS
7002.12.30.0
1
Electronics (H + KS)
1
/
1017937
2
7-pin plug
1
1000988
1000988
3
7-pin socket
1
1000987
1000987
4
RUBBER WASHER FOR SOCKET
1
1000991
1000991
5
HYD. valve connector
2
1000934
1000934
6
SCREW M5 x 30 ZN
3
1000082
1000082
7
Sensor cable
1
/
1011893
8
SENSOR PROTECTION TUBE
1
/
1015391
9
Sensor
1
/
1010814
Pos.
Name
No. of pieces
Number
45/55Hpro
7002.12.50.0
45/55Hpro+KS
7002.12.00.0
1
El. box - central (PG9, M25)
1
1017616
1017616
2
7-pin plug
1
1000988
1000988
3
7-pin socket
1
1000987
1000987
4
RUBBER WASHER FOR SOCKET
1
1000991
1000991
5
GLAND RUBBER M25 4x6mm holes
1
1017389
1017389
6
HYD. valve connector
3
1000934
1000934
7
SCREW M5 x 30 ZN
3
1000082
1000082
8
Sensor cable
1
/
1011893
9
SENSOR PROTECTION TUBE
1
/
1015391
10
Sensor
1
/
1010814
