Uniforest 45H User Manual

30
Spare parts list

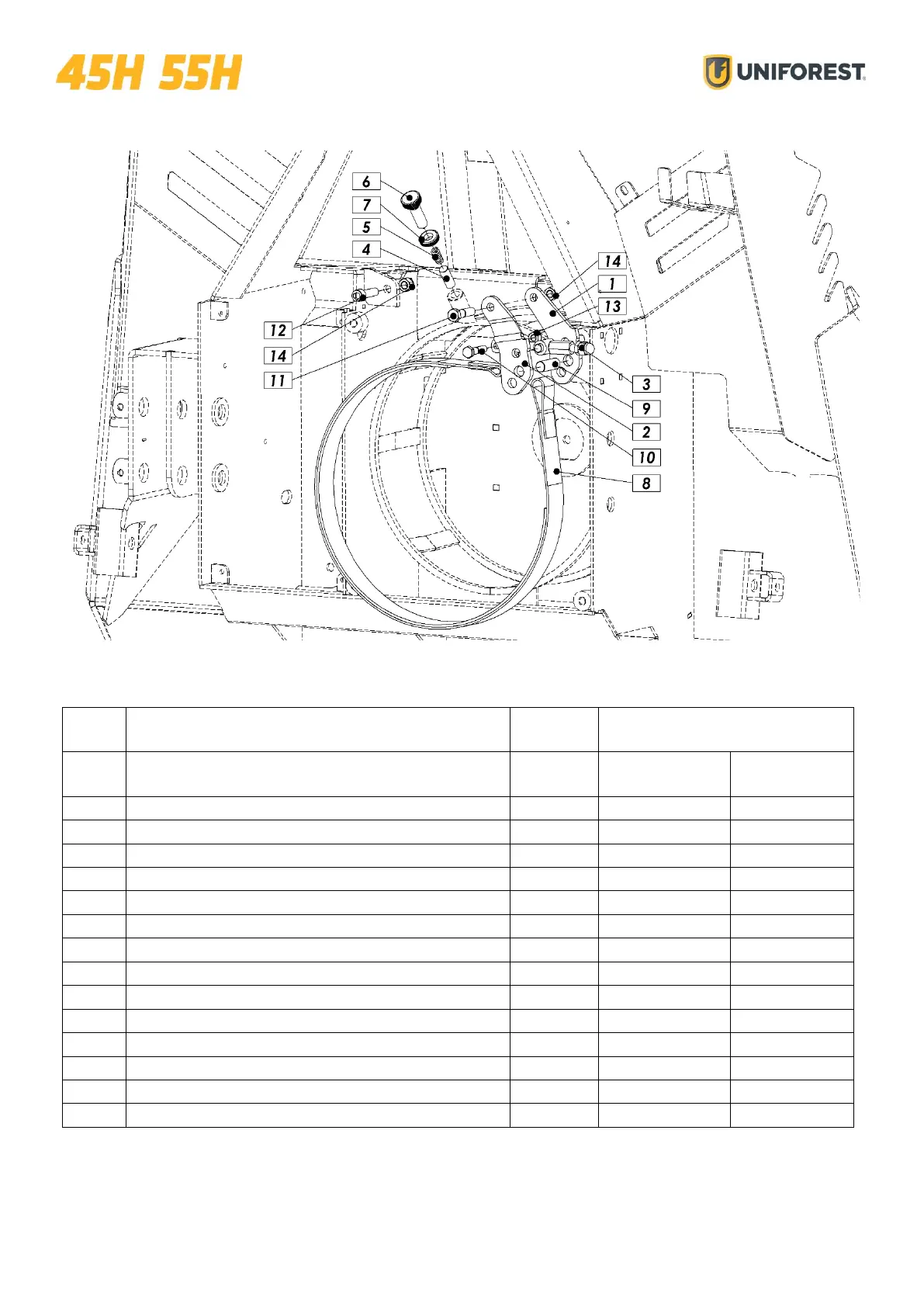

Figure 1: 4006.05.30.0 / 5006.05.30.0 – Brake mechanism.
Pos.
Name
No. of
pieces
Number
45H
4006.05.30.0
55H
5006.05.30.0
1
Clutch plate
1
5006.05.11.0
5006.05.11.0
2
Clutch plate
1
5006.05.12.0
5006.05.12.0
3
Brake fork
1
5006.05.15.0
5006.05.15.0
4
Pre-brake bolt
1
5006.05.34.0
5006.05.34.0
5
Compression spring
1
5006.05.36.0
5006.05.36.0
6
Band brake screw Zn
1
5006.05.37.0
5006.05.37.0
7
Pre-brake nut
1
5006.05.38.0
5006.05.38.0
8
Brake belt var.
1
502.06.00.0
502.06.00.0
9
Brake bolt
1
502.06.12.0
502.06.12.0
10
Screw M10x45 Zn
1
1000075
1000075
11
Screw M12x50 Zn
1
1000072
1000072
12
Hexagon socket screw M12x45
1
1000099
1000099
13
Nut M10 Zn
1
1003461
1003461
14
Nut M12 Zn
2
1000142
1000142
