Uniforest 45H User Manual

31

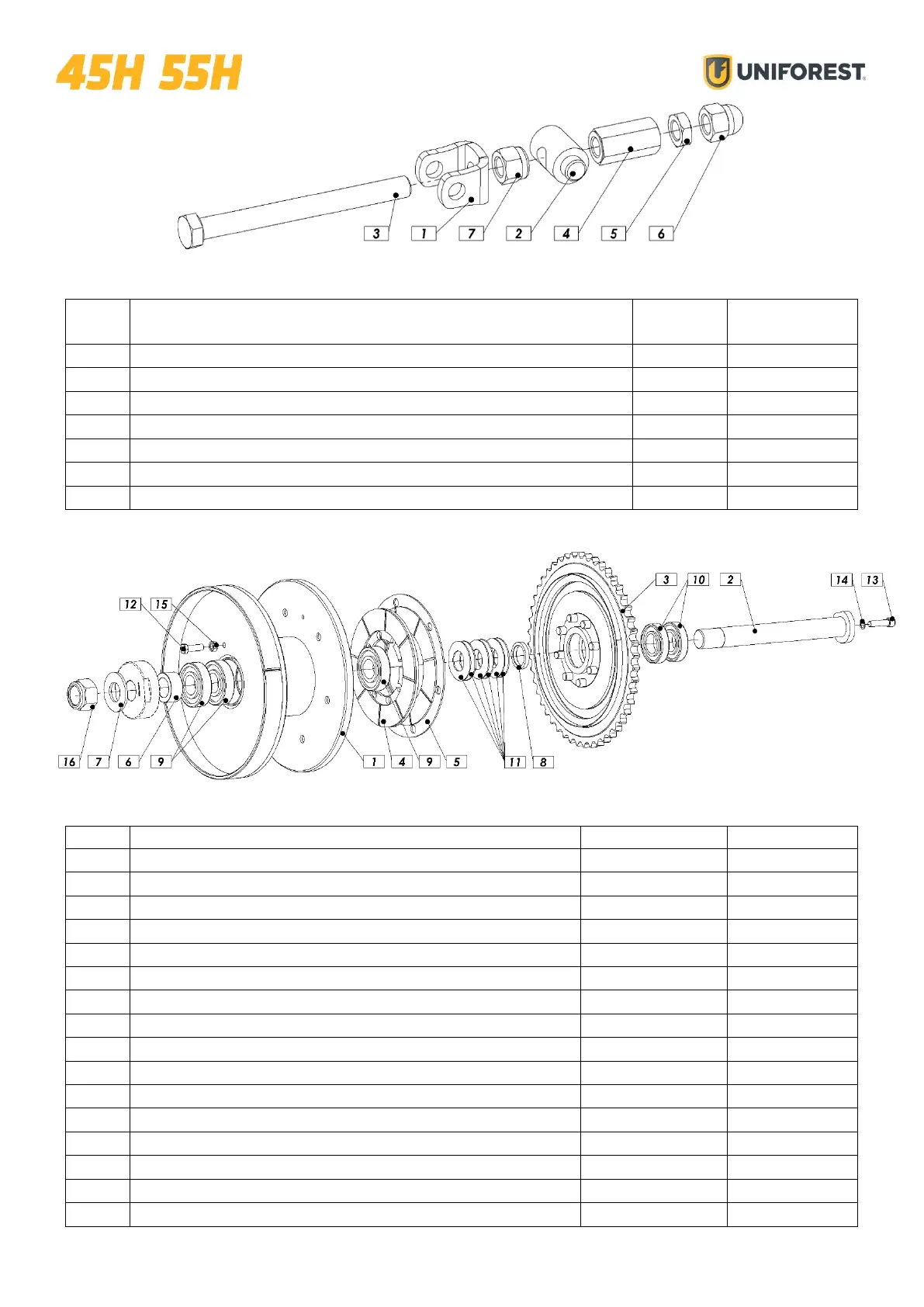

Figure 2: 5006.05.15.0 – Brake fork.
Figure 3: 5006.06.00.0 - Rope drum with a chain wheel.
Pos.
Name
No. of
pieces
Number
1
Fork eye
1
5006.05.16.0
2
Bolt
1
5006.05.14.0
3
Screw M12x130 Zn
1
1000119
4
Nut M12 black
1
1000148
5
Nut M12x1,5 Zn
1
1000150
6
Nut M12 Zn
1
1000149
7
Nut M12 Zn
1
1000142
Pos.
Name
No. of pieces
Number
1
Rope drum var.
1
5006.05.00.0
2
Drum shaft var.
1
5006.06.06.0
3
Chain wheel Z48 var.
1
5006.06.01.0
4
Clutch plate 240
1
5006.06.09.0
5
Clutch plate 274
1
5006.06.10.0
6
Bush
1
5006.06.12.0
7
Washer
1
5006.06.13.0
8
Distance bush
1
5006.06.14.0
9
Bearing 6308 ZZ
3
1000303
10
Bearing 6208 2Z
2
1000301
11
DISC SPRING 80x41x2,25
6
1000290
12
Screw M12x40 Zn
1
1000059
13
Hexagon socket screw M12x45
1
1000099
14
Washer M12 SKZ
1
1000287
15
Nut M12 Zn
1
1000139
16
Nut M39
1
1000147
