Uniforest 45H User Manual

32

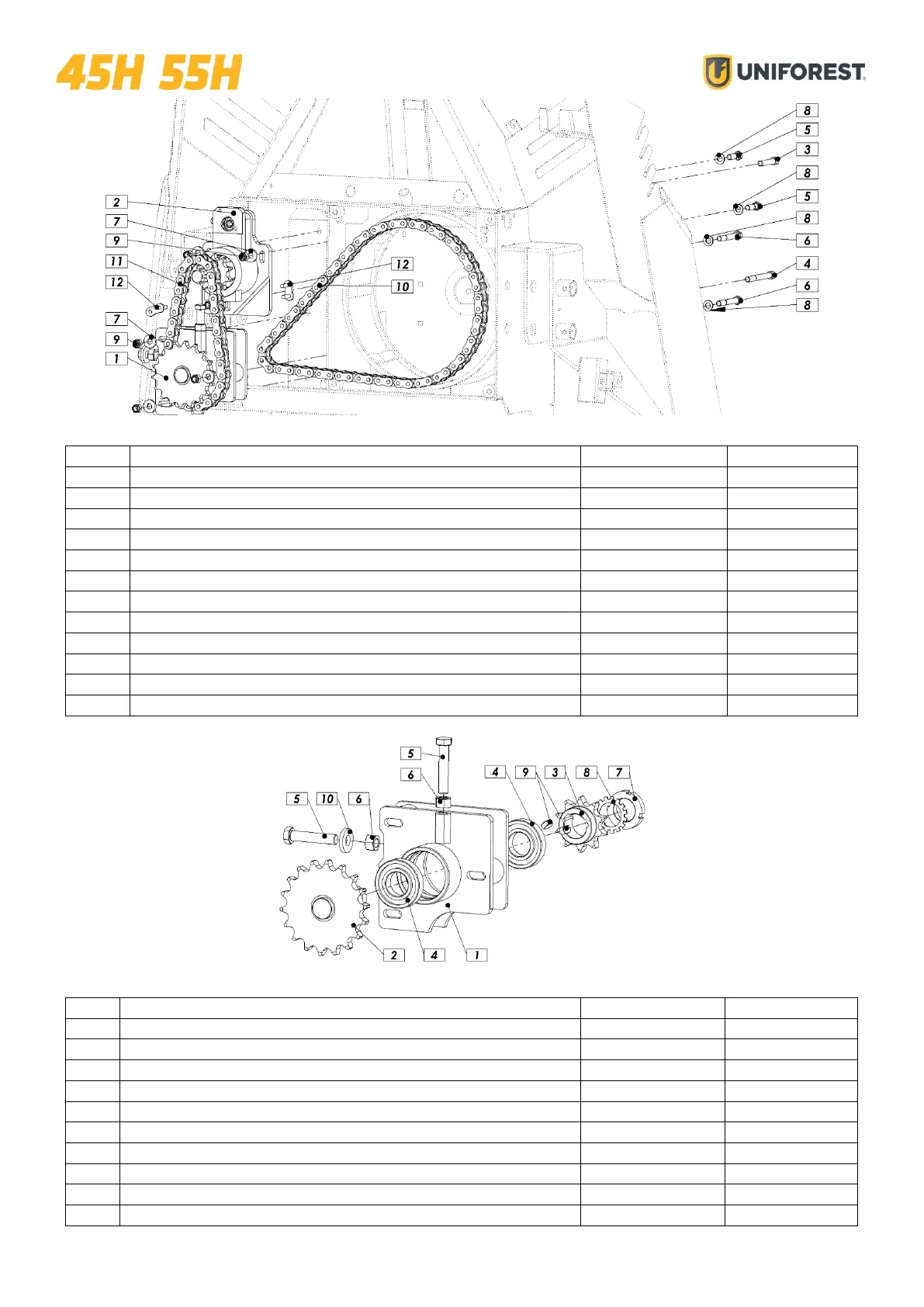

Figure 4: 5006.08.00.0 – Drive.
Figure 5: 5006.08.10.0 – Lower drive.
Pos.
Name
No. of pieces
Number
1
Drive kpl.
1
5006.08.10.0
2
Reduction gear kpl.
1
5006.08.40.0
3
Hexagon socket screw M12x70
1
1000131
4
Hexagon socket screw M12x120
1
1001095
5
Screw M12x45 Zn
2
1000083
6
Screw M12x95 Zn
2
1000047
7
Washer M12 Zn
6
1003632
8
Washer M12 Zn
4
1000161
9
Nut M12 Zn
6
1000142
10
Chain RK 16 B-1 (Lange 59x25,4=1498,6)
1
1000281
11
Chain RK 16 B-1 (Lange 31x25,4=787,4)
1
1003549
12
Joint link SG 16 B1
2
1003488
Pos.
Name
No. of pieces
Number
1
Drive housing
1
5006.08.15.0
2
Chain wheel with shaft
1
5006.08.20.0
3
Chain wheel z=10
1
702.28.03.0
4
Bearing 6208 2RS
2
1000313
5
Screw M16x80 Zn
2
1000137
6
Nut M16 Zn
2
1000140
7
Nut KM8 ( M40x1,5)
1
1000145
8
Washer MB8 small
1
5006.08.24.0
9
Dowel 12x8x25-A
2
1000417
10
Washer M16 Zn
1
1000183
