Uniforest 45H User Manual

33

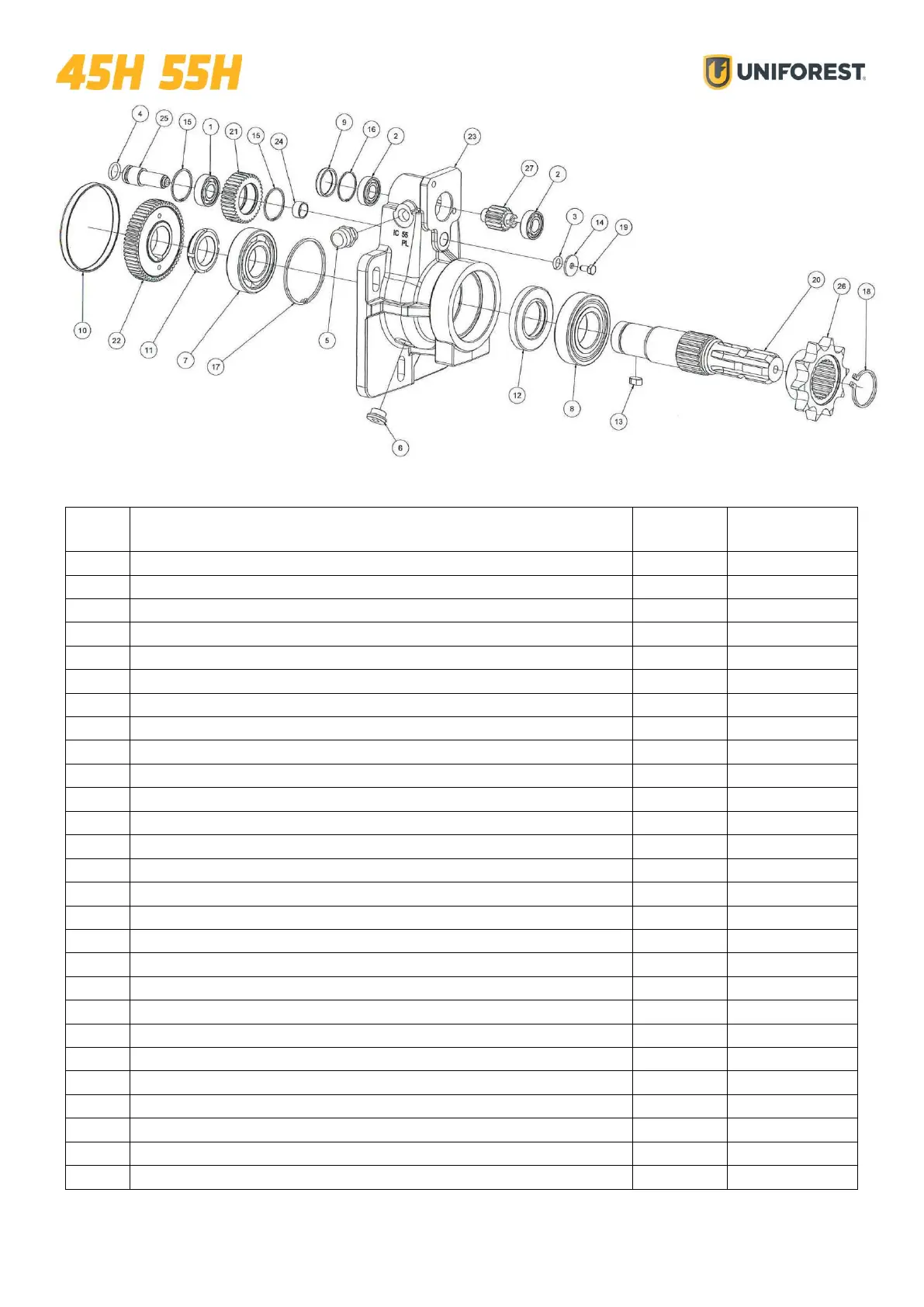

Figure 6: 5006.08.40.0 – Reduction gear GR55.
Pos.
Name
No. of
pieces
Number
1
Bearing 6202
1
1000305
2
Bearing 6002
2
1000324
3
O-ring 112-9.92x2.62 NBR
1
0CUS104
4
O-ring 119-15.08x2.62 NBR
1
0CUS105
5
AIR VENT VALVE 3/8"
1
1011294
6
PLUG HYD. VSTI3/8ED
1
1000778
7
BEARING 6207
1
1000300
8
BEARING 6208 2RS
1
1000313
9
INNER OIL SEAL 32X7
1
1000773
10
INNER OIL SEAL 100X10
1
1000774
11
Nut GUK M35x1,5
1
0CUS529
12
Sealing ring TC 40x72x10
1
0CUS531
13
Dowel UNI 6604 Tipo A-8x7x15
1
0LIN049
14
Washer UNI 6593 -6.4x24x2
1
0RON023
15
RETAINING RING N 35X1,5
2
1000138
16
RETAINING RING N 32X1,2
1
1000264
17
RETAINING RING N 72X2,5
1
1000236
18
RETAINING RING Z 40x1,75
1
1000238
19
SCREW M6 x 12 ZN
1
1000074
20
Drive shaft (GR55)
1
7ALB003
21
Gear wheel B 35x1,5
1
7COR035
22
Gear wheel Z59
1
7COR059
23
Drive housing – casting
1
7CORP005
24
Distance bush 18x9
1
7DIST1890
25
Axis 20x55
1
7PERN2055
26
Chain wheel Z10
1
7PIGN010
27
Gear wheel B 18x1,5
1
7PIGN015
