Uniforest 45H User Manual

41

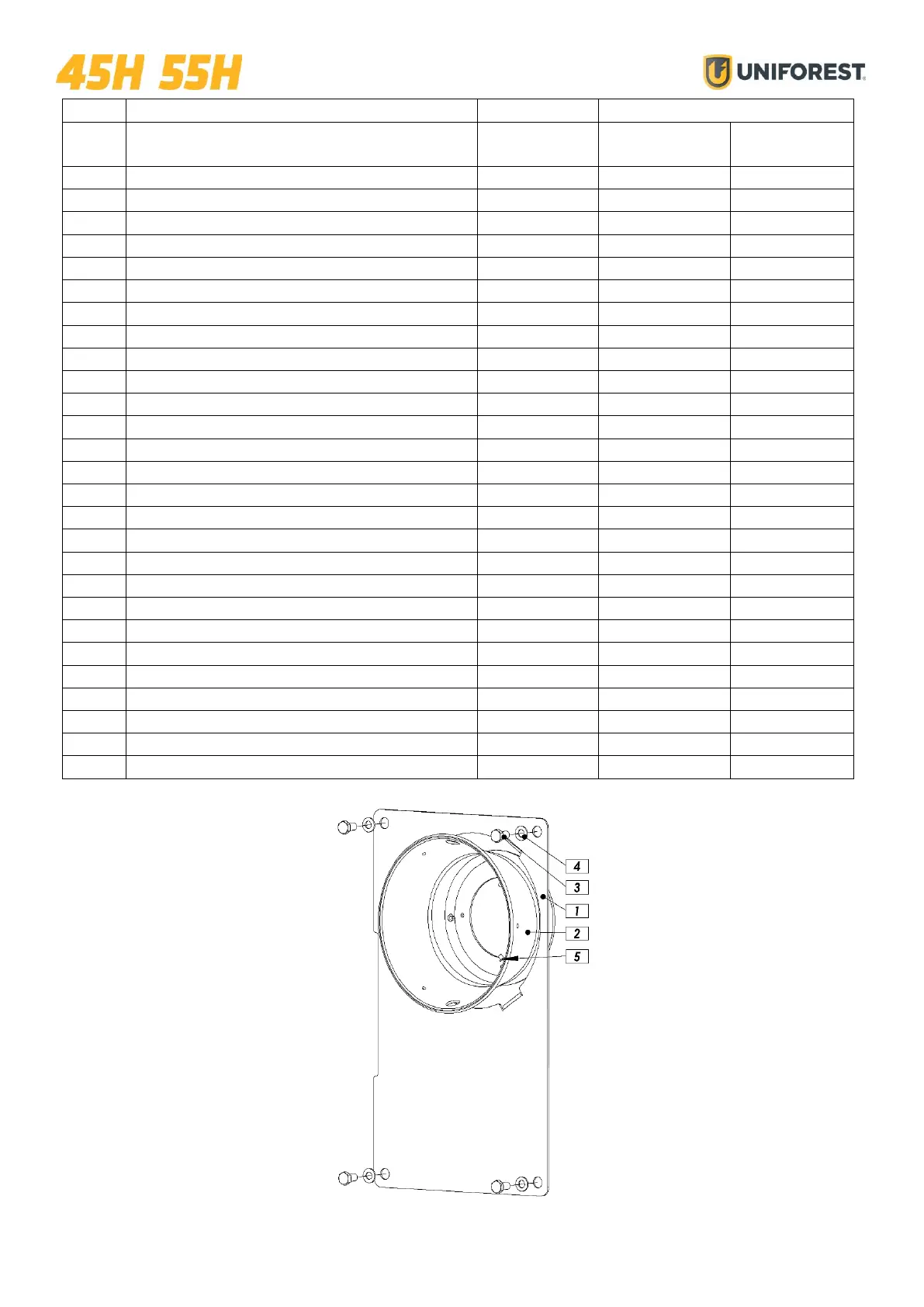

Figure 13: 5002.00.60.0 – PTO protection.
Pos.
Name
No. of pieces
Number
45H
4006.13.00.0
55H
5006.13.00.0
1
Up. attachment pin
1
702.56.03.0
702.56.03.0
2
Lower attachment bolt
2
502.00.20.0
502.00.20.0
3
Protective sheet metal
1
4006.00.50.0
5006.00.50.D
4
Upper protection
1
4006.01.45.0
5006.01.45.0
5
Upper protection
1
4006.01.46.0
5006.01.46.0
6
PTO protection kpl.
1
5002.00.60.0
5002.00.60.0
7
Support foot
2
5006.00.10.0
5006.00.10.0
8
Hub
2
5006.00.15.0
5006.00.15.0
9
Bolt
2
5006.00.16.0
5006.00.16.0
10
Foot spring
2
5006.00.18.0
5006.00.18.0
11
Protective sheet metal
1
5006.00.65.0
5006.00.65.0
12
Drum cover kpl.
1
5006.11.00.0
5006.11.00.0
13
Screen var.
1
5008.88.00.0
5008.88.00.0
14
Screw M8x16 Zn
5
1000050
1000050
15
Screw M8x20 Zn
8
1000051
1000051
16
Screw M10x70 Zn
2
1010831
1010831
17
Screw M10x25 Zn
2
1000061
1000061
18
Washer M8 Zn
21
1003471
1003471
19
Nut M8 Zn
8
1003460
1003460
20
Nut M10 Zn
4
1003461
1003461
21
Spring latch 10mm + chain 2.2 mm
1
1004565
1004565
22
Tube fuse 8x42 mm + chain
2
1004566
1004566
23
Spring latch 6x30
2
1000214
1000214
24
Spring latch 6x40
2
1000208
1000208
25
Grommet, large Ø 70
1
1000736
1000736
26
Cotter pin 5x50
2
1003497
1003497
27
Grease fitting M8x1
1
1000234
1000234
