14
3. Brake
The brake is set via a nut (pos. 5, figure 11). The brake lever (pos. 2) must be in the ON
position (figure 10). First use a wrench key to loosen the nut (pos. 4), then to turn the nut
with the screw (pos. 5) to the left in order to tighten the brake belt and vice versa. For
optimal operation the gap between the nuts must be 11 mm. If the brake force is not
sufficient, repeat the procedure and tighten the nut (pos. 5) to the left. If brake force is set
too high, the unreeling of the rope is more difficult. In such cases, turn the nut to the right.
At the end, tighten the nut (pos. 4).

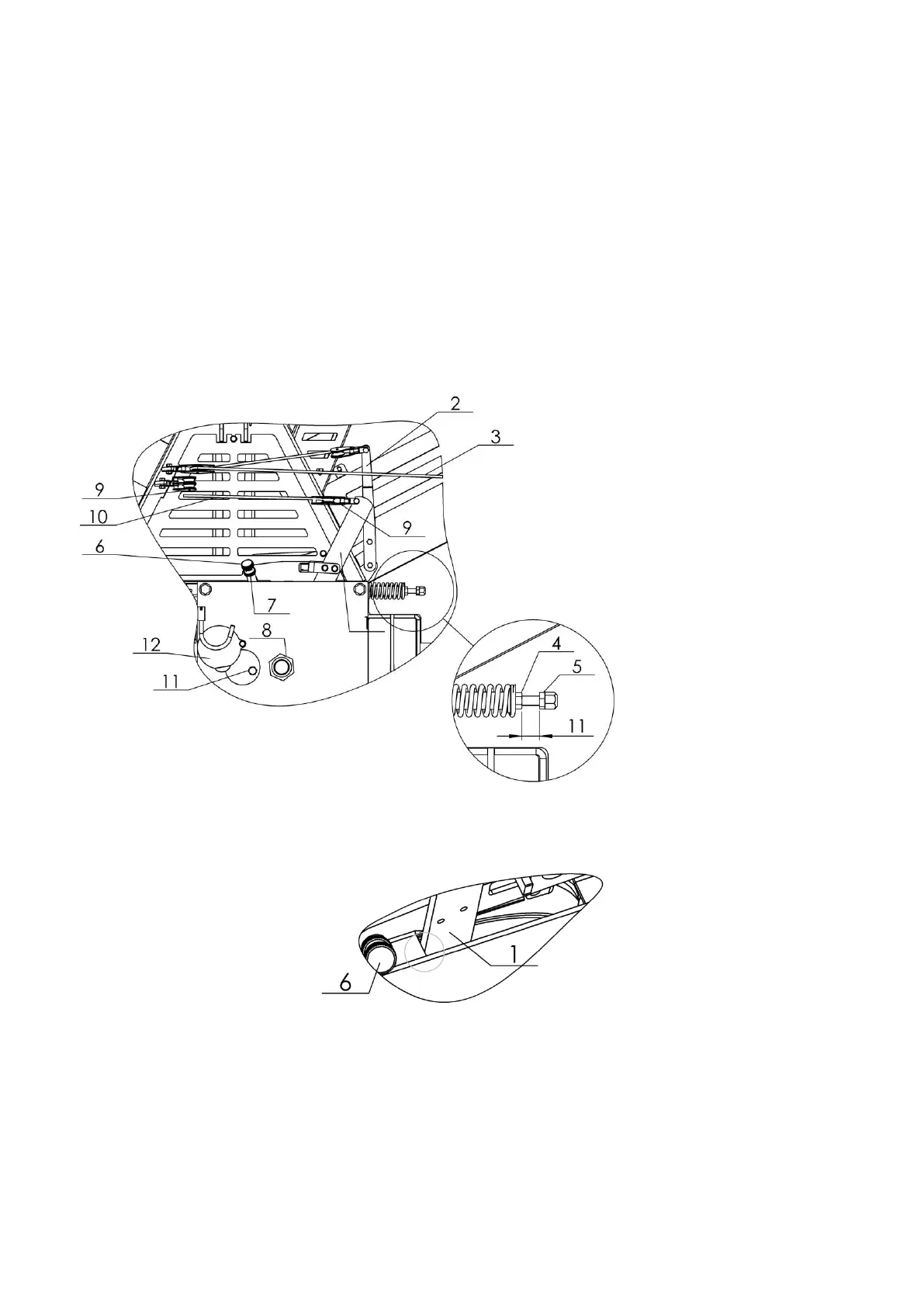

Figure 11
Figure 11a (lever rest)
