Uniforest 45M User Manual

27

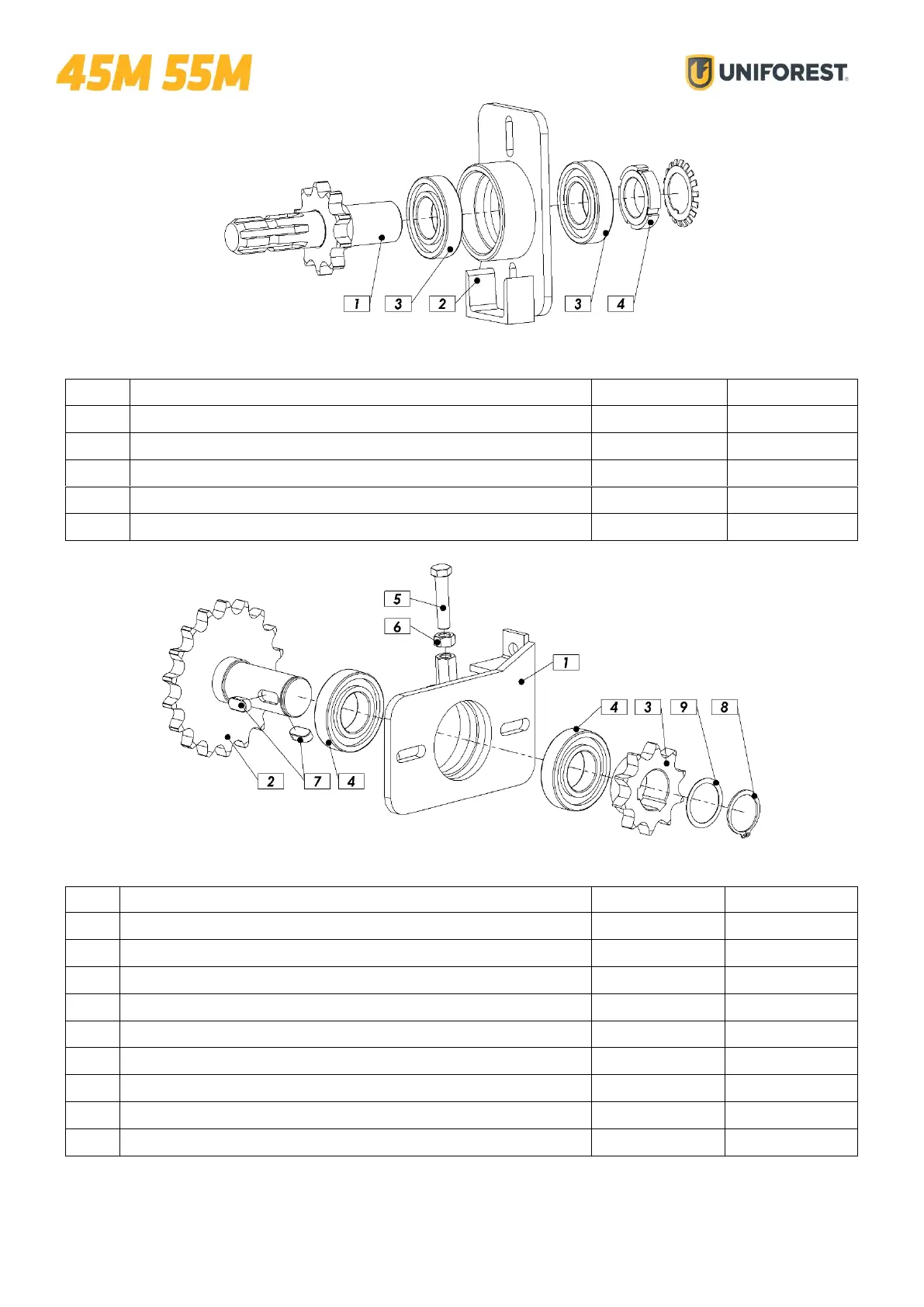

Figure 7: 503.08.00.0 – Drive.
Figure 8: 503.07.00.0 – Drive.
Pos.
Name
No. of pieces
Number
1
Drive shaft var.
1
503.08.01.0
2
Drive housing var.
1
506.08.10.0
3
Bearing 6208 2RS
2
1000313
4
Nut KM8 ( M40x1,5)
1
1000145
5
Washer mb-8
1
1003510
Pos.
Name
No. of pieces
Number
1
Drive housing var.
1
506.08.20.0
2
Drive shaft. lower var.
1
503.07.01.0
3
Chain wheel z=10
1
702.28.03.0
4
Bearing 6208 2RS
2
1000313
5
Screw M12x55 Zn
1
1000084
6
Nut M12 Zn
1
1000139
7
Dowel 12x8x25-A
2
1000417
8
Retaining ring Z40x1.75
1
1000238
9
Washer 40x50x0,5 Zn
1
1000189
