stmi2.fm

STMI2

A31003-H3170-S102-4-7620, 11/2015

OpenScape 4000 V7, System Components (Hardware, Software), Service Documentation 261

4.30 STMI2

The STMI2 (Subscriber Trunk Module IP) board is used as Common Gateway HG

3500.

CAUTION

For lightning protection see Section 1.3, “Lightning Protection”.

The STMI2 board offers the following central and peripheral functions:

• Two network accesses to 10/100Base-T Fast Ethernet, comparable with

RG2500

• Voice encoding functions (based on DSP), comparable with RG2500

• Backplane interface for a default peripheral board

• V.24 interface for test access (service interface)

IMPORTANT: The STMI2 must not be plugged in and unplugged during live

operation.

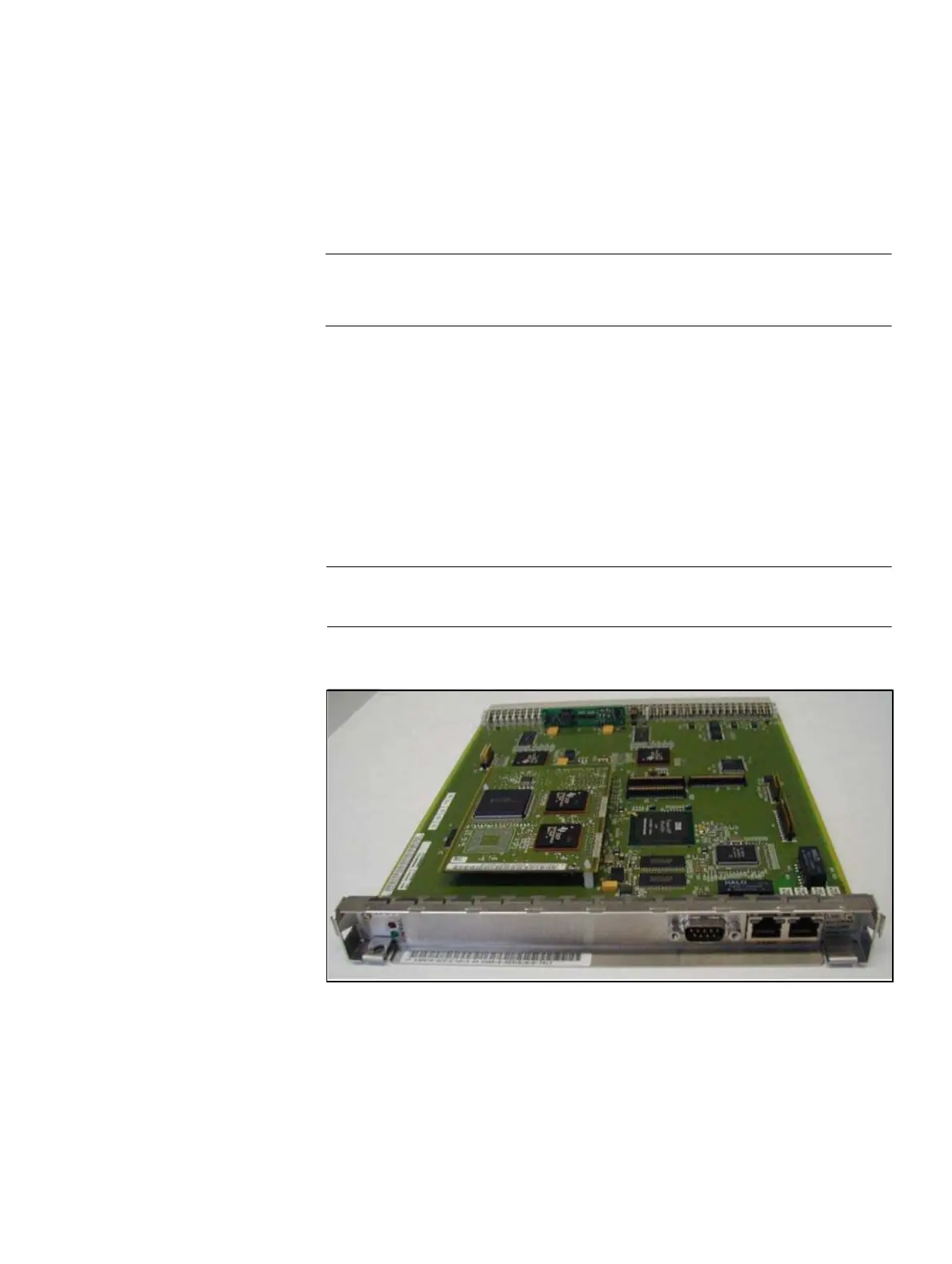

Figure 87 shows the STMI2 board.

Figure 87 STMI2 board

4.30.1 System Diagram

Figure 88 shows a system diagram of the STMI2 board.
