MANUAL - COLD AIR DUCT / HEAT-REMOVAL DUCT FITTING

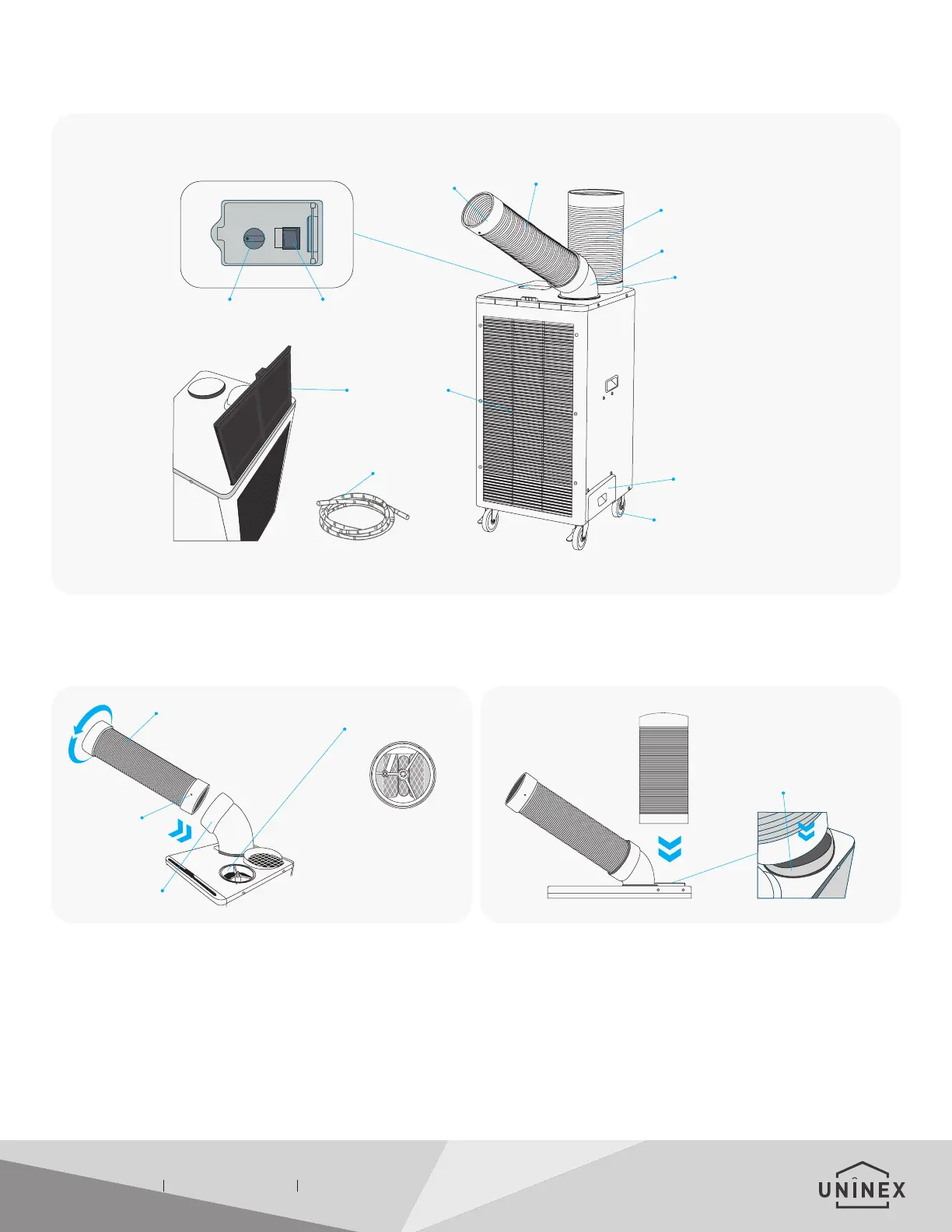

PARTS OF THE MACHINE
UNINEX.COM 800.864.3288 CONTACT US FOR PURCHASE OR RENTAL (Click Here)
INSTALLATION
1. Installing the duct: Fit the elbow into the upper part of the body and press in until it clicks.
2. How to install the cold air duct: Fit the recess of the elbow into the convex of the duct, then turn it counter- clockwise until it stops.
3. How to install the heat-removal duct: When inserting the heat-removal duct, please note the heat -removal mouth recess.
Heat-Removal Duct
Cold Air Duct
Duct Cap
Operation Spot
Revolving Switch Swing Switch
Duct Elbow
Drain Tank (5L)
Particle Filter
Caster
Heat-Removal Mouth
High
Swing Switch
ON
OFF
Low
Off
Power
Insertion
Insertion
Heat-Removal Mouth
Cooling Duct
Convex
Recess
Swing Installment
*When installing the duct elbow,
please note, not to bump
the swing installment.
Drain Hose
