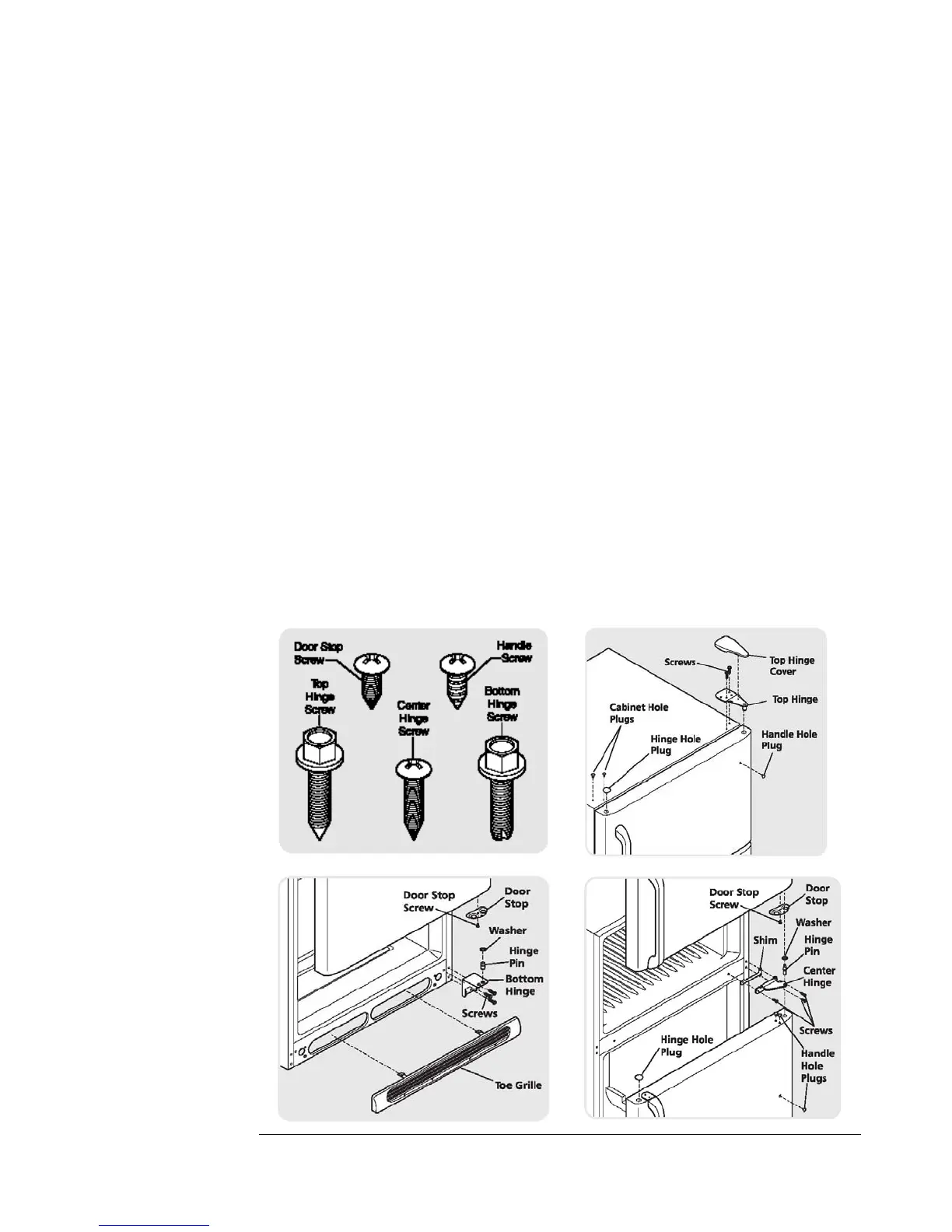

8. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to other hole
in hinge and tighten with adjustable wrench.
9. Reverse door handles (see instructions on next page).
10. Move freezer and refrigerator door stops to opposite side. Before starting screws,
use an awl to puncture the foam.
11. Position refrigerator door onto bottom hinge pin and screw center hinge pin
through center hinge into top of door. Close refrigerator door to help align hinge
hole.
12. Tighten center hinge pin with adjustable wrench.
13. Remove cabinet and hinge hole plugs and move to opposite side.
14. Lower freezer door onto center hinge pin.
15. Close freezer door. Have an assistant lift up on opposite side of door while
tightening screws to install top hinge.
16. Replace toe grille and top hinge cover.
