Unique WS Series User Manual

- 26
-
WS
Series
Advanced air conditioning systems

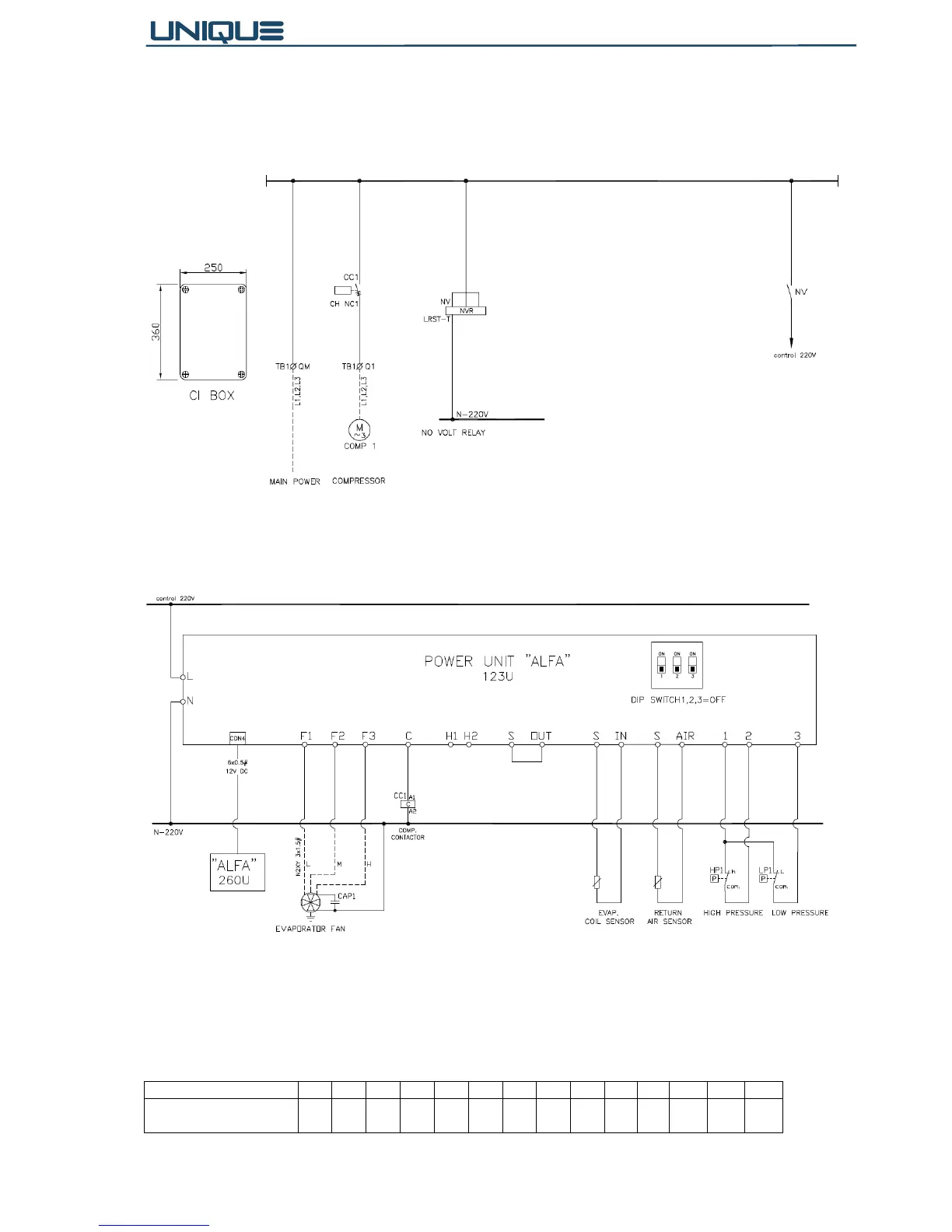

9.2 Electrical Wiring Diagram – 3 Phase Cooling Only – Model 260U
HP – High pressure control ALFA 123U – Power switch unit
LP – Low pressure control ALFA 260U – Room Thermostat
CC – Compressor contactor
WS Type 12 15 22 28 36 43 48 54 61 75 85 102 120 144
MAIN POWER Cable
Cross Section Area mm²
2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4 6 10 10
