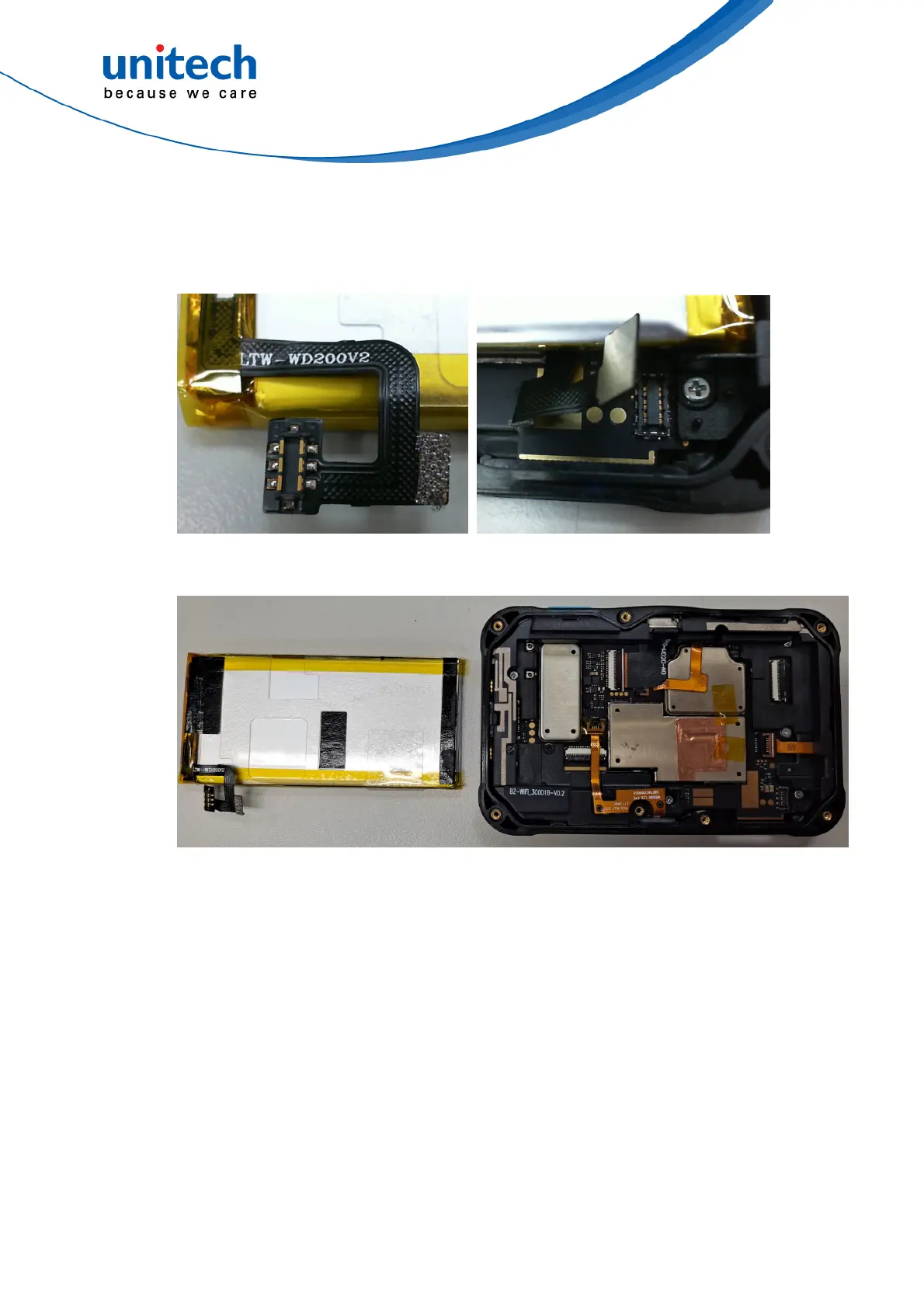

3. There has a female connector on the battery FPC cable and a male
connector on the mainboard as below shown, please be careful to remove
the battery connector from the mainboard.
4. The battery was separated from WD200 as shown in the below figure:
