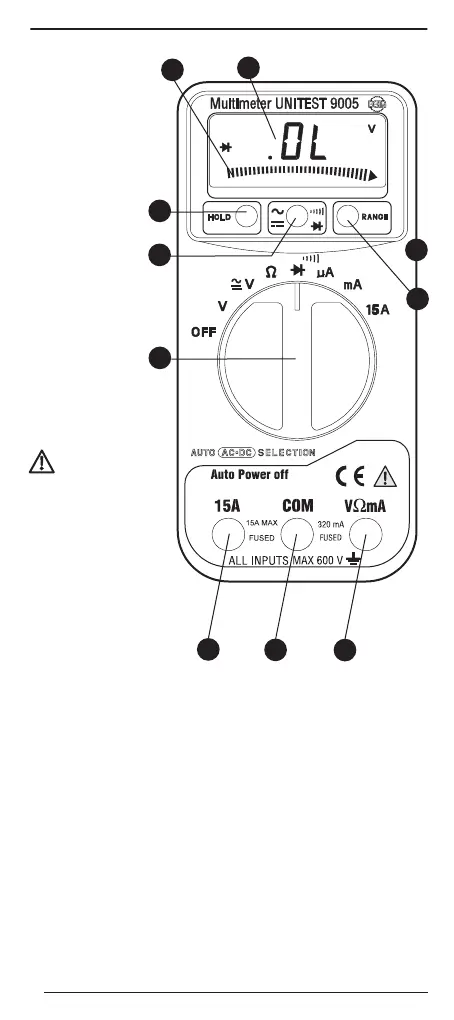

UNITEST 9005:

1. Digital LCD:

display for over-

load (OL), pola-

rity, units, DC

and AC measure-

ment values, dis-

charged battery.

1a. Analogue bar-

graph display.

2. Measurement

mode selection

switch:

for selecting the

appropriate mea-

surement mode.

3. Input socket for

current measure-

ment up to 15 A.

Attention !

Respect current

measurement

references.

4. Reference input for

voltage, current and

resistance measure-

ments (COM).

5. Input socket for voltage,

resistance and current

measurement

up to 320 mA.

6. Battery casing on rear of instrument.

7. “HOLD“ button: memorizes displayed value.

If the instrument has been switched off via auto-power-off

function, the multimeter can be reactivated by pressing the

Hold button.

8. Button “=/;“: automatic switching between DC and AC voltage

measurement and between diode and continuity measurement.

(Automatic switching between DC and AC voltage measurement

in position “V“).

9. “RANGE“ button: manual measurement range selection.

Return to automatic operation when pressing the button for approx.

2 s.
