as

a

further

step,

disconnect

the

chassis

comprising

circuitry

(1)

along

with

the

transformer

from

the

mechanism

(2)

by

undoing

four

screws

as

marked

in

Fig.

3,

——

undo

four

screws

which

connect

the

mechanism

plate

(1)

with

the

wooden

frame

(2)

(refer

to

Fig.

4),

straighten

the

bends

of

the

handle

(3)

clamps,

re-

move

the

handle,

and

then

remove

the

mechanism

out

from

the

frame.

Note:

When

dismantling,

disconnect

the

connection

sockets

and

desolder

the

motor

and

loudspeaker

leads.

Do

not

undo

without

any

‘serious

reason

the

four

screws

holding

down.

the

bridge

with

heads

and

do

not.

separate

the

small

frame

from

the

supporting

plate

as

shown

in

Fig.

3

and

4.

Each

time

such

dismantling

is

done,

it

is

necessary

to

carry

out

readjustment

and

realignment

anew.

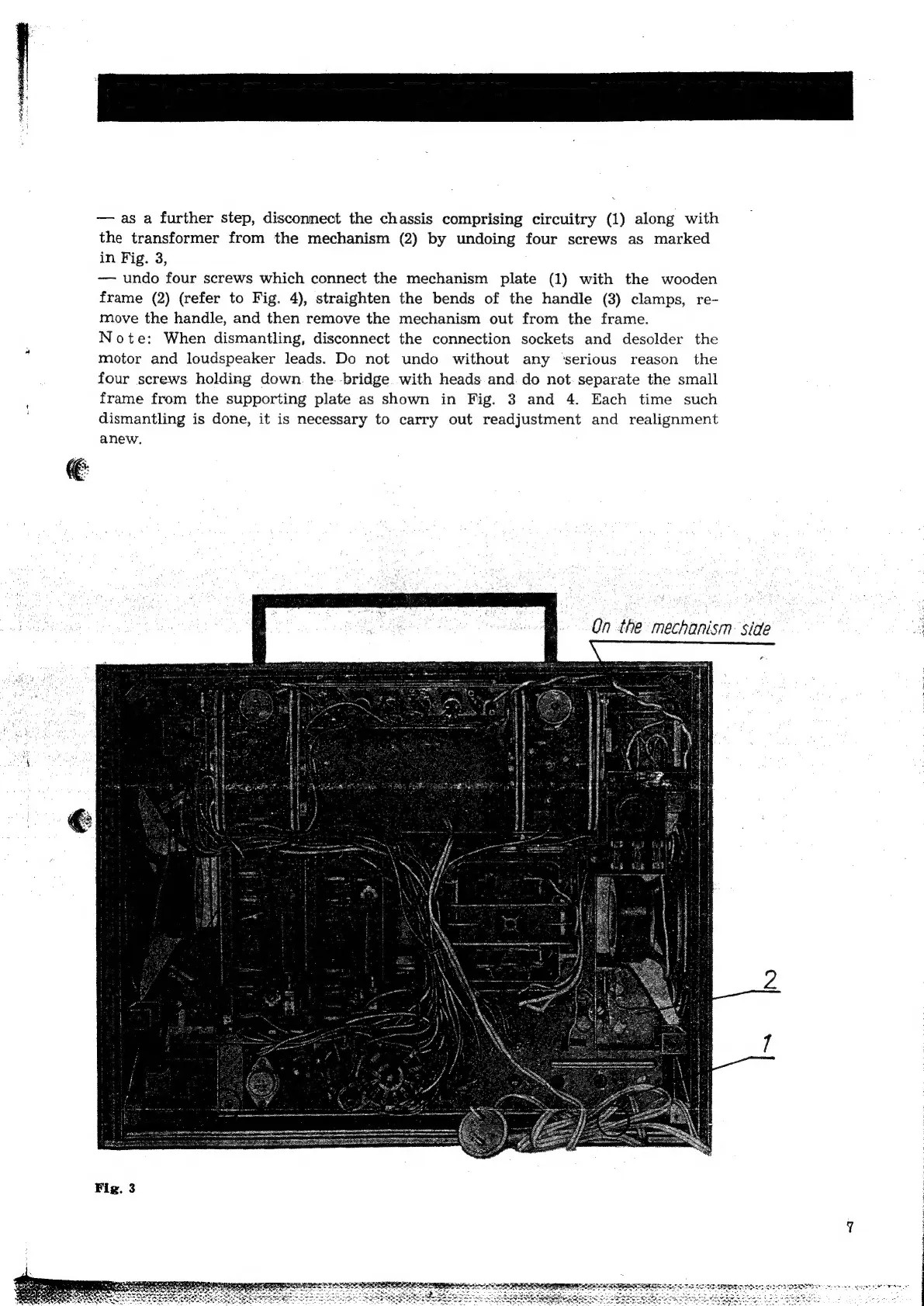

“On

the

mechanism

side

Fig.

3

Lies

SE

Re
