IO-LC1, IO-LC3 I/O Expansion Modules 4/04

6 Unitronics Industrial Automation

Loadcell Inputs

 Use 6 or 4 wire shielded cable (6 wire is recommended).

 The cable shield should be connected ONLY to the Loadcell chassis. The shield at the other end of the

cable should be left unconnected.

 Refer to the figures below for wiring guidelines.

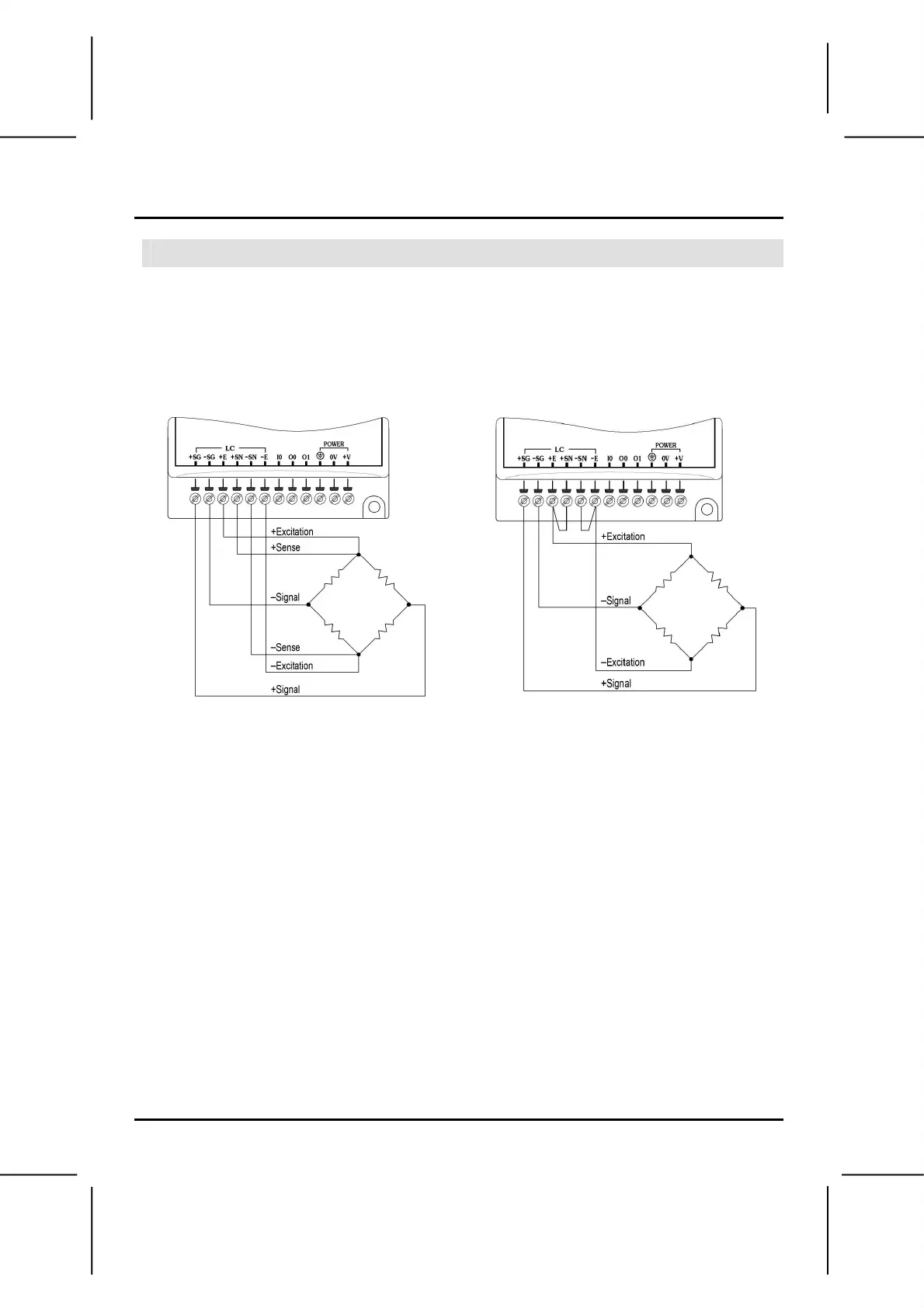

6 wire Loadcell wiring 4 wire Loadcell wiring
