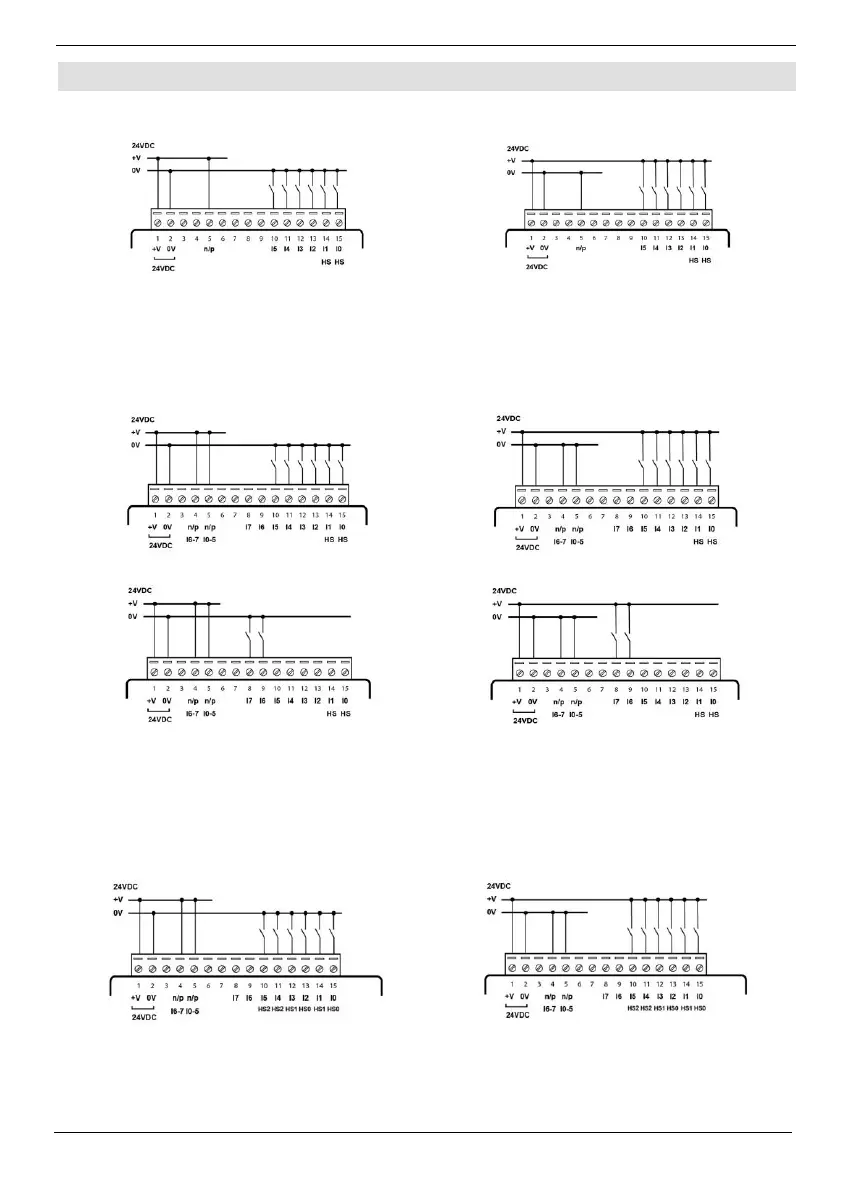

Digital Inputs, Controller’s Power Supply

JZ20-R10/JZ20-J-R10

Input wiring (I0-I5), npn (sink)

Input wiring (I0-I5), pnp (source)

JZ20-R16/JZ20-J-R16

Note: The inputs are arranged in two groups. You can wire one group as npn and the other as pnp,

or wire both groups as npn, or as pnp. In either case, the n/p pins must be connected.

Input wiring (I0-I5), npn (sink)

Input wiring (I0-I5), pnp (source)

Input wiring (I6-I7), npn (sink)

Input wiring (I6-I7), pnp (source)

JZ20-J-R16HS

Note: The inputs are arranged in two groups. You can wire one group as npn and the other as pnp,

or wire both groups as npn, or as pnp. In either case, the n/p pins must be connected.

Input wiring (I0-I5), npn (sink)

Input wiring (I0-I5), pnp (source)
