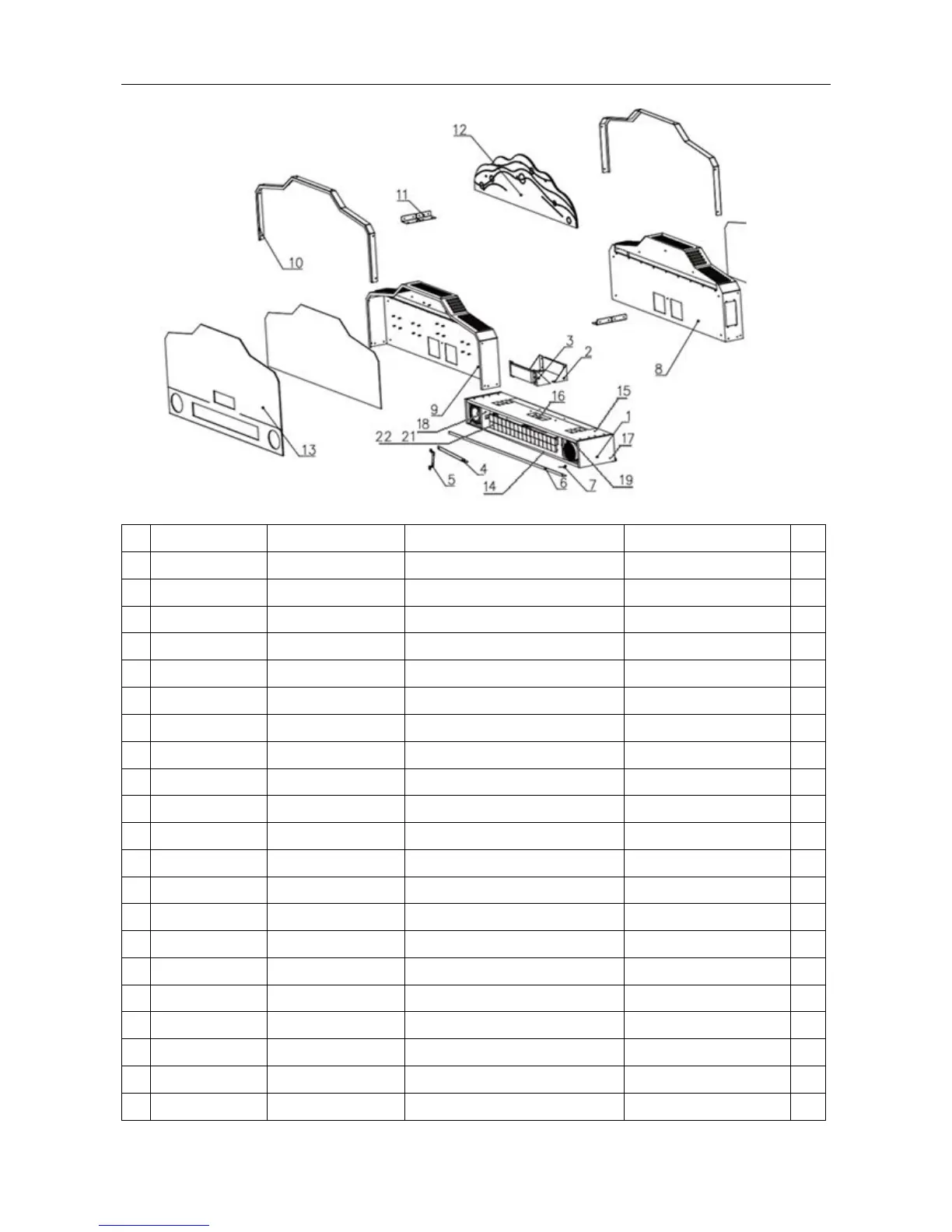

9.2 Marquee Assembly
No.
Part No. Draw No. Name Material Qty
1
P113-002-000
29941122S002A
Marquee frame Assembly 1
2
P113-120-000
20241122S018
Display board fixed plate1 Metal plateδ1.0 2
3
P113-121-000
20241122S013
Display board fixed plate2 Metal plateδ1.0 2
4
P113-122-000
20241122S014
Dot matrix fixed plate Metal plateδ1.0 8
5
P113-123-000
20241122S015
Dot matrix mounted plate Metal plateδ1.0 8
6
P113-124-000
20241122S016
Marquee metal strip Q235 δ1.0 blue 2
7
P113-125-000
20241122S017
Metal strip fixed plate Metal plateδ1.0 6
8
P113-126-000
20241122S022
Marquee 1 Q235 δ1.0 blue 1
9
P113-127-000
20241122S023
Marquee 2 Q235 δ1.0 blue 1
10
P113-128-000
20241122S024
Marquee edge strip Q235 δ1.0 blue 2
11
P113-129-000
20241122S025
Marquee mounted plate Metal plate δ1.5 4
12
P113-605-000
20641122S005
Marquee plastic Transparent plastic 1
13
P113-701-000
20541122S001
Marquee decal Plastic silk screen 1
14
P113-919-000
20341122S017 marquee bottom board MDF blue JQ11038 1
15
P113-920-000
20341122S018
marquee top board MDF blue JQ11038 1
16
P113-921-000
20341122S019
marquee mid plate MDF blue JQ11038 1
17
P113-922-000
20341122S020
marquee sided board MDF blue JQ11038 2
18
P113-923-000
20341122S021
speaker plate MDF blue JQ11038 4
19
P113-924-000
20341122S022
speaker front board MDF 4
20
P113-925-000
20341122S023
Wind tunnel partition 1 MDF blue JQ11038 4
21
P113-926-000
20341122S024
Wind tunnel partition 2 MDF blue JQ11038 4
