Pirate’s Hook 4p Manual
24

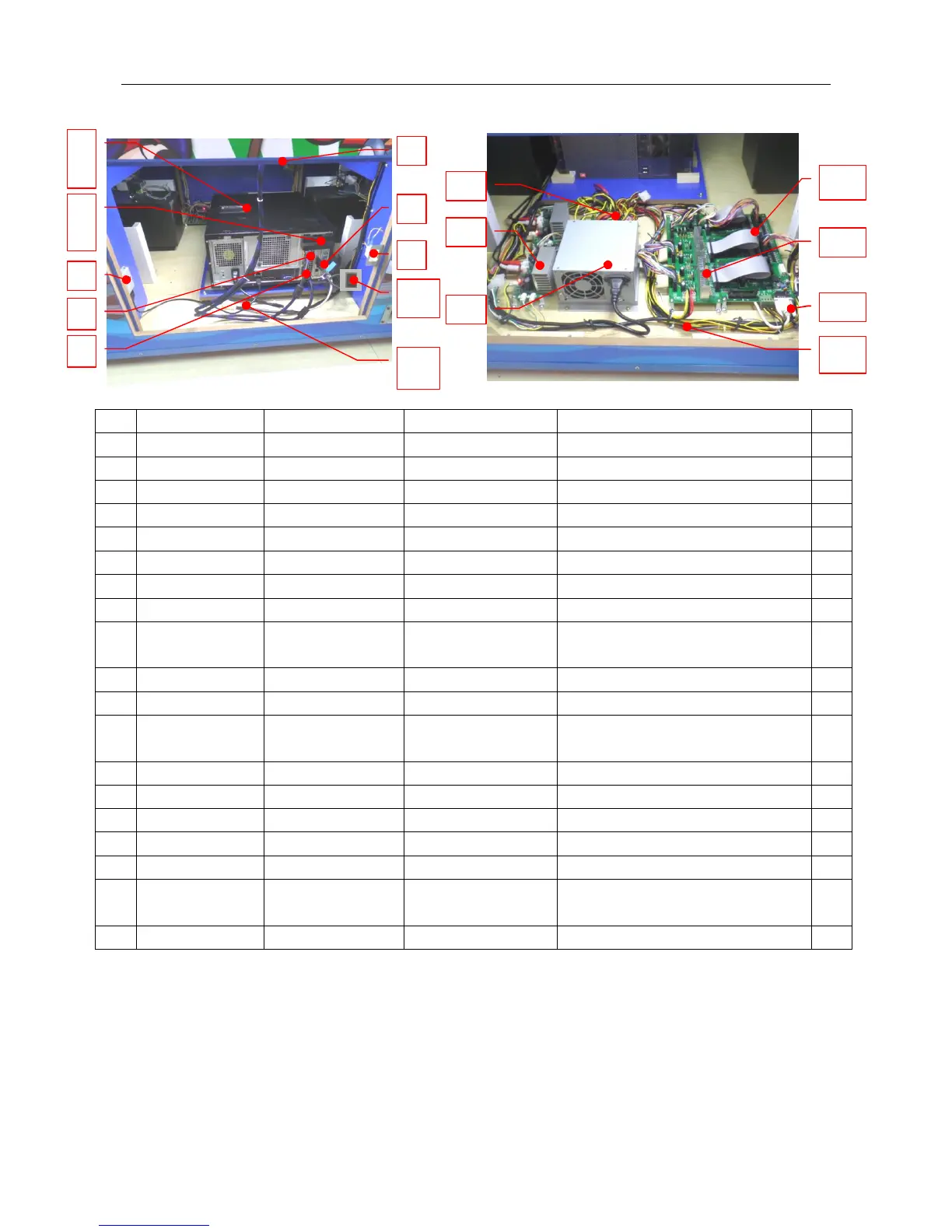

9.2 Electrical Equipment Part:
No.
Part No. Draw No. Name Material Qty
1 P113-454-000
21101000023 Computer DELL 3020 4G memory 1
2 P113-414-000
20741122S003
Sound card
1723，connecter PCI Express x1
1
3 P113-415-000
21107030033 Video card Gigabyte GV-N630D5-1GI 1
4 P113-419-000
20741122S102
Dongle Dongle for pirate’ s hook 1
5 P113-437-000
23307010001 Video cable 1 DVI-HDMI(3.0M) 1
6 P113-436-000
23307020001 Video cable 2 DVI-DVI(3m) 1
7 P113-420-000
22003080004 Inner light W5630-LC20cm-60z/m-DC12V
2
8 P113-439-000
23305000003 Stereo cable 3.5 cable 1.8M 2
9 P113-421-000
22601010003
Gate controlled
SW
SB175 2
10
P113-448-000
22601000042 Big rocket switch R220-1-C5N-BB/NW 1
11
P113-438-000
23304010030 USB cable A type 0.6m,bracket attached 1
12
P113-812-000
29741315001
Power box port
pcb
BTX3039-CH.PCB(V1.1) 1
13
P113-803-000
22803000047 20-A AMP board GC-2.0-A(updated) 2
14
P113-418-000
21602000001 Power box BTX-3039(110V220V universal)
1
15
P113-801-000
20741122S101
IO board Pirate’s hook’s IO board 1
16
P113-805-000
29741122S002
IO extender board
XHD2-CH.PCB(V1.1) 1
17 P113-423-000
23303020002 Serial line DB9F-DB9F(1M) Cross-Over 1
18
P113-449-000
23309000125
Whole game
cable
Pirate’s hook’s sleeve wire 1
19
P113-455-000
21107230001 Serial port card CN-05R33FC 1
12
15
16
13
14
17
18
1
19
2
3
4
5
7
8
9
6
11
10
