PONG Manual
05/16/2019
23

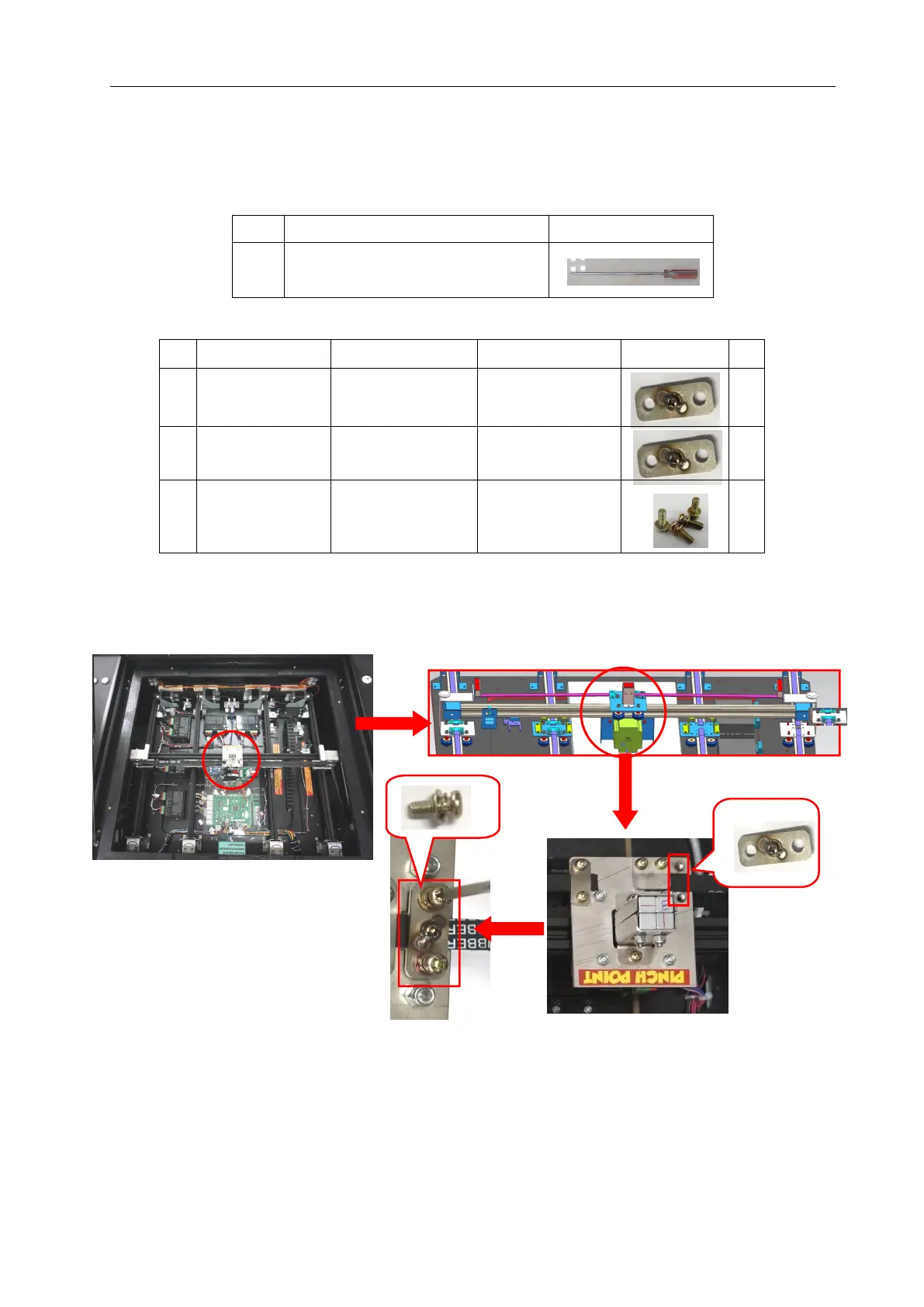

8.7 Belt Tension Adjustment Instruction for Y Axle
If noise is heard from the tracks inside the machine, one of the reasons is that the belt has
loosened. Here is the process to tighten the belt.
Before processing with assembly ensure you have the following tool.
Kit list (shipped with game accessories)
Step 1 Follow the 8.3 steps to remove the playfield.
Step 2 Locate ball movement mechanism and place adjust plate A on it. Utilize Phillip's
screwdriver to tighten two screws to fix the adjust plate A to the ball movement mechanism.
Step 3 If the belt is still loose, please remove adjust plate A and install adjust plate B to the ball
movement mechanism. (The installation method is the same as Step 2.)
No.
Name
1
Philip's screwdriver
No.
Part No.
Code
Name
Qty
1
P156-160-000
20211707045A
Adjust plate A
1
2
P156-161-000
20211707046A
Adjust plate B
1
3
P156-324-000
20101020034
Cross recessed
pan head screw
set
2
