8.8 Belt Tension Adjustment Instruction for X Axles
Before processing with assembly assure you have the following tools.
NO.
Name
1
Phillips screwdriver
2
Wrench(8mm)
Kit list:
NO.
Name
1
Block

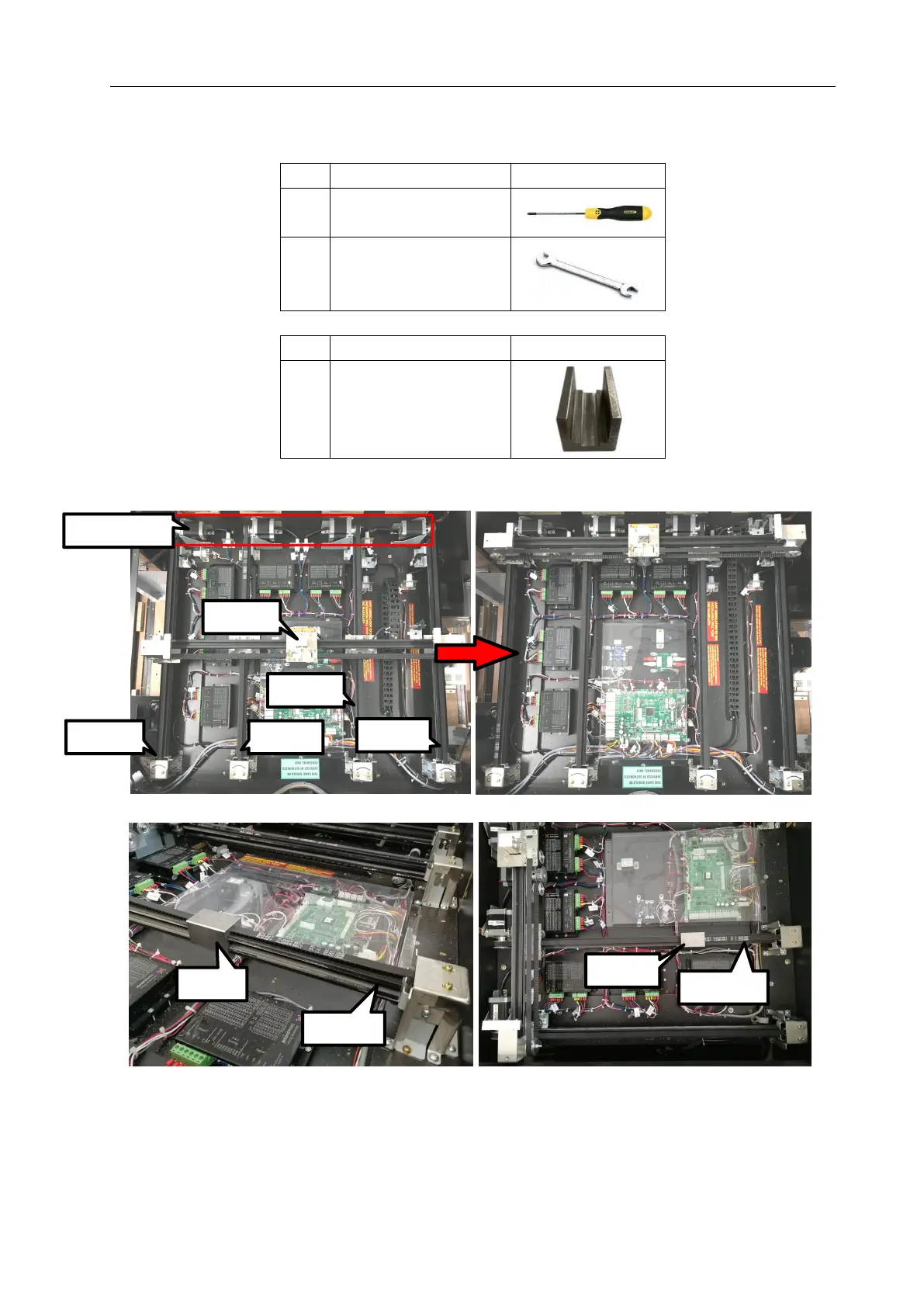

Step 1 Follow the 8.6 steps to remove the playfield. Move Y axle to motor side.
Step 2 Locate one X axle. Place the block in the middle of the X axle.
Y axle
X axle
X axle
X axle
X axle
Motor side
Block
X axle
X axle
Block
