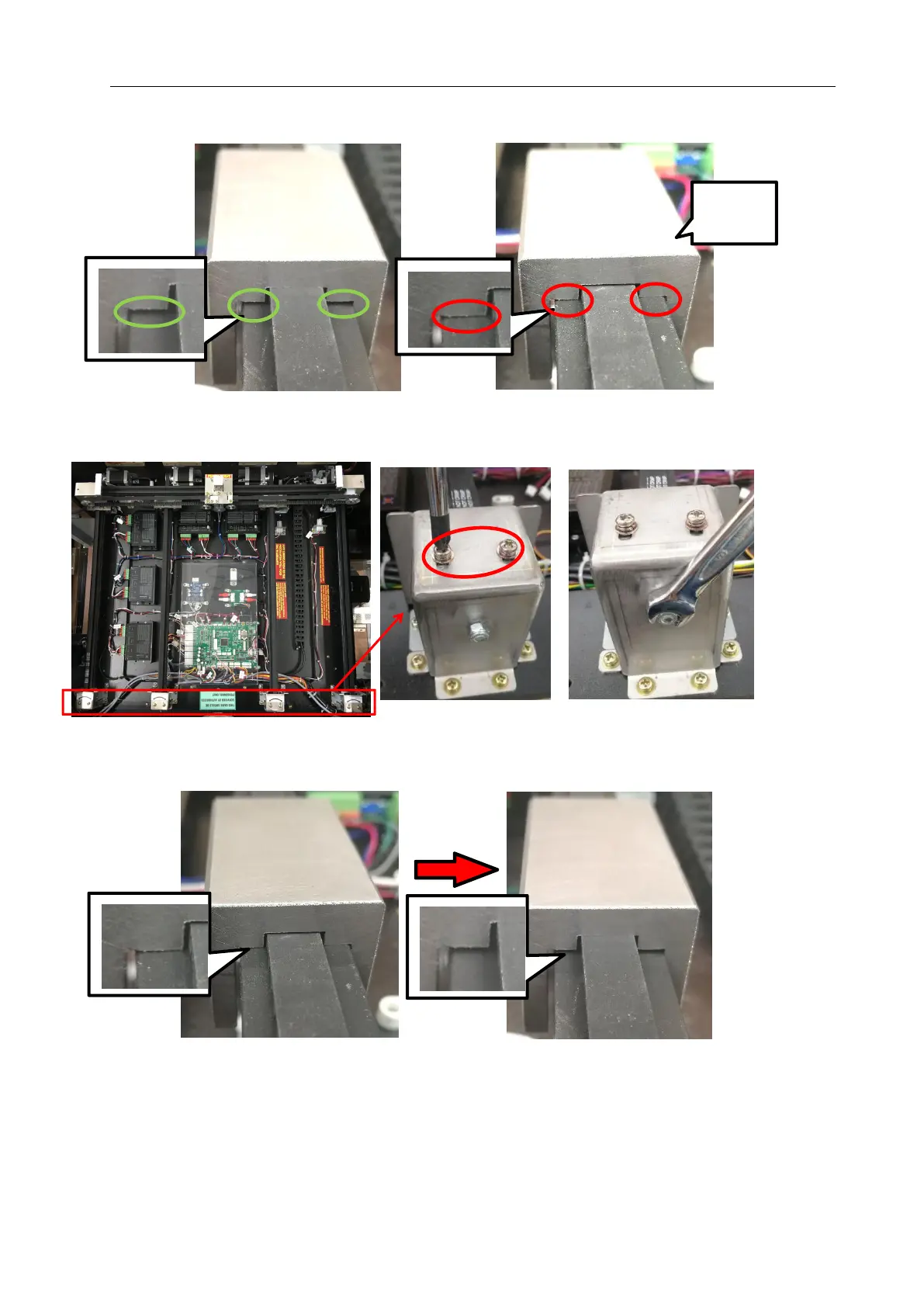

Step 3 Check if the block is slightly above the X axle (within 0.04inch). If it is, don’t adjust
the belt; if it touches the X axle, adjust the belt.
Step 4 To adjust: Utilize Phillips screwdriver to loosen the screws a bit. Utilize the wrench to
adjust the nut on the side.
Step 5 To adjust: Pay attention to the block when turning the wrench clockwise. Stop
turning the wrench when the block is slightly raised (within 0.04 inch above the X axle). If
the block is raised too much, the belt will be too tight.
Step 6 To adjust: Remove the block and tighten the screws in Step 4.
The adjustment method for all the 4 X axles is the same.
