Universal Space TreaSure Cove - Backboard Component Assembly

Treasure Cove Manual
01/22/2019
44

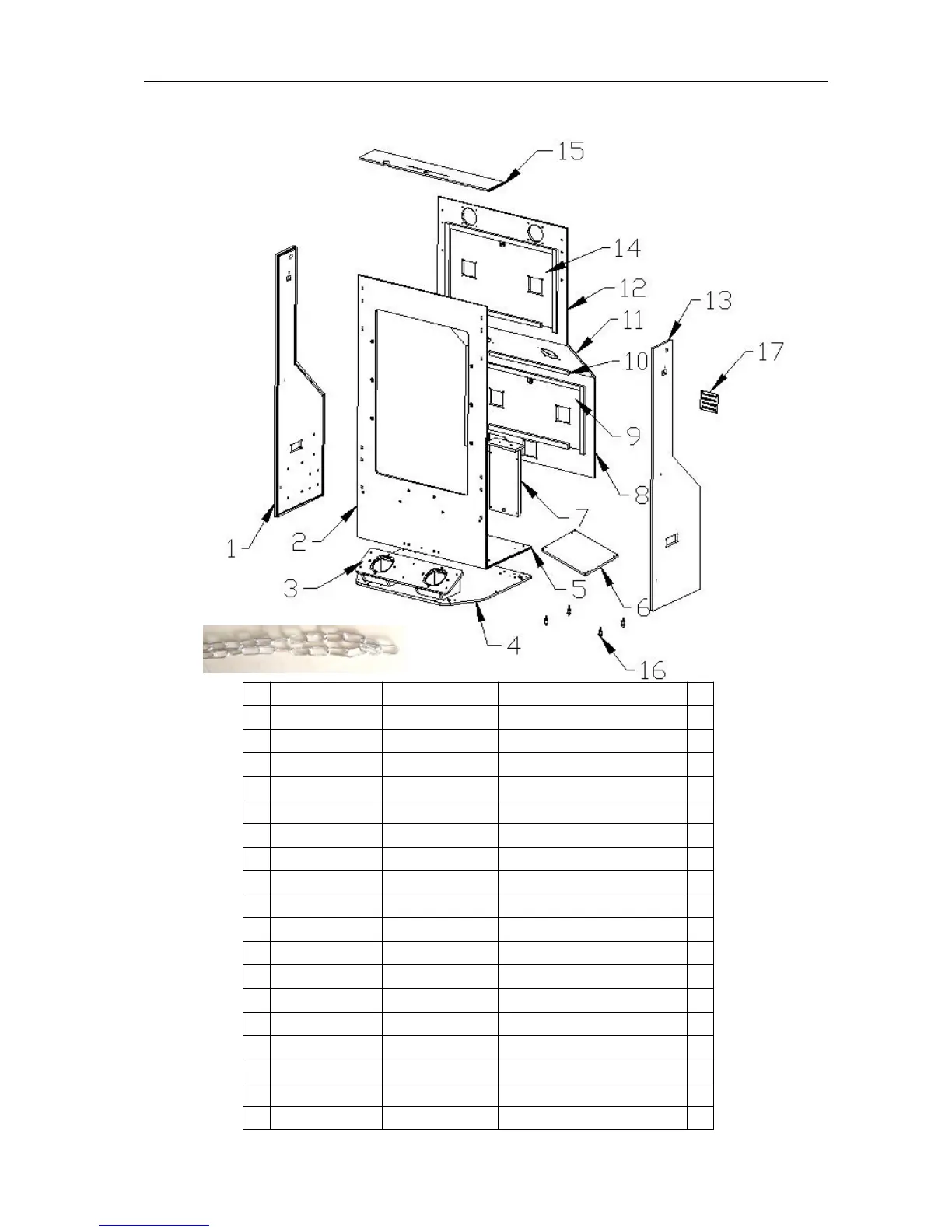

9. OVERALL CONSTRUCTION
9.1 Backboard Assembly
No.
Part No.
Code No.
Name
Qty
1
T143-524-000
20341808020
L side plate
1
2
T143-526-000
20341808022
Front plate
1
3
T143-534-000
20341808029
Speaker box
1
4
T143-523-000
20341808002
Bottom base plate
1
5
T143-527-000
20341808003
Base plate
1
6
T143-535-000
20341808030
PC mounting plate
1
7
T143-537-000
20341808004
Jack support plate
1
8
T143-528-000
20341808023
Back bottom plate
1
9
T143-529-000
20341808024
Back bottom door
1
10
T143-536-000
20341808031
Strengthening bar
1
11
T143-530-000
20341808025
Back middle plate
1
12
T143-531-000
20341808026
Back top plate
1
13
T143-525-000
20341808021
R side plate
1
14
T143-532-000
20341808027
Back top door
1
15
T143-533-000
20341808028
Top plate
1
16
T143-178-000
26000012000
Shakeproof screw A
4
17
T143-179-000
26000014000
Window shades
2
18
T143-120-000
26302010008
Stainless steel chain
2
