Chapter 4 System Disassembly
340S2 44
Rev : B

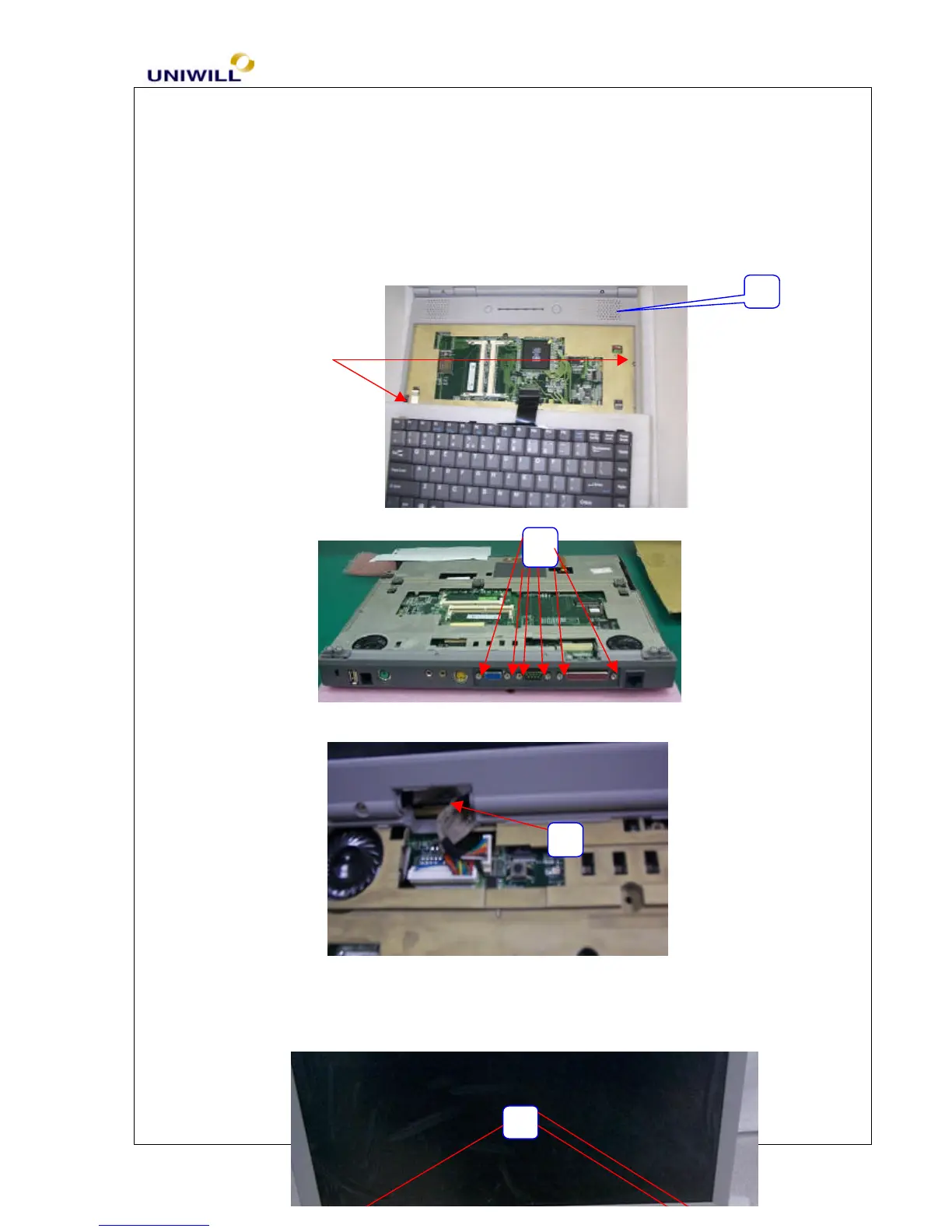

8. Remove SCREWS and disassemble TOP Cabinet Assembly (#9).
SCREWS
9. Unscrew the HEX*6 (#10) from the I/O bracket.
10. Unscrew SCREW (#11) of the LCD ground cable.
11. Disconnect LCD CABLE and INVERTER CABLE.
12. Unfasten SCREWS*4 (#12) of the HINGES and disassemble LCD MODULE.
10
9
11
12
