Uniwill 340S2 - Page 45

Chapter 4 System Disassembly
340S2 45
Rev : B

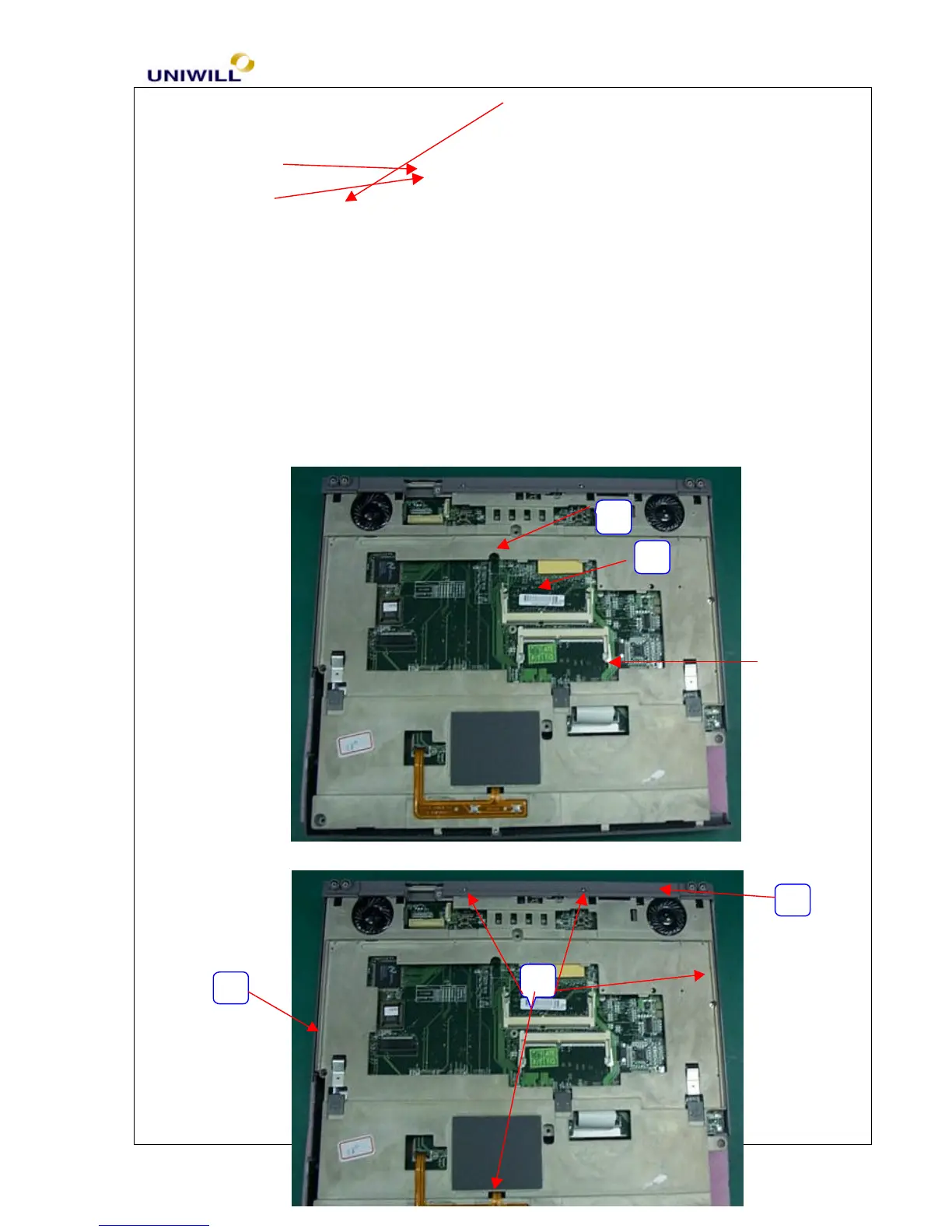

13. Disassemble the RAM Module from the RAM socket (#13)
14. Disconnect the FDD FPC from the M/B.
15. Disassemble the CDROM after removing the SCREW (#14)
16. Unscrew SCREWS*4 (#16) and SCREW*1 (#17) of the case.
17. Disassemble COVER HINGE FRAME (#15).
LCD Cable
Inverter Cable
14
13
FDDFPC
16
17
15
