2 INSTALLATION
Open the siren enclosure by unscrewing the front locking screw;
Break the piercing arrangements for cable passage and
fasten the siren to the wall using the provided holes;
Perform connections and programming; use anti-tamper
shielded multi-pole cables;
Lift the micro preventing opening/removal (A) after having
freed it from the adhesive band that blocks it. The screw on
which the micro rests is factory calibrated so that the lever,
when there is a cover, closes the contact. If this is not the
case (due to bearing wall irregularities), screw or unscrew
the screw as much as necessary. Close the micro again (B).
Insert the battery into the housing and connects the fastons: red wire to positive, black wire to
negative.
The siren performs the initial test (LEDs are turned on for an instant and a beep is emitted),
after that flash LEDs start blinking. Under this condition, the siren does not sound (initial block
function). The arrangement for the correct operation will occur after having applied the “AL” and
“S” block signals.
Use screened multipole cable for burglar alarm systems.

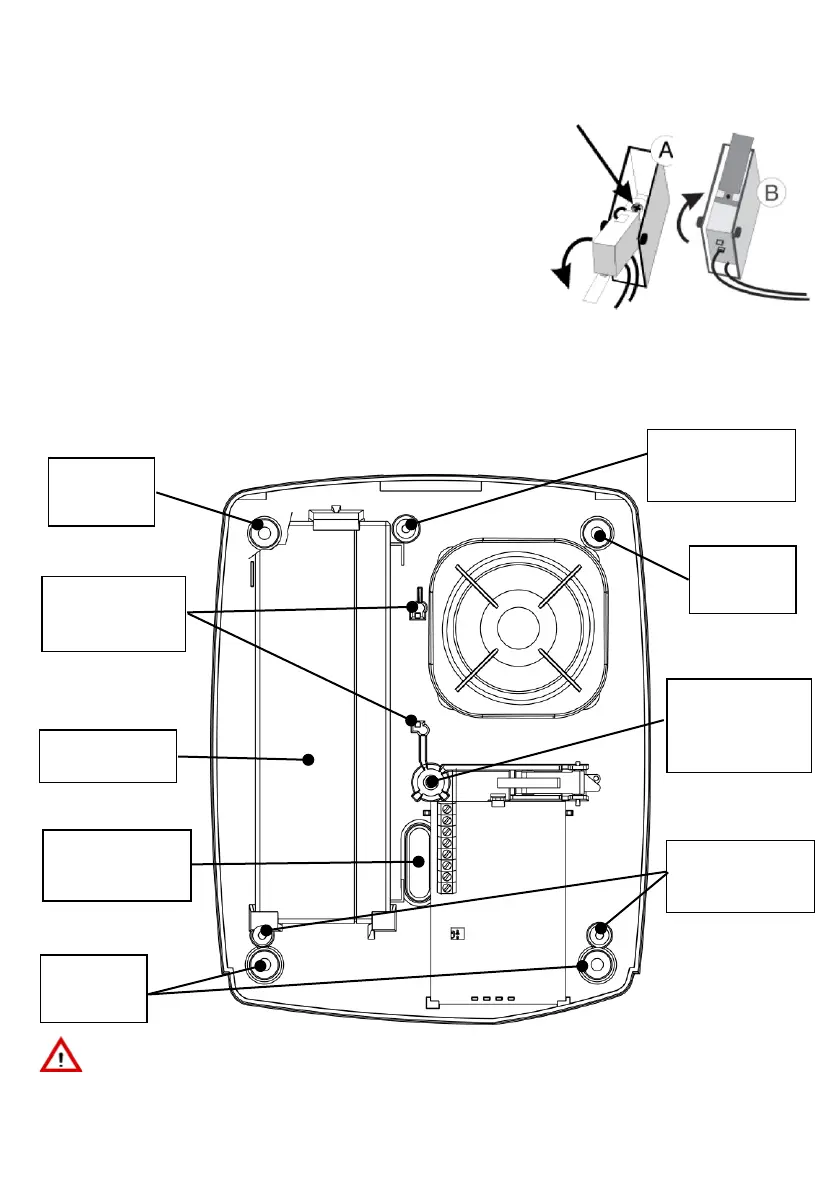

Pre-setting
for protection
module
Cables passage
piercing
arrangem.
Drilled riser
for securing
internal cage
Drilled riser
for securing
external cover
Drilled risers
for securing
internal cage
