7
ENGLISH
Problem Cause
Solution
Jack will not lift to full
height.
Low oil level. Add hydraulic fluid as needed.
Jack will not hold load. Low oil level.
The pumping system is not operating
correctly.
Add hydraulic fluid as needed.
Replace the pumping system.
Lift arm will not lower. More fluid in the jack reservoir than
is needed.
Drain to the level indicated in the fill hole, to do this,
remove the rubber plug.
Jack feels spongy when
lifting.
See air purge section. See air purge procedure.
POSSIBLE PROBLEMS AND SOLUTIONS

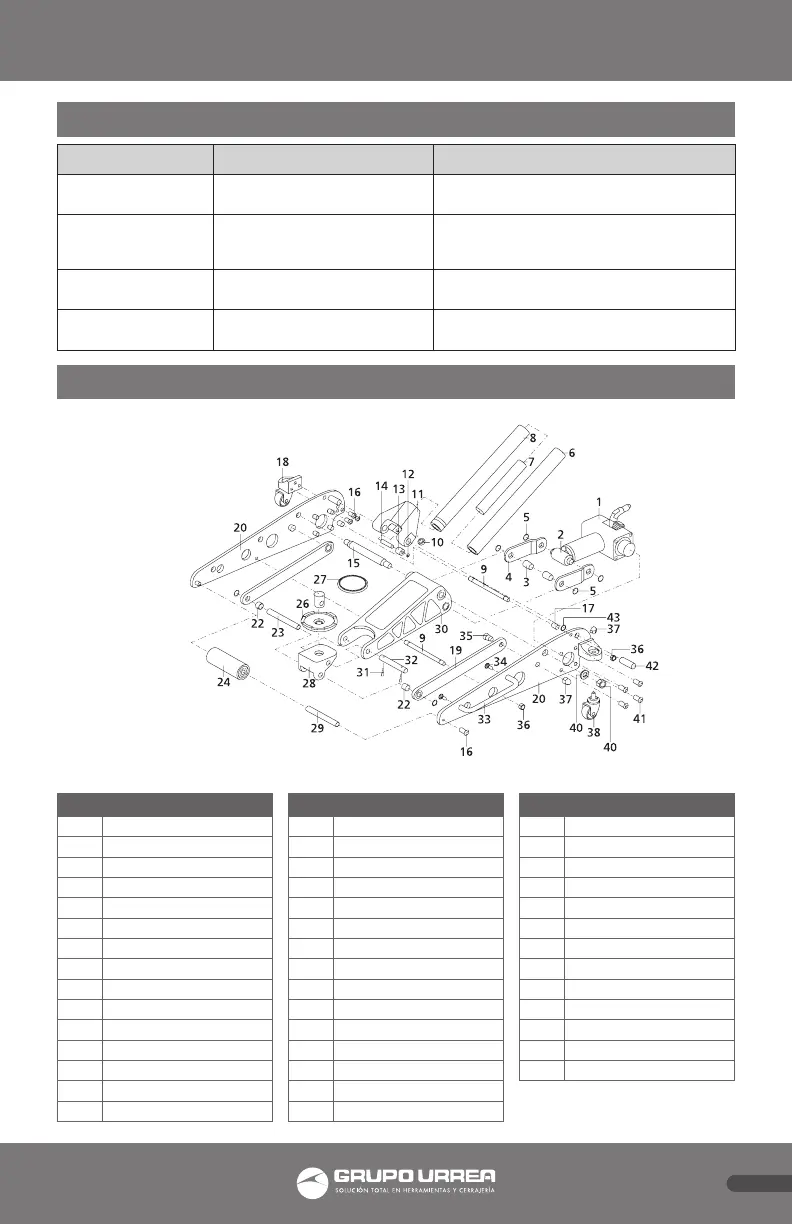

PART LIST
#
Description
1 Power unit assembly
2 Coupling connector
3 Pin for return rod
4 Return rod
5 Spring washer
6 Uper handle
7 Conector tube
8 Lower handle
9 Shaft for side plate
10 Handle socket screw
11 Washer 10
12 Handle socket
13 Wheel
14 Wheel pintle
15 Supporting shaft
#
Description
16 Bolt
17 Rubber pad
18 Wheel stand
19 Conecting rod
20 Side plate
21 Lock washer 14
22 Cylinder sleeve
23 Conecting rod pintle.
24 Front wheel
25 Saddle shaft
26 Saddle
27 Rubber ring
28 Saddle base
29 Lifting arm assembly
30 Lifting arm
#
Description
31 Rivet
32 Shaft for saddle base
33 Side handle
34 Nut for side handle
35 Shaft for connecting rod
36 Nut
37 Nut
38 Caster assembly
39 Washer
40 Hexnut
41 Bolt
42 Shaft for handle socket
43 Lock waher
