USB 3451 / 3461 / 3471 / 3481

Car Power Amplifier

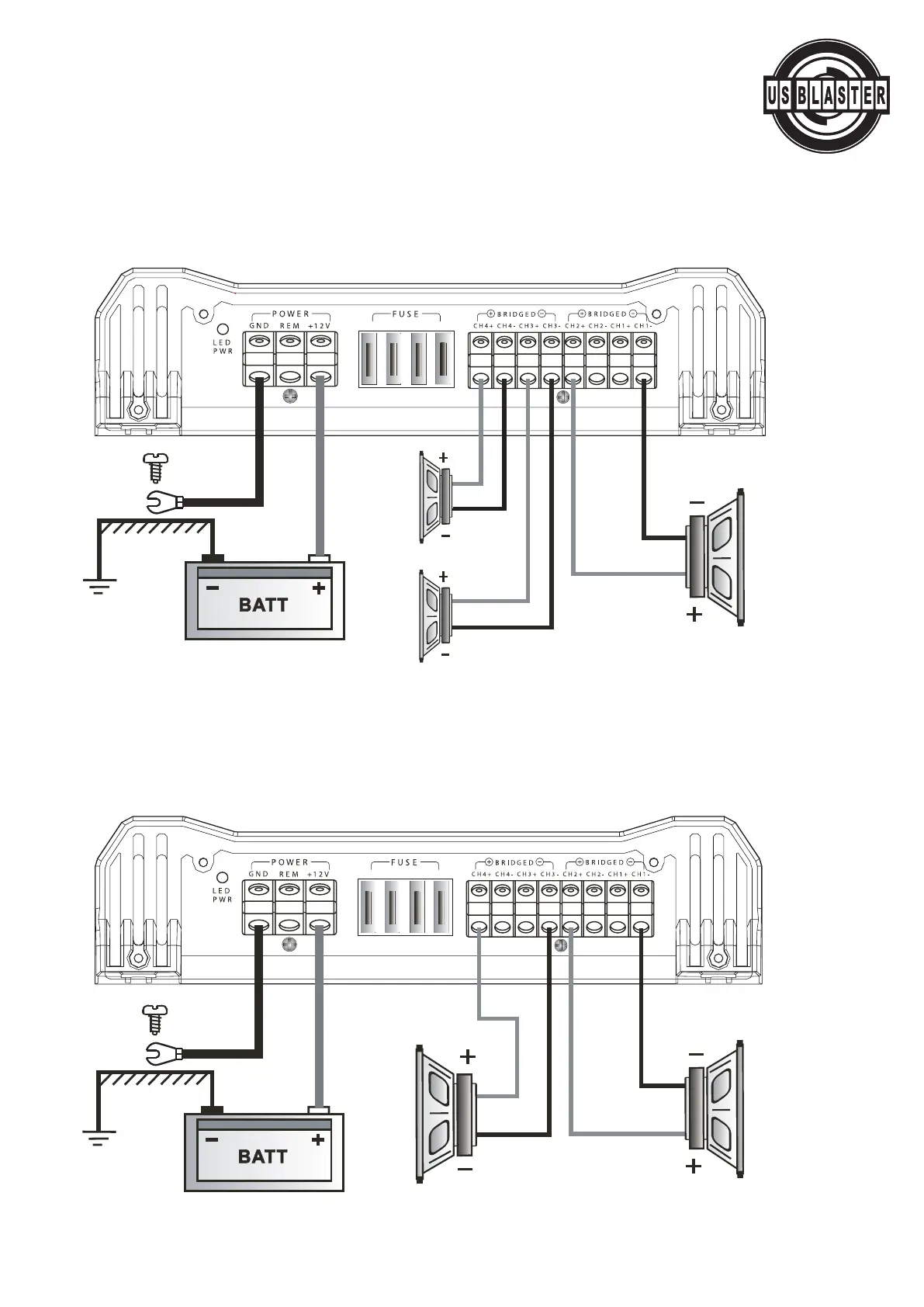

SYSTEM WIRING

3-CHANNEL BRIDGED MODE CONFIGURATION

SYSTEM WIRING

2-CHANNEL BRIDGED MODE CONFIGURATION

Connect to chassis

ground of vehicle*

Connect to chassis

ground of vehicle*

SPEAKER IMPEDANCE 4~8 Ohm

SPEAKER 2~4 Ohm

SPEAKER 4~8 Ohm
