USB 3451 / 3461 / 3471 / 3481

Car Power Amplifier

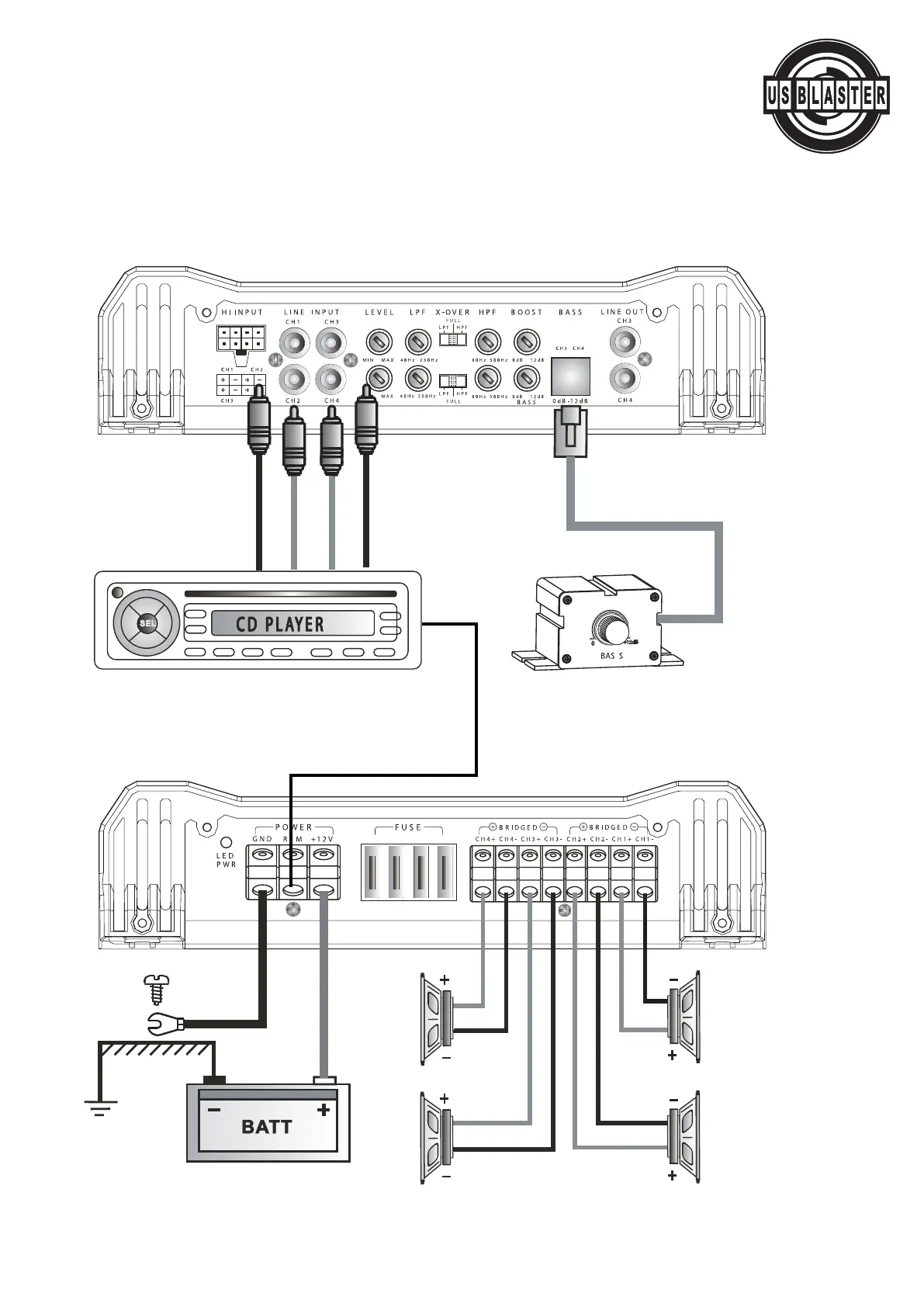

SYSTEM WIRING

4-CHANNEL STEREO CONFIGURATION

Connect to remote

turn-on lead of

source unit.

Connect to chassis

ground of vehicle*

SPEAKER IMPEDANCE 2~4 Ohm
