USB 7015
Console mixer

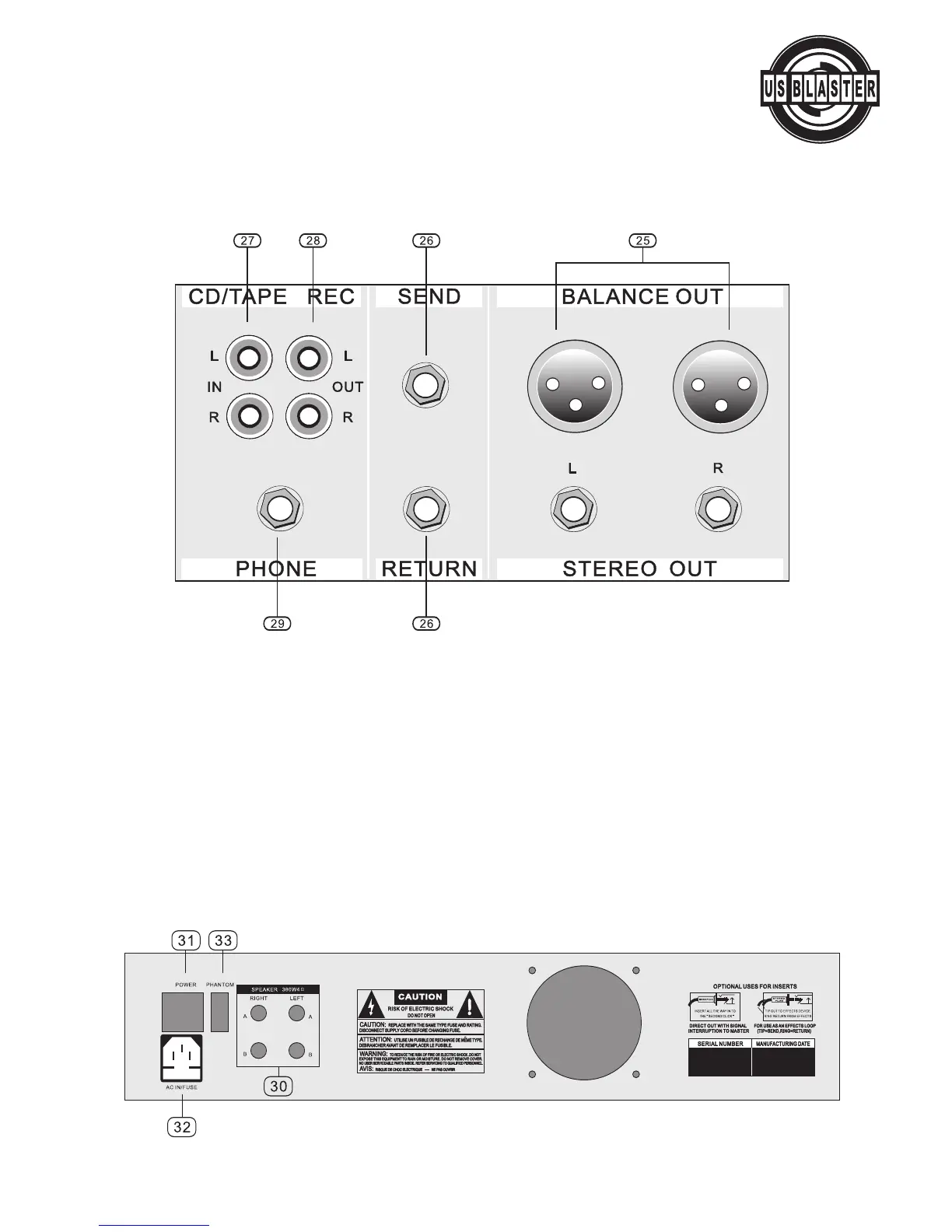

POWER SECTION
30. SPEAKER JACK
31. POWER SWITCH
Push to turn mixer on. The LED (SEE NO,33) will be turned on when working
32. POWER JACK
Connect your power cord here.
33.PHANTOM
Pressing this switch applies 48V DC across all microphone input channels connectors for remote powe-
ring of condenser microphones.
