RS232 Serial
TTL UART
TO Ethernet TCPIP convert Module www.usr.cn
Jinan USR Technology Co., Ltd. Page 18 of 26 sales@usr.cn

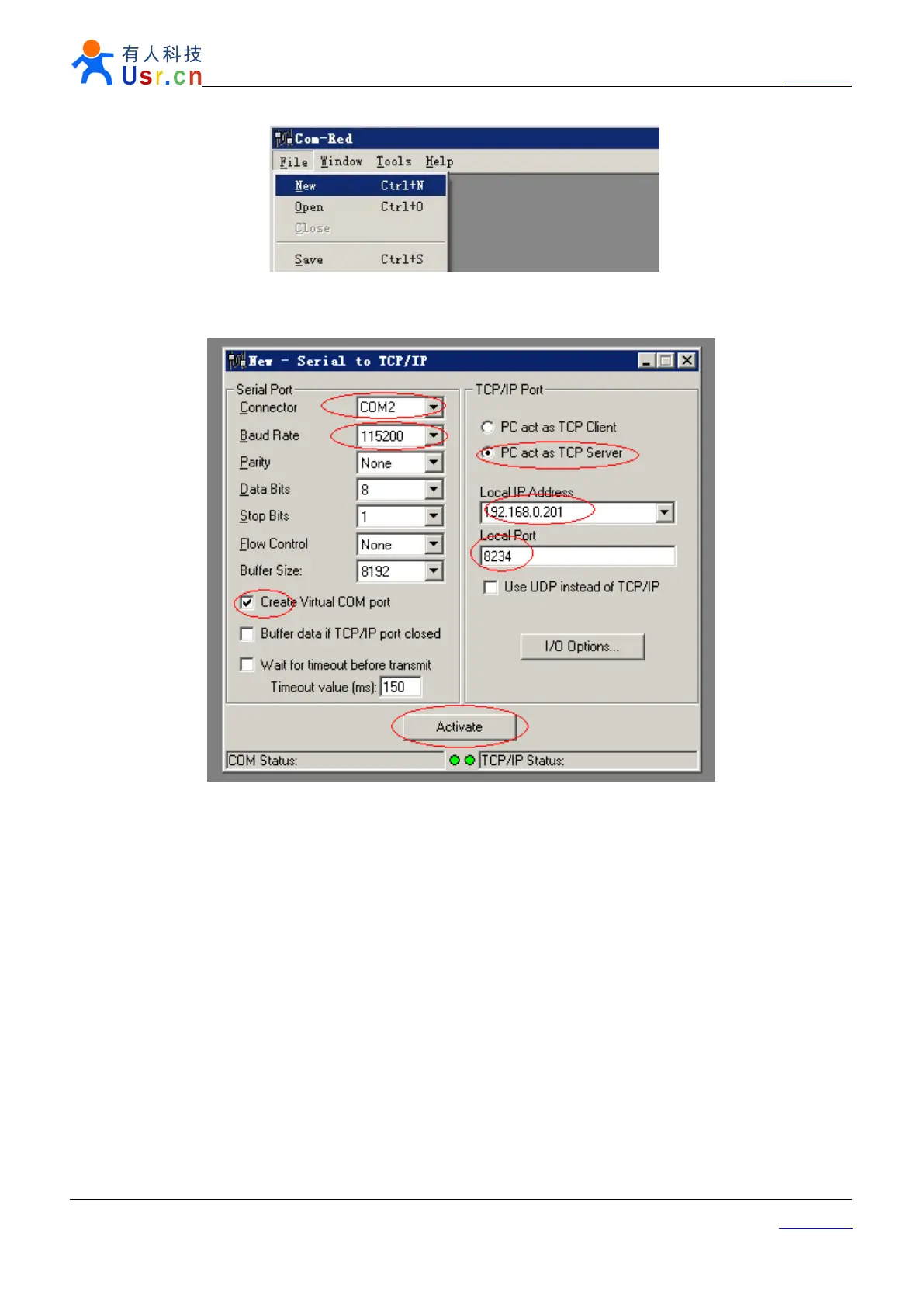

4 . Setup as the follow pictures, you need to notice COM port, bond rate and work mode of PC, then click
Activate
Activate
Activate
Activate .
5 . After Activate click, a Virtual COM port COM2 , will be created, COM2 will receive data from TCP IP socket,
and send data to COM2 will convert to TCPIP socket data to remote Equipment .
If create failed, please notice to see error notice and log, when use Virtual COM Port, you should close other
software who use the same TCPIP port.
The success picture as follow:
