USSC AV15E - General Assembly Instructions; Polarized Plug

6
General Assembly Instructions

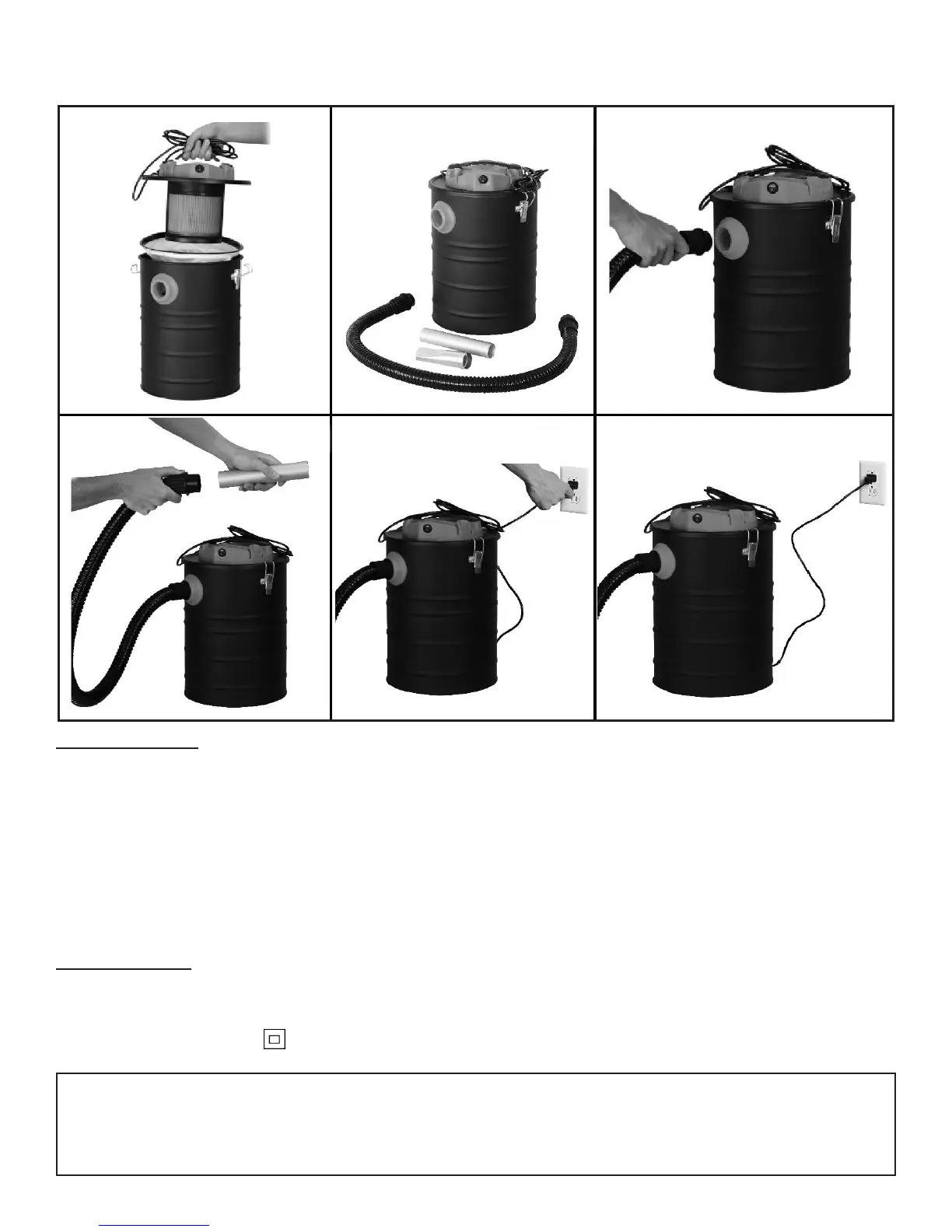

INITIAL ASSEMBLY
1. Remove the Ash Vacuum from the box.
2. Fig. 1 Unlock the latches and remove the power head lid.
3. Remove the contents from inside the container and make sure you have all the parts listed on page 5.
4. Fig. 2 Place the pre-lter over the tanks as previously installed. Replace the power head lid on the container
and secure the lid with the latches.
5. Fig. 3 Insert the locking end of the hose onto the vacuum port and rotate ¼ turn counter-clockwise.
6. Fig. 4 Insert the metal nozzle onto the other end of the hose.
7. Fig. 5 & 6 Plug in the power cord and turn the vacuum cleaner power switch on.
8. Run the unit for 30 seconds after you have nished cleaning your stove or replace to ensure all materials are
safely captured in the container.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a double polarized plug (one with the blade wider than
the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the
plug. If it still does not t, contact a qualied electrician to install the proper outlet. Do not change the plug in
any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power
supply system.
WARNING: Be sure to read, understand, and apply information, entitled ‘Safety Instructions & Warnings’. Do
not vacuum in areas with ammable gases, vapors, or explosive dusts in the air. Flammable gases or vapors
include but are not limited to; lighter uid, solvent type cleaners, oil-base paints, gasoline, alcohol or aerosol
sprays. Explosive dusts include but are not limited to; coal, magnesium, grain or gun powder. To reduce the
risk of health hazards from vapors or dust, do not vacuum toxic materials.
FIG. 1
FIG. 4
FIG. 2
FIG. 5
FIG. 3
FIG. 6
