UTEPO UTP7201GE-PSE60 - Specifications; Troubleshooting; RJ45 Making Method

连接 接口

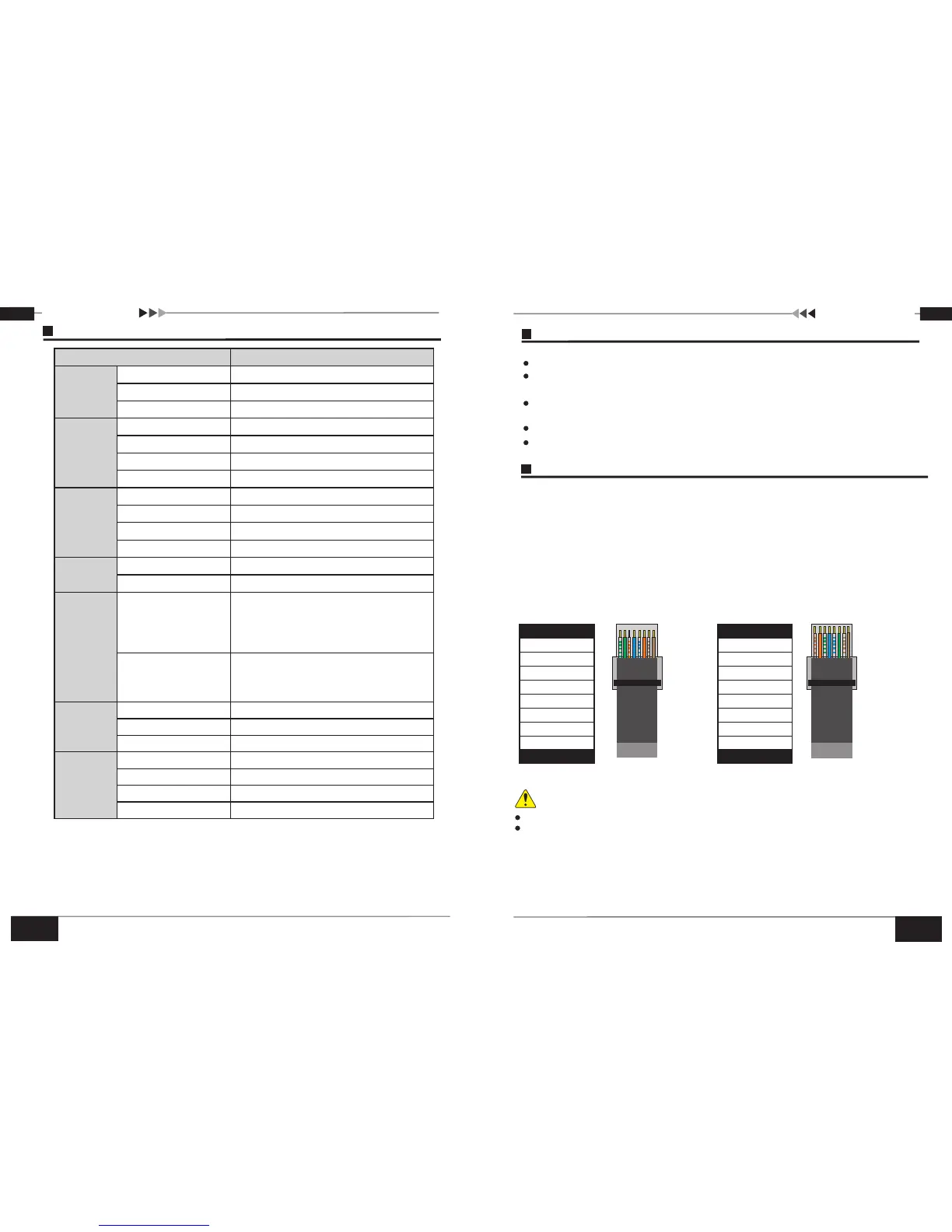

Specification
Item
Description
Interface
Input Voltage
AC100V~AC240V
Data Input
1×RJ45
PoE output
1×RJ45
PoE
PoE Power Supply Type
End-span/Mid-span
PoE Power Output
DC 54V/60 watts
Output Ripple
＜5%
Power Pin Assignment
Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+)
Ethernet Port
Communication Port
1×RJ45 Input
TransmissionRate
10/100/1000Mbps
Transmission Medium
Cat5/5e/6 Cable
Distance
100m (Max.)
Status
Power LED
1 (Red)
PoE LED
1 (Orange)
Protection
Surge Protection
P Power：1KV(Differential Mode),2KV(Common
Mode)1.2/50us，8/20us
Ethernet：2KV(Differential Mode),6KV(Common
Mode)10/7000us
oE
ESD
1a Contact Discharge Level 3
1b Air Discharge Level 3
Per: IEC61000-4-2
Environment
Working Temperature
- ℃10 ~55℃
Storage Temperature
-40 ~85℃℃
Humidity(Non-condensing)
0~90%
Mechanics
Dimension(LxWxH)
160mm×64mm×60mm
Material
ABS Plastics
Color
Black
Weight
200g
Product specifications subject to change without prior notice
3
4
Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should
conform with EIA/TIA568A or 568B.
1) Please remove 2cm long the insulating layer, and bar the 4 pairs UTP cable;
2) Separate the 4 pairs UTP cable and straighten them;
3) Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
4) Cut off the cables to leave 1.5cm bare wire;
5) Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
6) Use the wire crimper to crimp it;
7) Repeat above 5 steps to make the another end;
8) Using network tester to test the cable whether is working.
RJ45 Making Method
pin color
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
1
2
3
4
5
6
7
8
pin color
1
2
3
4
5
6
7
8
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
EIA/TIA 568A
EIA/TIA 568B
When choose RJ-45 make sure if one end is EIA/TIA568A,the other end should also be EIA/TIA568A.
When choose RJ-45 make sure if one end is EIA/TIA568B,the other end should also be EIA/TIA568B.
Notice
PoE Injector
Trouble Shooting
If any trouble in installation, please follow these steps
Please make sure you have followed the instruction to install the device;
Please confirm if the RJ45 cable order is in accordance with the EIA/TIA 568A or 568B
industry standard;
The power supply of PoE port is no more than 30W; please do not connect the network device
whose power consumption is over 30W;
Please replace a failure device with a proper one to check if the device is broken;
If the problem still exist, please contact the local dealer.
PoE Injector
