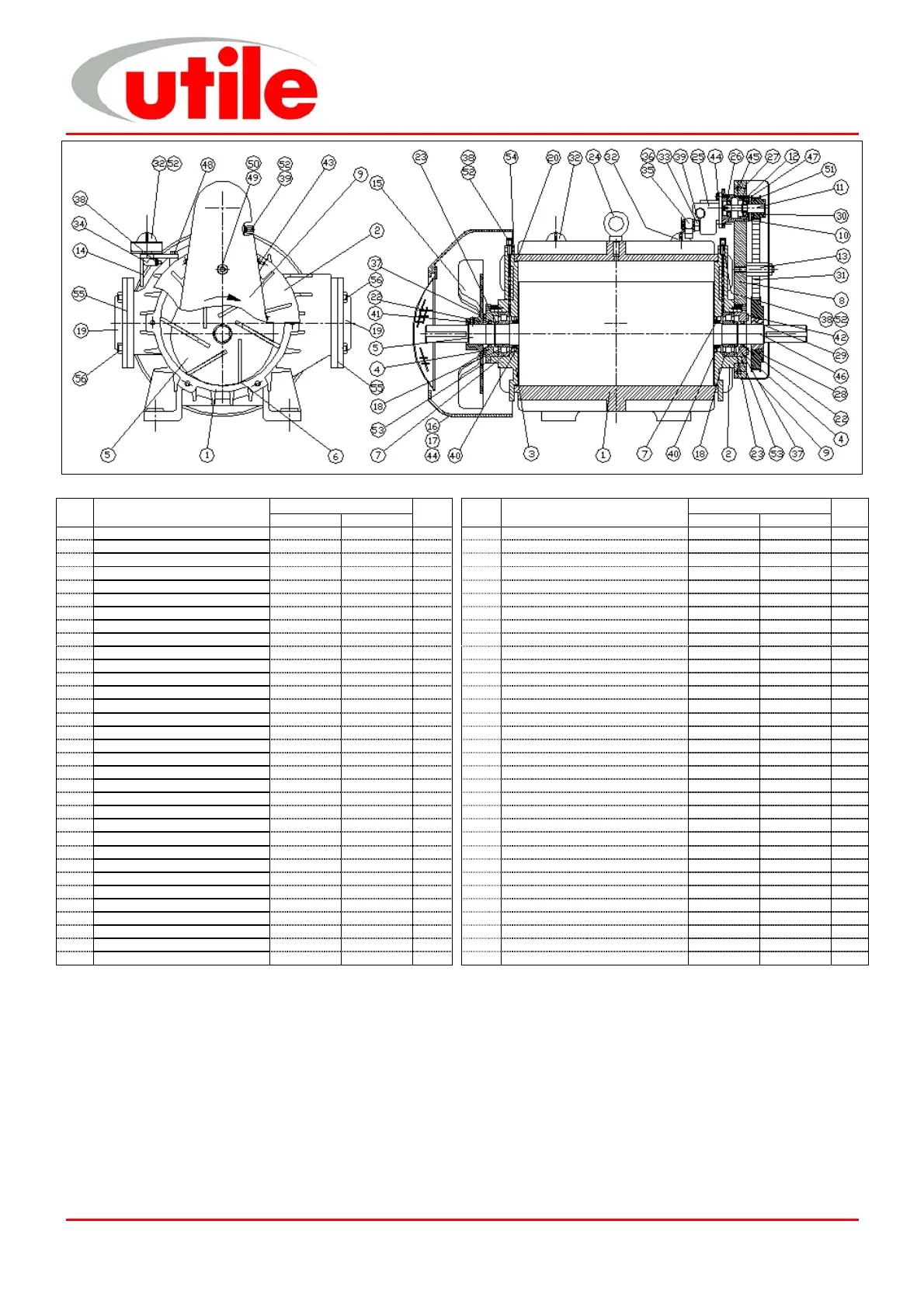

Utile L240 - Parts List

The Utile Engineering Co. Ltd. 29/06/05
Irthlingborough, Northamptonshire. England
Tel: +44 (0) 1933 650216
Fax: +44 (0) 1933 652738 15 IC129
PART NUMBER PART NUMBER
No. DESCRIPTION
L240 L320
QTY No. DESCRIPTION
L240 L320
QTY
1 CYLINDER S 8800/3 S 8800/3 1 34 HOBBS ELBOW R 1168 R 1168 2
2 COVERPLATE – DRIVE END S 8801/2 S 8801/2 1 35 BANJO CONNENCTOR / NRV R 1044 R 1044 2
3 COVERPLATE – REAR END S 8801/1 S 8801/1 1 36 REDUCING CONNECTOR S 8958/2 S 8958/2 2
4 ENDCAP S 8968 S 8968 2 37 CIRCLIP B 1048 B 1048 2
5 ROTOR/SHAFT ASSEMBLY S 9605/1 S 9605/2 1 38 TUBING NUT R 1152 R 1152 8
6 BLADE S 8808/1 S 8808/2 6 39 SPRING WASHER U 1018 U 1018 3
7 SEAL SLEEVE S 8809 S 8809 2 40 BEARING SEAL F 1067/V F 1067/V 2
8 SUPPORT PLATE S 8965 S 8965 1 41 HOLLOW SOCKET SET SCREW G 1165 G 1165 1
9 GUARD S 8966 S 8966 1 42 HEX HEAD SCREW G 1068 G 1068 8
10 HOUSING – OIL PUMP S 8687 S 8687 1 43 HEX HEAD SCREW G 1131 G 1131 12
11 SHAFT – OIL PUMP S 8683 S 8683 1 44 HEX HEAD SCREW G 1072 G 1072 2
12 ENDCAP – OIL PUMP HOUSING S 8688 S 8688 1 45 SOCKET HEAD CAP SCREW G 1059 G 1059 2
13 GUARD SUPPORT COLUMN S 7061 S 7061 1 46 KEY N 1031 N 1031 1
14 SUPPORT BAR S 8971 S 8971 1 47 CSK SCREW G 1052 G 1052 3
15 FAN S 8976/4 S 8976/4 1 48 HEX HEAD SCREW S 8972 S 8972 1
16 FANCOWL ASSEMBLY S 8981 S 8981 1 49 PLAIN WASHER U 1027 U 1027 1
17 FANCOWL SUPPORT S 8989 S 8989 3 50 NUT B 1044 B 1044 1
18 ROLLER BEARING H 1029 H 1029 2 51 THRUST WASHER B 1066 B 1066 1
19 FLANGE M 1055 S 8014/1 2 52 ADAPTOR R 1098 R 1098 3
20 O-RING F 1071 F 1071 2 53 GASKET – END CAP S 8544/2 S 8544/2 2
21 NAMEPLATE (NO SHOWN) SK 2643 SK 2643 2 54 GASKET - COVERPLATE K 1033 K 1033 2
22 SHAFT SEAL F 1089/V F 1089/V 2 55 GASKET – FLANGE K 1015 K 1015 2
23 BEARING RETAINING WASHER S 8810 S 8810 2 56 HEX HEAD SCREW G 1086 G 1086 8
24 EYE BOLT A 1013 A 1013 1
25 OIL PUMP T 1013 T 1013 1
26 SEALED BALL BEARING H 1052 H 1052 2
27 CIRCLIP B 1065 B 1065 2
28 TIMING PULLEY - DRIVE P 1035 P 1035 1
29 BUSH –TIMING PULLEY- DRIVE P 1035/B P 1035/B 1
30 TIMING PULLEY - DRIVEN P 1028 P 1028 1
31 TIMING BELT P 1026 P 1026 1
32 OIL DRIP INDICATOR S 8899 S 8899 2
33 STEM ADAPTOR S 8912/1 S 8912/1 2
