Installation Guide
You Mirror Cabinet
Important Information
• Read the instructions carefully.
• Check the product for any signs of damage and remove any protective film.
• It is recommended that this product is fitted by a suitably qualified Part P registered
electrician in accordance with current IEE & Building Regulations.
• It is the installer’s responsibility to carry out a thorough assessment of wall type and the
weight of the cabinet and use appropriate fixings.
• Care should be taken when drilling walls to avoid any hidden wires or pipes.
• To prevent the cabinet falling down this product must be fixed using the wall attachment
device provided.
• The light source in this luminaire is not replaceable. When the light source reaches its
end of life, the whole luminaire must be replaced.
• The terminal block used to connect the leads to the electrical supply can be of either the
screw- or screw-less type and should be rated at 240V 6A with 4 terminals. The cable
tails do not need to be crimped when connected to the terminal block.
• The driver can be screwed to the internal top rail of the cabinet or left to hang in the void
between the cabinet and the wall.
• This product should be used only with a mains supply that is protected by a 30mA
Residual Current Device.
• This product is IP20 Rated and is only suitable for installation in Outside Zones in a
bathroom. It is not suitable to be fitted in zones 0, 1 or 2.

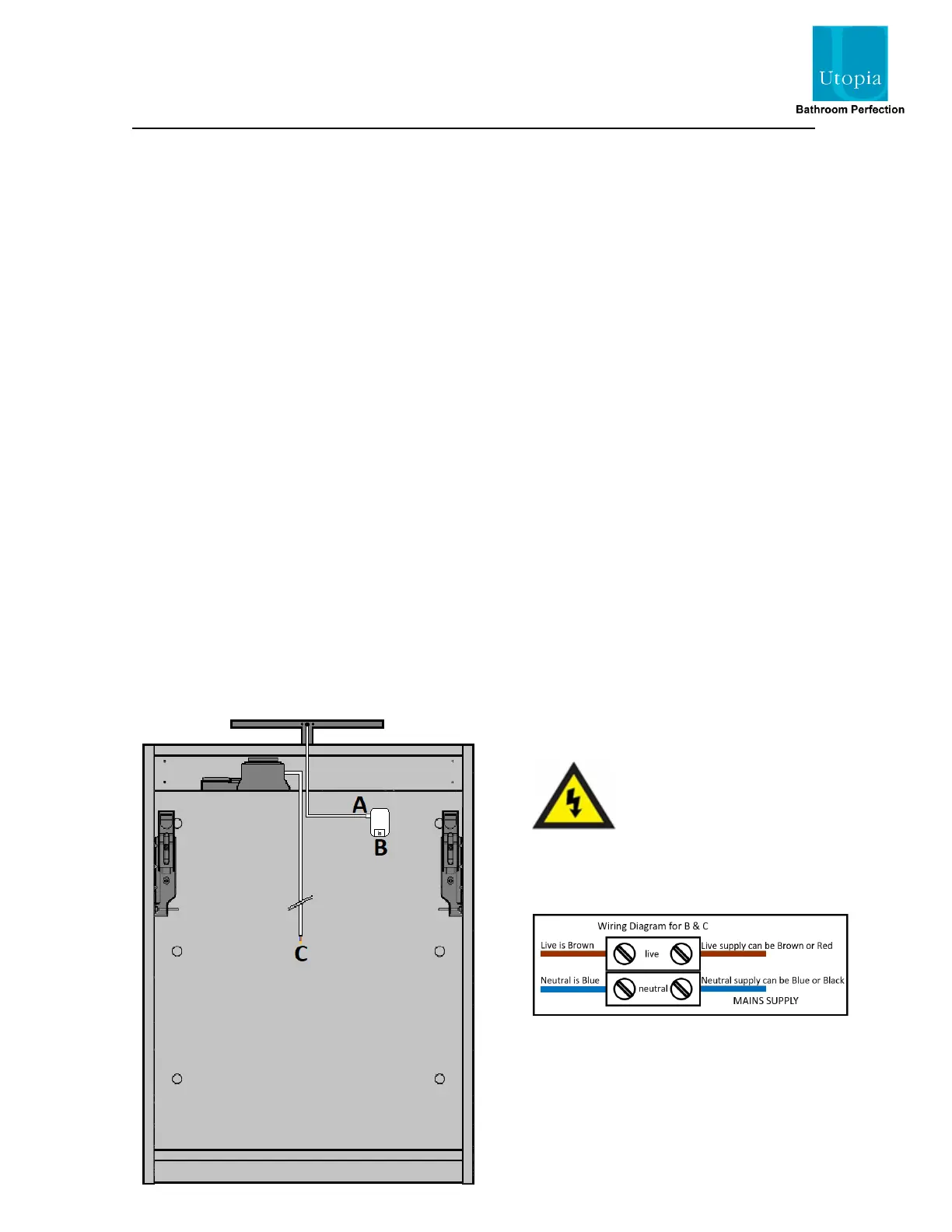

Connection to Mains Electrics
Turn off the electrical supply.
Fit the overhead light onto the top of the cabinet using the screws provided.
Connect the cable connector from the overhead light into the connector port on the driver (A).
Connect the electrical supply in the bathroom to the driver (B).
Connect the electrical supply in the bathroom to the shaver socket cable (C).
Turn the electrical supply back on and check that the overhead light and shaver socket function
as required.
WARNING
RISK OF ELECTRIC SHOCK
Turn off Mains Electric prior to
commencing work.
