Level limit switch
Series RF 3000
Technical Information / Instruction manual
page
Applications

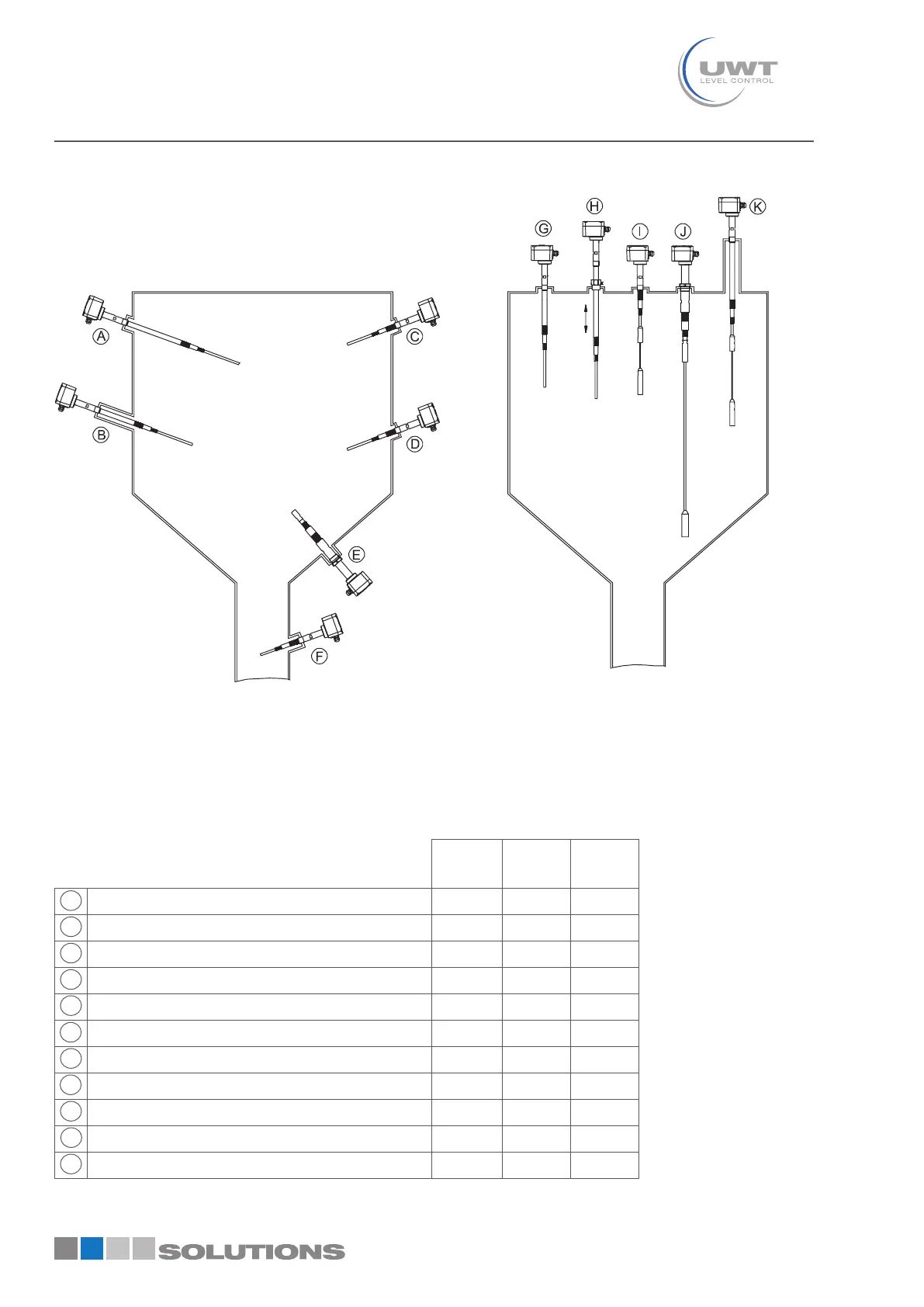

RF 3100 RF 3200 RF 3300
Inactive length to reach distance from silo wall
• • •
Inactive length due to long mounting nozzle
• • •
Full detector with short length
• • •
Demand detector with short length, observe max. load
• • •
Empty detector with short length, observe max. load
• • •
Application in down pipe, observe max. load
• • •
Inactive length to bring active probe to required level
• • •
Inactive length and sliding sleeve for adjustable height
• •
Full detector, rope version
• • •
Empty detector, rope version, observe max. load
• • •
Inactive length due to long mounting nozzle
• • •
