1. Attaching the parts for the kick
1-1. Remove the cap that is attached to the stand’s right pipe (with one holder).

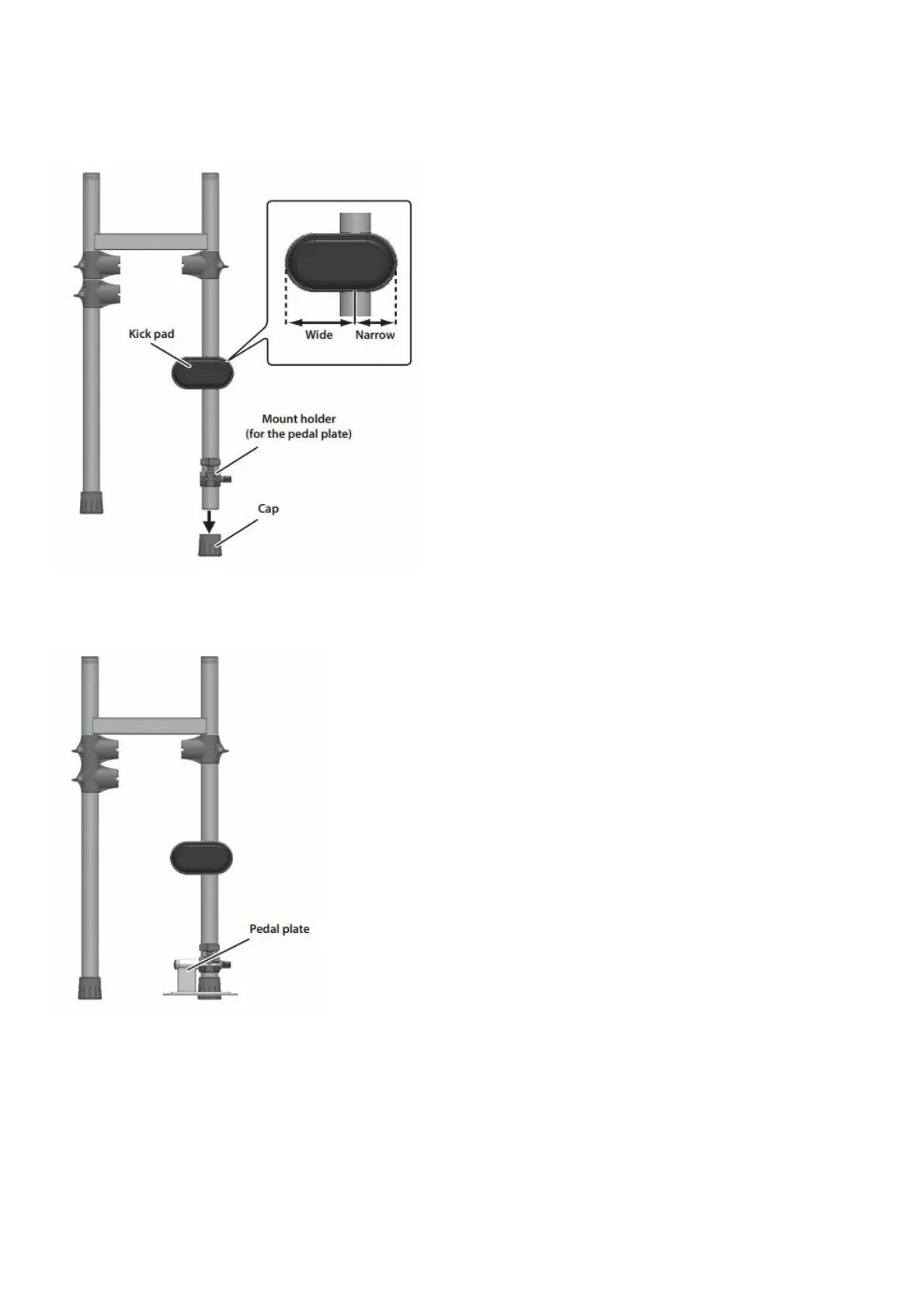

1-2. Insert the kick pad and mount holder (for the pedal plate), and provisionally fasten them in the
orientation shown in the illustration.
1–3. Replace the cap.
1–4. Attach the pedal plate to the mount holder
2. Assembling the left and right arm sections
Lay the left and right arm sections on the floor while assembling them.
Left arm section
2-1. Using a drum key, loosen the bolt on the holder of straight pipe “L” (long), then insert curved pipe.
