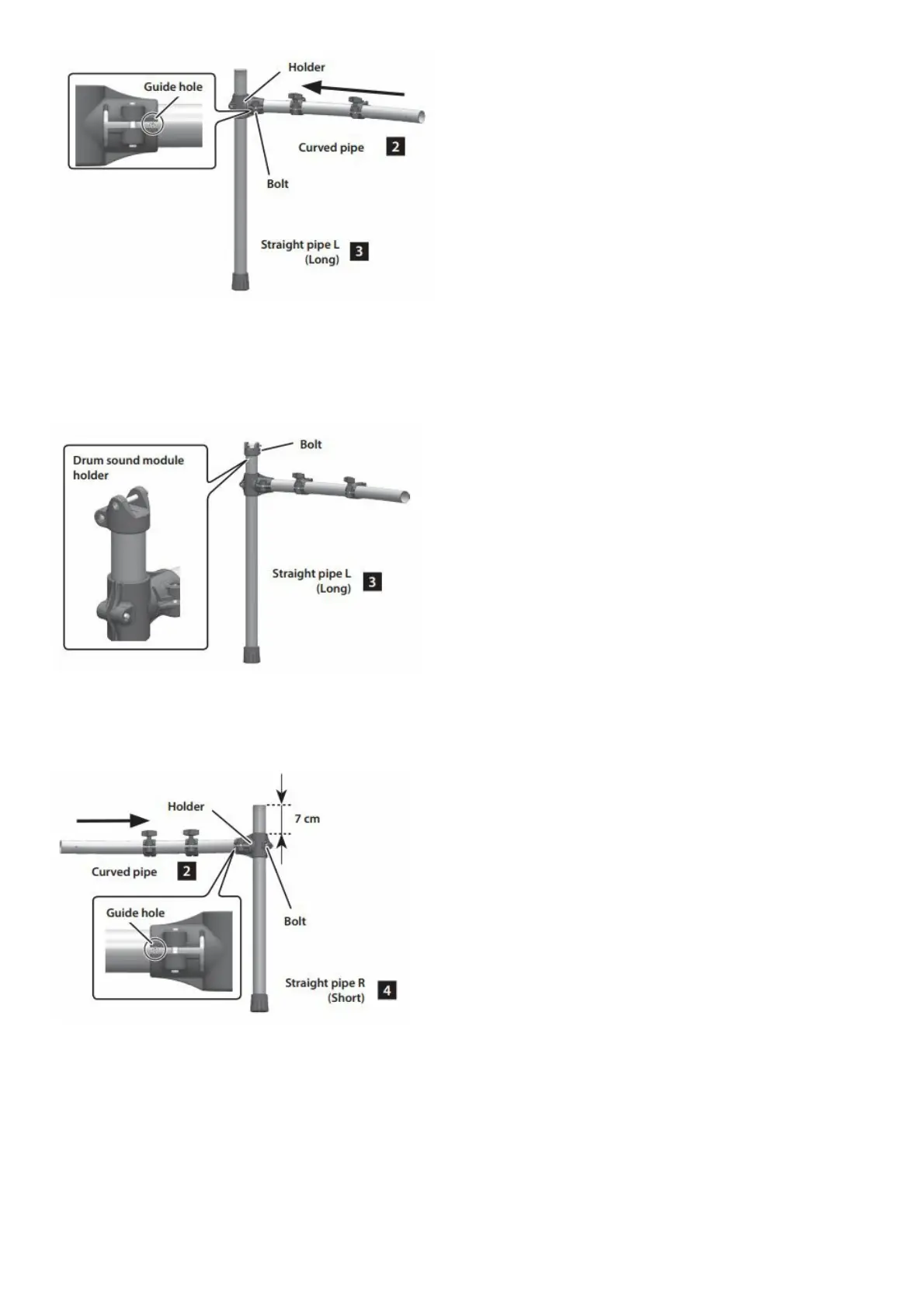

As a general rule, insert curved pipe until the guide hole on the pipe can be seen through the gap in the holder. After
firmly inserting it all the way, use the drum key to firmly tighten bolt.
2–2. Use the drum key to loosen the bolt of the drum sound module holder, then attach the drum sound
module holder to straight pipe “L” (long) and tighten the bolt.
Right arm section
2–3. Using a drum key, loosen the bolt on the holder of straight pipe “R” (short) then insert curved pipe.
As a general rule, insert curved pipe until the guide hole on the pipe can be seen through the gap in the holder. After
firmly inserting it all the way, use the drum key to firmly tighten bolt.
2–4. Position straight pipe “R” (short) so that its tip protrudes by about 7 cm (3 inches), and then tighten the
holder.
3. Attach the left and right arm sections to the main unit
3-1. Use a drum key to loosen bolt of the holder “A” (attached to the left-side pipe (with two holders) of the
stand), and insert left arm (of the assembly you created in step 2) into holder “A” of the stand.
