Vacmaster VP545 - Page 12

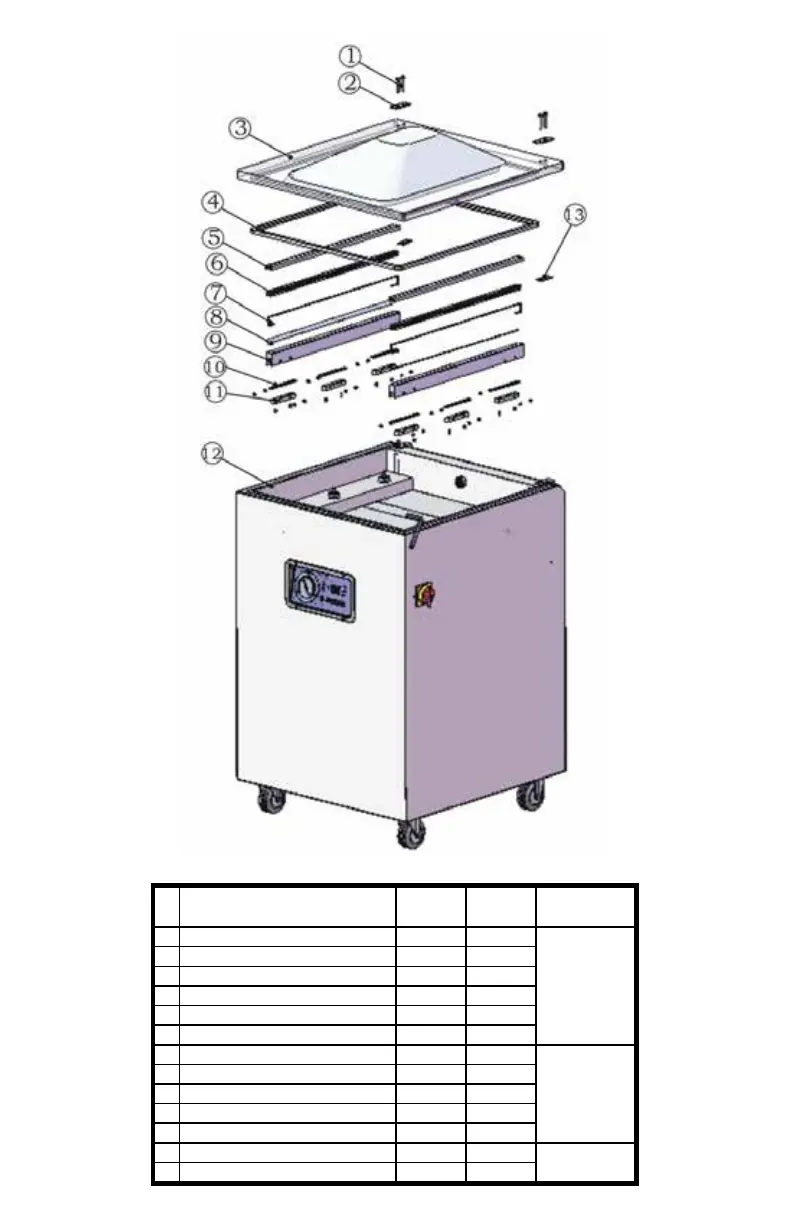

Fig. 1
Name Quantity
Part
Number
Assembly
Part Number
1 Hexagon Socket Cap Screw 2
2 Upper Platen for Lid 1
3 Chamber Lid 1 979501
4 Lid Gasket 1 979202
5 Top Bar 2 979505
6 Seal Pad 2 976598
7 Seal Wire 2 979109
8 Teflon Tape 4 979822
9 Seal Bar 2
10 Brass Contacts 6
11 Seal Bar Tension Blocks 6
12 Vacuum Chamber 1
13 Lower Platen for Lid 2
Seal Bar
Assembly
(979500)
VP-545
