The Vaculex TP is a vacuum lifting aid designed for express parcel handling, providing an efficient, ergonomic, and safe solution for lifting various loads. It is a Swedish invention based on vacuum technology, aimed at simplifying the handling of goods in a business environment.

Function Description:

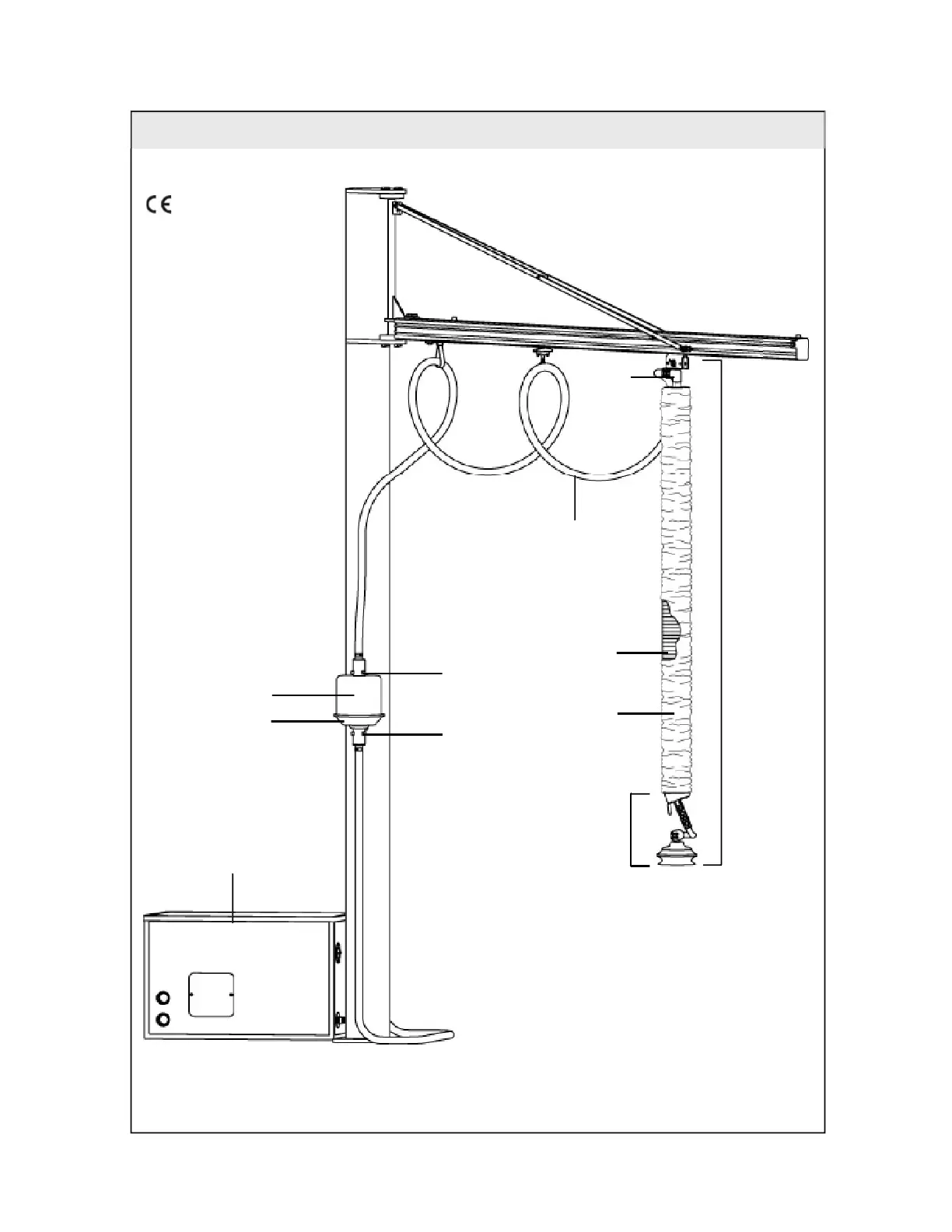

The Vaculex TP operates by using a vacuum pump to create suction, allowing a suction cup to grip and lift objects. The lifting unit is suspended from a support system, such as a traversing crane, and includes a control unit for operation. The system is designed to handle loads safely and efficiently, reducing the physical strain on operators. It can be supplied with either an electrically operated vacuum pump or a compressed air-driven vacuum pump, depending on the specific requirements and available infrastructure.

Important Technical Specifications:

Lifting Mechanism: Vacuum technology, utilizing a vacuum pump and suction cup.
Power Source: Available with electrically operated vacuum pump or compressed air-driven vacuum pump.
Components:
- Top Swivel: Allows for rotation of the lifting unit.
- Suspension Ear: Point of attachment for the lifting unit to the support system.
- Plastic Adapter & Non-return Valve: Components within the vacuum system.
- Control Unit: Features a balance valve, balance knob, release button, control lever, and handle for operator interaction.
- Elbow Joint & Bottom Swivel: Provide flexibility in positioning the suction cup.
- Bellows Suction Cup: The primary component for gripping loads.
- Vacuum Pump: Generates the vacuum for lifting. Includes an air outlet, connection for the vacuum hose, and cable transition (for electrical pump).
- Filter Unit: Contains a filter holder and lid to protect the vacuum pump from debris.
- Lifting Hose & Vacuum Hose: Connect the various components of the vacuum system.
- Protective Stocking: Covers the lifting hose.
Compressed Air-Driven Pump Specifics:
- Compressed Air Connection: For connecting to an external compressed air supply.
- Vacuum Gauge: Displays vacuum pressure.
- On/Off Control: For activating and deactivating the pump.
- Filter Lid & Housing: For the air filter.
- Silencer: Reduces noise from the pump.
Safety Features: Designed with multiple safety considerations, including warnings against handling heavier loads than designed, using the suction cup on unstable surfaces, and operating under the influence of substances. It also emphasizes the importance of proper installation and maintenance to prevent accidents.

Usage Features:

Operator Safety: Requires personnel to read and understand the manual, use protective shoes, and avoid operating under the influence of alcohol, drugs, or sleeping pills.
Load Handling:
- Only handle loads that are strong enough not to fall apart when lifted.
- Avoid fixing the suction cup to surfaces with loose components or excessively slippery surfaces.
- Exercise caution with sharp objects and hazardous/explosive contents.
- Never operate in a way that risks injuring anyone with a falling load.
- Do not release a lifted load if it risks personal injury or damage.
- Never use the suction cup on people or animals.
- Do not leave a hanging load unattended.
- Avoid using personal strength to influence the lifting apparatus with a load.
Setup and Adjustments:
- Lifting Unit Suspension: The lifting unit is suspended from its suspension ear. The suction cup should be 100 mm above the floor when suspended; adjustments to hose length or suspension height may be necessary.
- Balancing Level Adjustment (No Load): The balancing level with no load is adjusted using the balance knob on the control unit.
- Right/Left Handed Adaptation: The release button can be repositioned on either the right or left side of the handle for operator comfort.
Operation:
- Operating in Outer Position: The lift is raised to its highest position with no load.
- Operating in Partly Depressed Position: The load is raised or lowered, depending on the amount the control is depressed.
- Operating in Completely Depressed Position: With load, the lift is lowered quickly and the load is released when it reaches a solid support. Without load, the lift is lowered quickly.
- Gripping the Load: Depress the operating handle to put the suction cup on the load, then release the handle to lift.
- Releasing the Load: Depress the release button to release the load. The control unit can be held stationary to rotate the load.
- Important Notes: Do not lift on surfaces containing loose objects. Ensure the load is strong enough not to fall apart. Use the facility of lifting from the side when the top does not have a suitable, grippable surface.

Maintenance Features:

Daily Maintenance:
- Check the filter for dirt or dusty environments.
- Shake out or vacuum clean the filter.
- Change damaged filters.
Weekly Maintenance:
- Test for power failure: Lift a 5 kg load, leave it hanging, then switch off the vacuum pump. The load should sink to the floor. If it sinks rapidly, the Vaculex TP must not be used until the fault is rectified.
- Check if the filter is clogged or damaged.
- Check if the bellows cup is damaged.
- Check if the lifting hose is damaged.
Every Three Months Maintenance:
- Check the suspension ear and equipment for damage. Do not use if damaged.
- Check the nuts and bolts in the suspension system for tightness and security.
- Check the vacuum hose and lifting hose for air-tightness and ensure they are not chafed or pinched.
Troubleshooting: The manual provides guidance for common issues such as the load not lifting or lifting slowly (e.g., clogged air filter, leakage), the load not lowering slowly during a power cut test, inability to set the balancing level without load (e.g., rubbish in the balance valve), and the vacuum pump not starting or making bad noise. It emphasizes contacting the retailer for rectification if issues persist.

The Vaculex TP is designed for professional use, and adherence to the manual's instructions is crucial for safe and effective operation, as well as for maintaining the equipment's longevity and performance. Unauthorized modifications or non-approved accessories/spare parts can cause serious personal injury during lifting.
