1514 VADA SUMP PUMP WITH VERTICAL FLOAT V-150VF INSTALLATION MANUAL
0
0
2
1
3
5
4
7
6
20 40 60
Flow (litres per minute)
Head (metres)
80 100 120 140
F
E
B
C D
A
If the pump is not going to be used for long periods of time (e.g. 6+ months), it should be emptied
completely, rinsed with clean water and stored in a dry, shaded place.

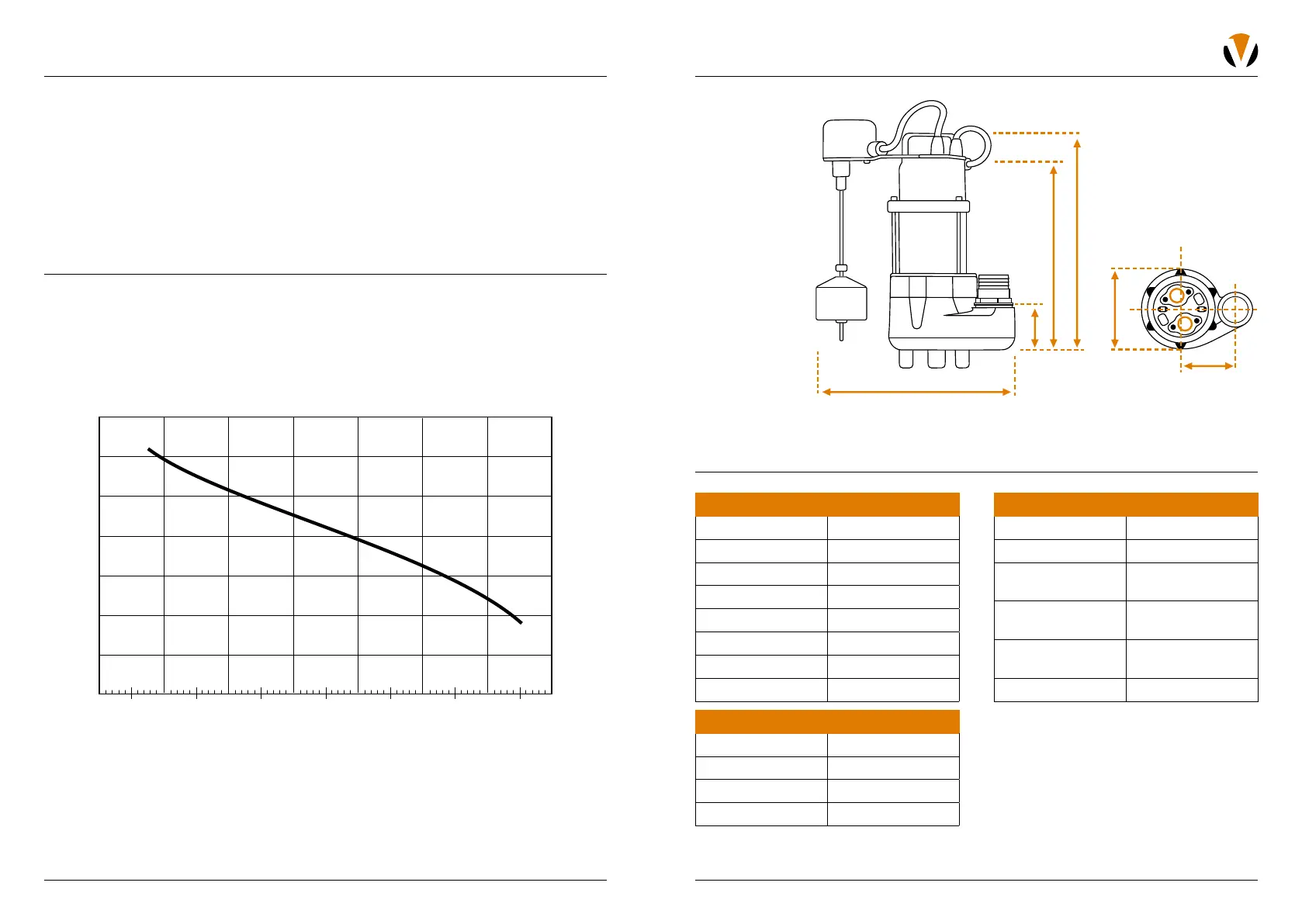

Pump curves are a great tool to understand the optimum operating range, in relation to head (metres)
and flow (l/min). Pump curves can be interpreted by tracing your finger along the Head (Metres)
across to Flow (litres per minute).
In the pump curve below, you can see that if the Vada Sump Pump with Vertical Float (V150-VF) has
a discharge head between 4.3–3.2m (43–32kpa), then the pump will produce between 64–96 l/min,
and will operate in the optimum operating range.
Note: Operating outside the optimum operating range over an extended time period will result
in a shortened product lifespan.
Note: Should you require further specific information or assistance with calculating the system duty
of your application please contact your local Reece branch.
STORING THE PUMP PRODUCT DIMENSIONS
PUMP PERFORMANCE CURVE
TECHNICAL INFORMATION
A. 260mm
B. 80mm
C. 310mm
D. 357mm
E. 78mm
F. 122mm
Vertical float on level:
Start min 96mm
Vertical float off level:
Stop max 70mm
Pump weight: 9kg
CONSTRUCTION
Power Cable H07RN-F
Float Switch H07RN-F
Pump Housing Cast Iron
Pump Shaft 304 Stainless-steel
Motor Shell 304 Stainless-steel
Mechanical Seal Carbon ceramic
Oil Seal Nitrile
Impeller Polycarbonate
POWER
Power Consumption 0.18 Kw
Voltage 1~230V±10% 50Hz
Full Load Current 1.75 A
Starting Current 9.5 A
USAGE LIMITATIONS
Max Flow Rate 150 l/min
Max Water Temp 40°C
Max Submersion
Depth
6m
Max Soft
Solids Width
15mm
Max Concentration
of Fine Solids
1%
IP Rating IP68
Note: The Vada V-150VF Sump Pump with
Vertical Float MUST be used with clean or grey
water with no suspended solids like stones,
pebbles, mulch, or abrasive material such
as sand, cement, dust, or harsh detergents.
