VADO Life - Tef Model Installation Guide; Zoo Model Installation Guide; Valve Dimensions and Depth Tolerance

10
3

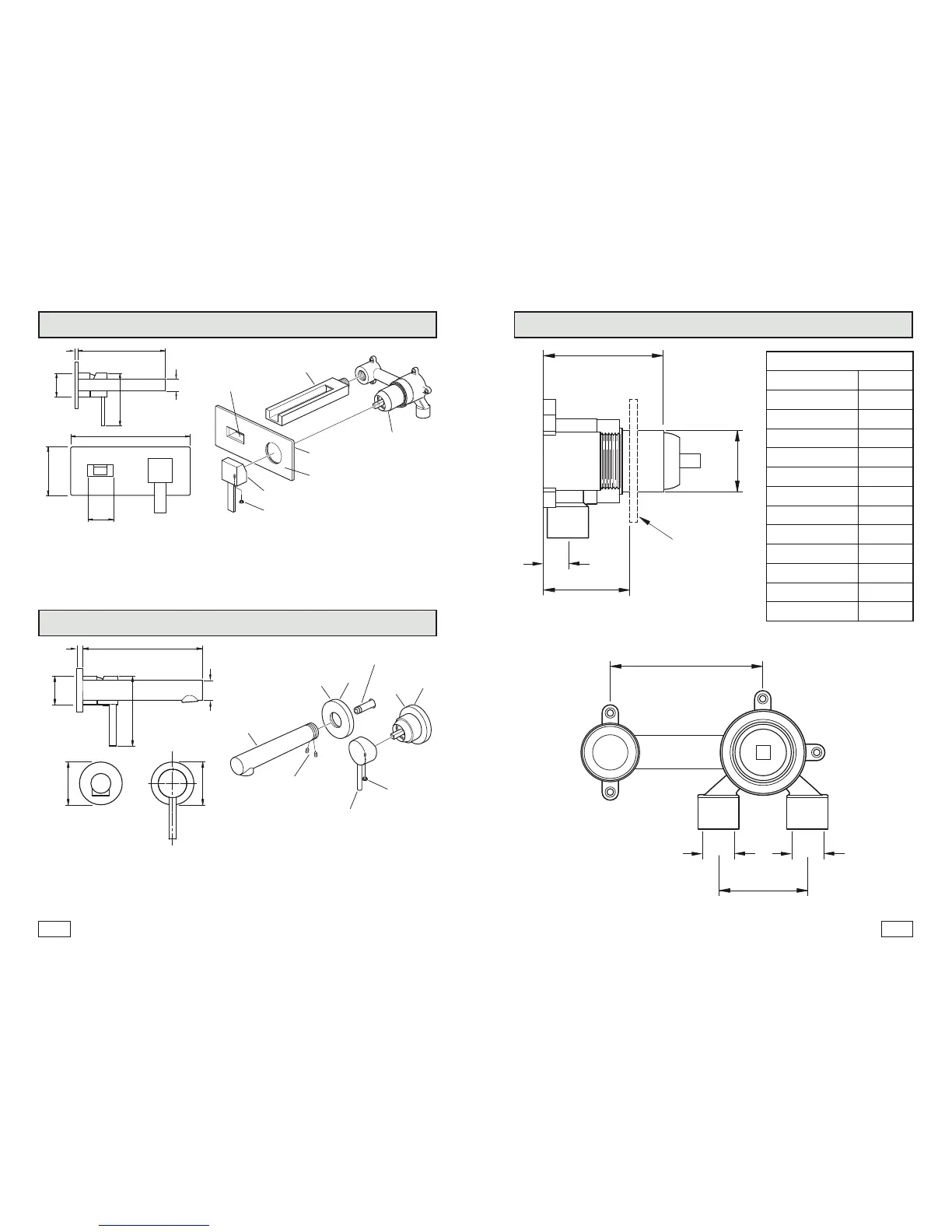

Dimensions - valve
* This dimension changes to 50mm for the Soho only.
Zoo installation
175mm
5mm
40mm
98mm
60mm
60mm
28mm
Tef installation
Using sucient ptfe tape to hold the spout securely and prevent leaks, screw the spout into the
valve body and adjust the spout to the correct position for when the cover is slid on.
Remove the backing paper from the seal on the back of the cover. Apply the supplied lubricant
to the slot in the cover. Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub screw &
cover
Handle
Seal
175mm
200mm
80mm
43mm
20mm
40mm
90mm
Spout
5mm
Valve
Apply lubricant
to slot
1/2”1/2”
Depth tolerance.
See table on the right
Ø40mm*
Cover plate
16mm
79mm
100mm
58mm
Cover
‘O’ ring
Grub
screws
Spout
Cover
‘O’ ring
Grub
screw &
cover
Handle
Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Screw the spout into the cover. Push the spout over the connecting tube, secure using the grub
screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Connecting tube
Depth tolerance.
Model Depth
EDI-109S/A-C/P 52-72mm
ION-109S/A-C/P 53-73mm
LIF-109S/A-C/P 53-73mm
NOT-109S/A-C/P 53-73mm
ORI-109S/A-C/P 53-70mm
PHA-109S/A-C/P 53-73mm
PHO-109S/A-C/P 53-73mm
SOH-109S/A-C/P 53-72mm
SYN-109S/A-C/P 53-73mm
TE-109S/A-C/P 53-73mm
TEF-109S/A-C/P 53-73mm
ZOO-109S/A-C/P 53-72mm
