6

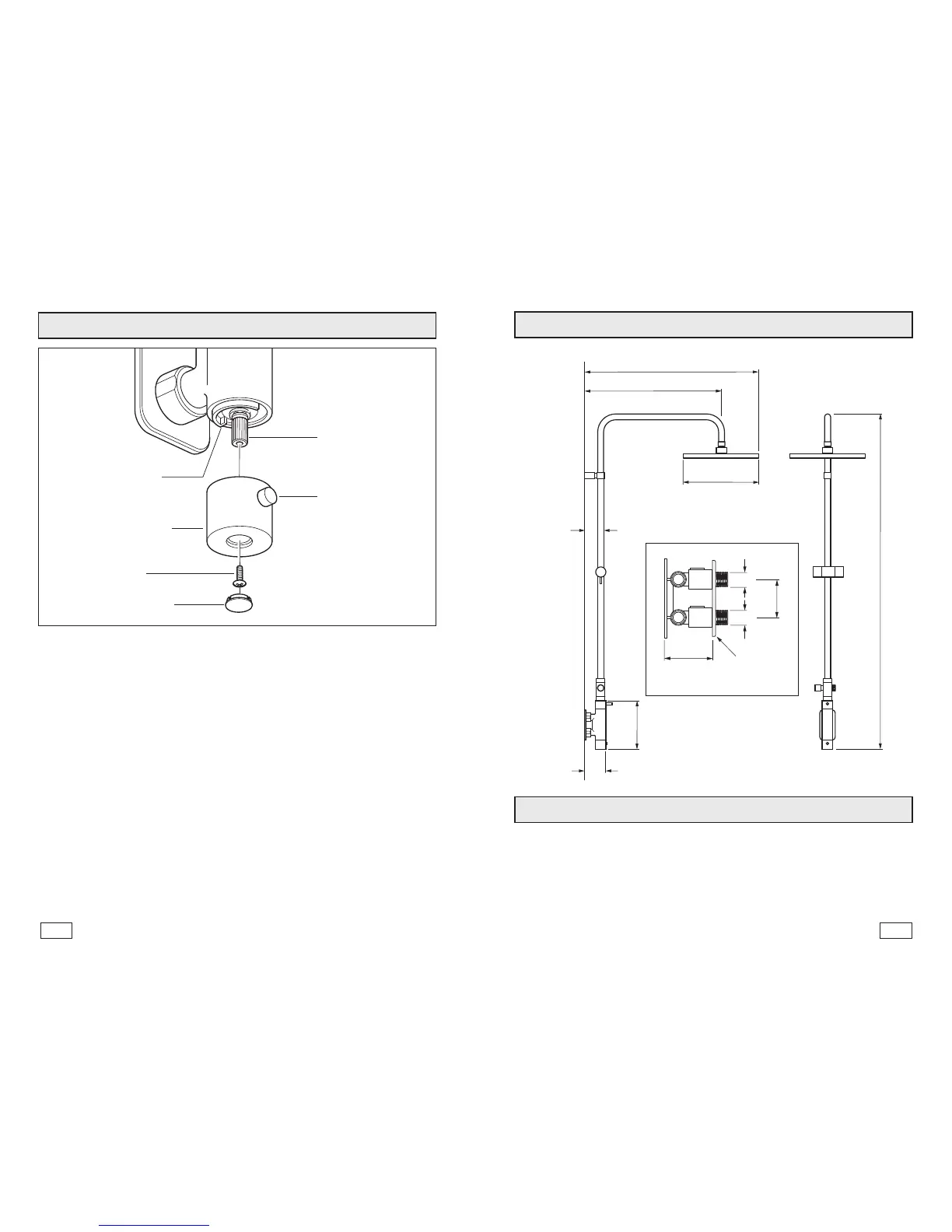

Dimensions
3
Operating Specications
Temperature resetting
The valve has been factory set under balance pressures and hot water supply at 65° C.
When your specic operating conditions are signicantly dierent from the above, the
temperature of the water may vary from the setting.
When the dierence is too great, you can adjust the calibration of the valve to suit
individual requirements of the installation:
1. Select 38° C on the handle and check the temperature of the water being delivered
to the outlet with a thermometer.
2. If the temperature is unacceptable proceed to reset the calibration as follows:
Remove the handle by pulling out the screw cover, remove the screw from inside.
Turn the spline of the valve clockwise to decrease the temperature and anti-clockwise
to increase the temperature until 38° is achieved.
3. Replace the handle with the temperature override button pointing to the front
being careful not to turn the spline of the valve.
The valve setting is now calibrated to suit your requirements.
Hot Water Supply Temperature:
Maximum: 85° C
Minimum: 10° C higher than the maximum required mixed temperature (advise 65° C)
Operating Pressure:
Minimum operating pressure 1 bar
Maximum operating pressure 5 bar
445mm
572mm
Ø254mm
160mm
1185mm
Temperature
override button
Screw cover
Temperature
handle
Screw
Stop ring
Valve
Splines
58mm
66mm
63-78mm
1/2”1/2”
Fixing bracket
50mm
Cover
