Vaisala RS92-D - Figure 1 Vaisala Radiosonde RS92-D

User's Guide ______________________________________________________________________
12 __________________________________________________________________ M210987EN-C
0705-015

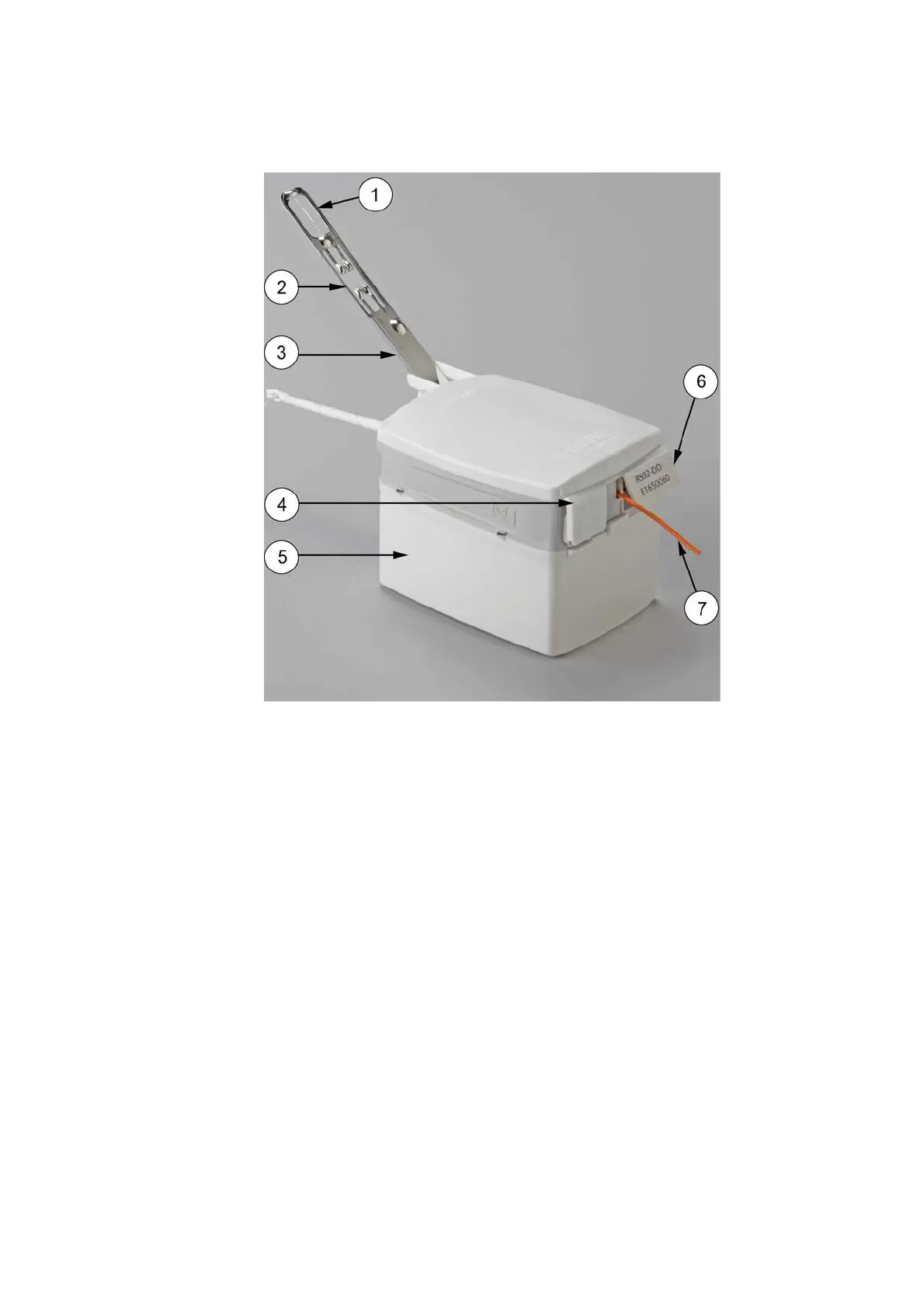

Figure 1 Vaisala Radiosonde RS92-D
1 = Temperature sensor
2 = Humidity sensors
3 = Sensor boom
4 = Additional sensor interface connector
5 = Battery case
6 = GC25/Radiosonde cable interface
7 = Antenna
