The VAKOLE CO26 Electric Mountain Bike is a robust and versatile e-bike designed for various terrains, offering a blend of traditional cycling and electric assistance. It features a sturdy frame and components built to withstand the rigors of mountain biking while providing the convenience of electric power.

Function Description:

The primary function of the CO26 is to provide an enhanced cycling experience through electric pedal assistance and, in some cases, throttle-only operation. It's equipped with a rear hub motor that delivers power to the rear wheel, aiding the rider in climbing hills, covering longer distances, or simply making the ride less strenuous. The bike incorporates a hydraulic disc brake system on both the front and rear wheels, ensuring strong and reliable stopping power in diverse conditions. A front fork with a shock absorber is included to smooth out rough terrain, providing a more comfortable ride. The battery, integrated into the frame, powers the motor and other electrical components, offering a significant range for extended adventures. For nighttime visibility and safety, a big headlight is mounted on the front. The bike also features a rear rack, adding practicality for carrying cargo or commuting. Gear shifting is managed by a derailleur, allowing riders to select appropriate gears for different speeds and inclines, further optimizing the riding experience.

Usage Features:

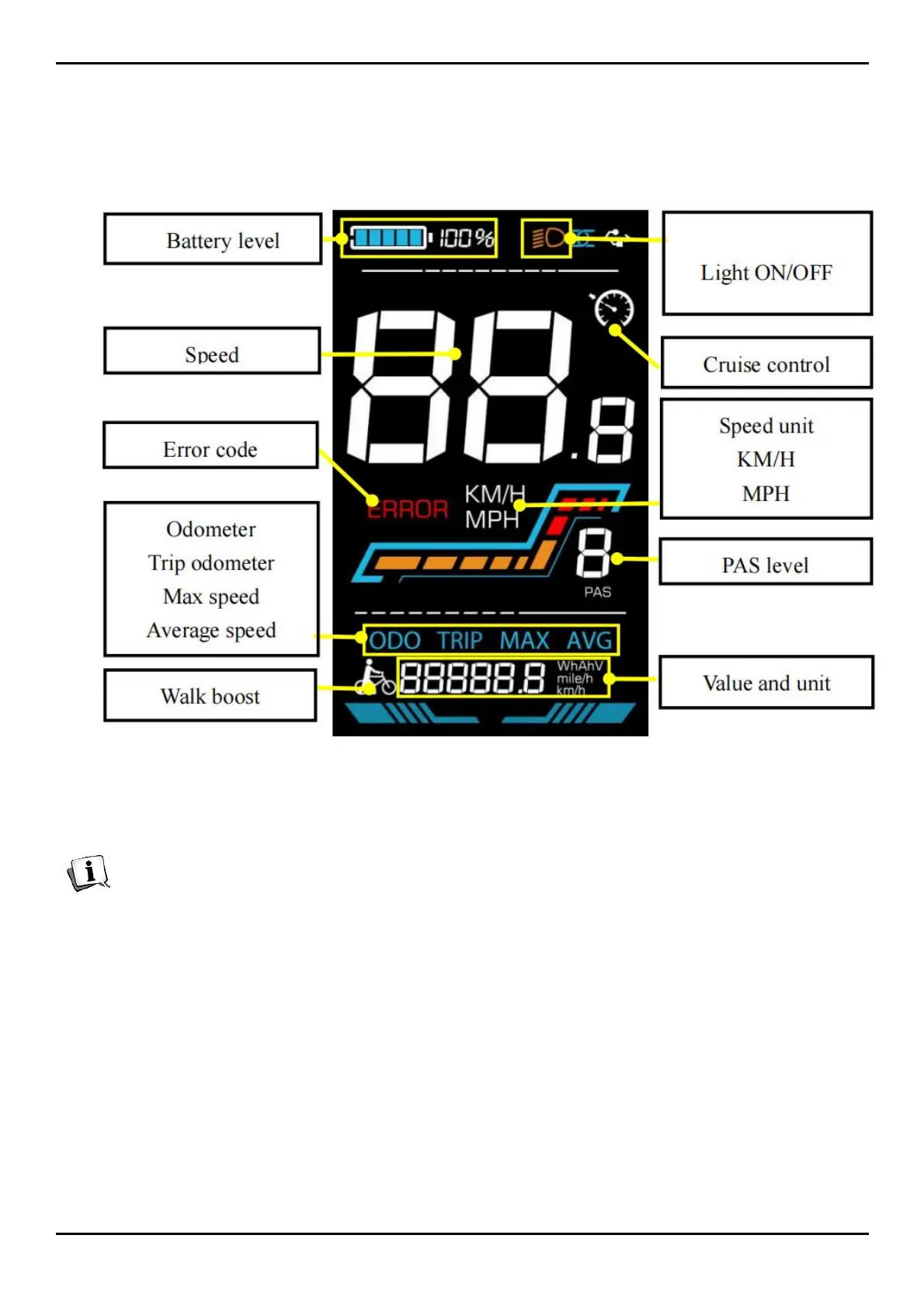

Operating the VAKOLE CO26 is designed to be intuitive and user-friendly. The bike is turned on by a long press of the "Switch" button, which activates the display and powers up the controller. The color smart display serves as the central interface, providing crucial information to the rider. This display shows the battery level, speed (in KM/H or MPH), odometer, trip odometer, max speed, and average speed. It also indicates the current PAS (Pedal Assist System) level and whether the light is on or off.

One of the key usage features is the PAS Level Selection. Riders can easily adjust the level of electric assistance by short-pressing the "UP" or "DOWN" buttons. The default range for PAS levels is 0-5, allowing riders to choose between minimal assistance for a more traditional cycling feel or maximum assistance for effortless cruising.

For situations where the rider needs to push the bike, such as navigating crowded areas or walking up a steep incline, the "Walk Assist Mode" is available. This mode is activated by pressing and holding the "Down" button for 2 seconds. Once engaged, the e-bike will move at a constant speed of 6km/h, making it easier to maneuver without having to pedal. It's important to note that this function is specifically for pushing the e-bike by hand and should not be used while riding.

The bike also includes a throttle for direct power application, allowing the rider to accelerate without pedaling, similar to a motorcycle. A thumb shifter is present for changing gears, providing mechanical control over the drivetrain. For safety, a horn is integrated, allowing the rider to alert others to their presence. The display also features a "Cruise control" function, which can maintain a set speed, further enhancing rider comfort on longer journeys. Error codes are displayed on the screen to inform the rider of any potential issues, such as brake failure, undervoltage protection, motor failure, or communication problems, aiding in quick troubleshooting.

Maintenance Features:

Maintaining the VAKOLE CO26 is straightforward, with several design elements and instructions aimed at ensuring longevity and optimal performance. The installation instructions provide a clear guide for initial setup, including mounting the front wheel, handlebar, headlight, fender, pedals, and rear rack. These steps are crucial for ensuring all components are correctly and securely attached, which is a fundamental aspect of bike maintenance.

A significant maintenance feature is the removable battery. The manual details the process for removing the battery: turning a key to unlock it, then keeping the key pointed to the unlock position while taking the battery out. This feature is not only convenient for charging the battery off the bike but also essential for storage. The manual explicitly advises riders to remove the battery and store it in a dry and ventilated place when not riding the e-bike. This practice helps to preserve battery life and prevent potential damage from environmental factors.

The display's ability to show error codes is a critical maintenance aid. When an error code appears, such as "05 Brake failure," "06 Undervoltage protection," "07 Motor failure," "08 Throttle abnormal," "09 Controller abnormal," "10 Communication abnormal," or "11 Abnormal communication transmission," the rider can refer to the "Error Code Definition" appendix in the manual. This appendix provides a definition for each code and a suggested solution, such as checking the brake's initial state, verifying battery voltage, inspecting motor phase cables, or ensuring proper connections between the display and controller. This diagnostic capability empowers users to identify and address common issues, potentially avoiding costly repairs.

Furthermore, the manual cautions against modifying system parameters to prevent "parameters disorder," indicating that the bike's electronic system is finely tuned and should not be tampered with by unauthorized users. The display also has an automatic shut-down feature after 10 minutes of inactivity, which helps conserve battery life, a small but important maintenance aspect for the battery's overall health. Regular checks of the hydraulic disc brakes, derailleur, and shock absorber, as well as keeping the bike clean, are implied maintenance practices for any e-bike to ensure safe and efficient operation. The robust construction of components like the big headlight and rear rack also suggests a design intended for durability, reducing the frequency of replacements.

VAKOLE CO26 - Display Screen Functions; Display Information and Controls
