4 User interface
The IHP comes with 4 different user interfaces which are described here.
4.1 Display, indicator and keyboard
To control and monitor the device, it is fitted with a graphical display, four buttons and two
indicators. When the lid is removed a TTL connector is available, for configuration via ValConnect.
A special connector cable is required.

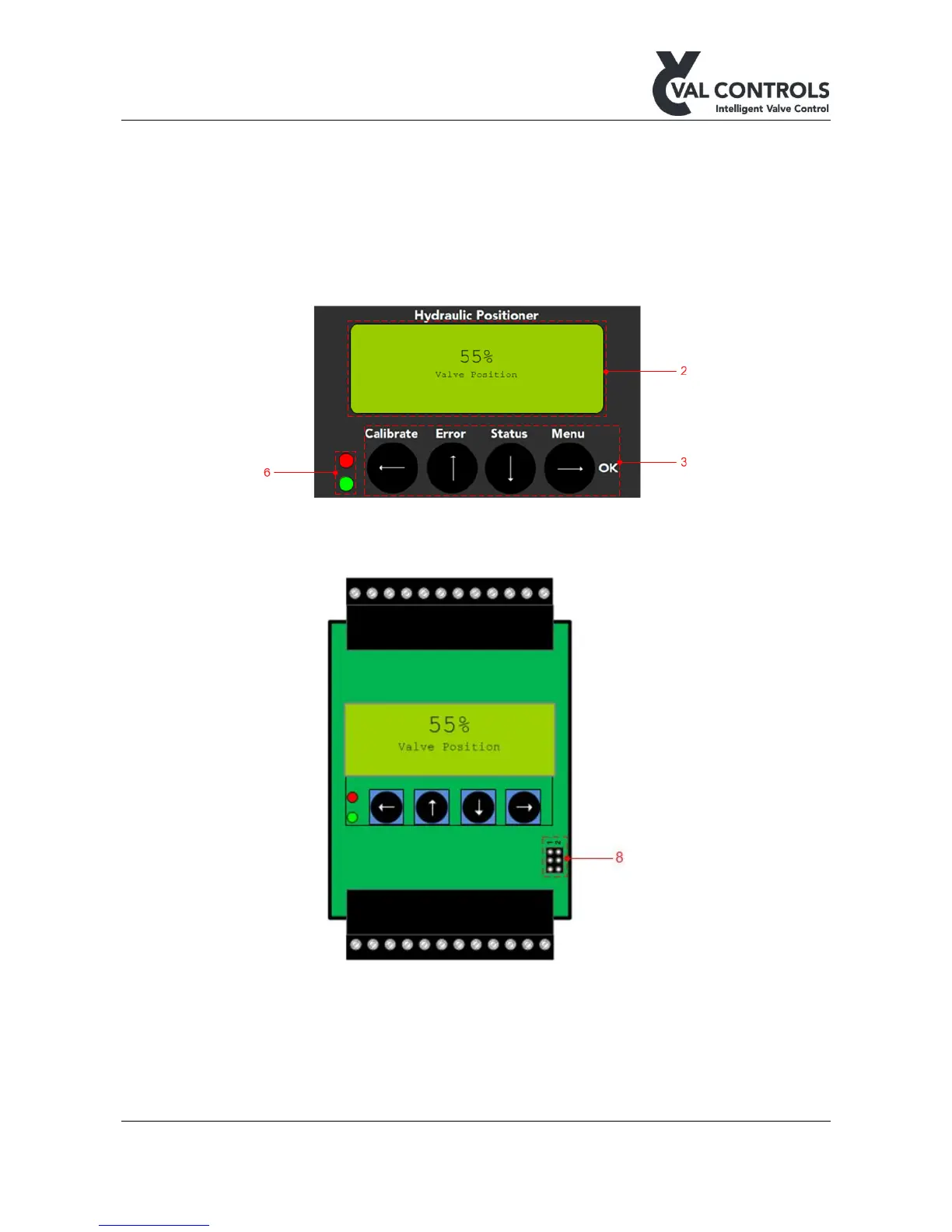

Figure 3: Type B interface
Figure 4: Type B TTL connection. Black marker on cable must face marking 1 and 2
