Val Controls IHP24-B - Digital Output - DO1, DO2, DO3, DO4; Terminals; Electrical Specifications

DHW-UM-001
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
vc@valcontrols.com • www.valcontrols.com
Revision: 6
9/12
Minimum use operating area
40%
Cable length
1.5 meters
Linearity
< 0.1%
Temperature coefficient
0.01% / 1°C (Warm-up: 10 min)
AI10 – Loop
External loop max Rload
820 Ohm at 20mA and 16.4VDC
Operating area
4 – 20mA
Minimum span
12mA
Cable length
1000 meters
Linearity
< 0.1%
Temperature coefficient
0.01% / 1°C (Warm-up: 10 min)
Rin
< 100 Ohm

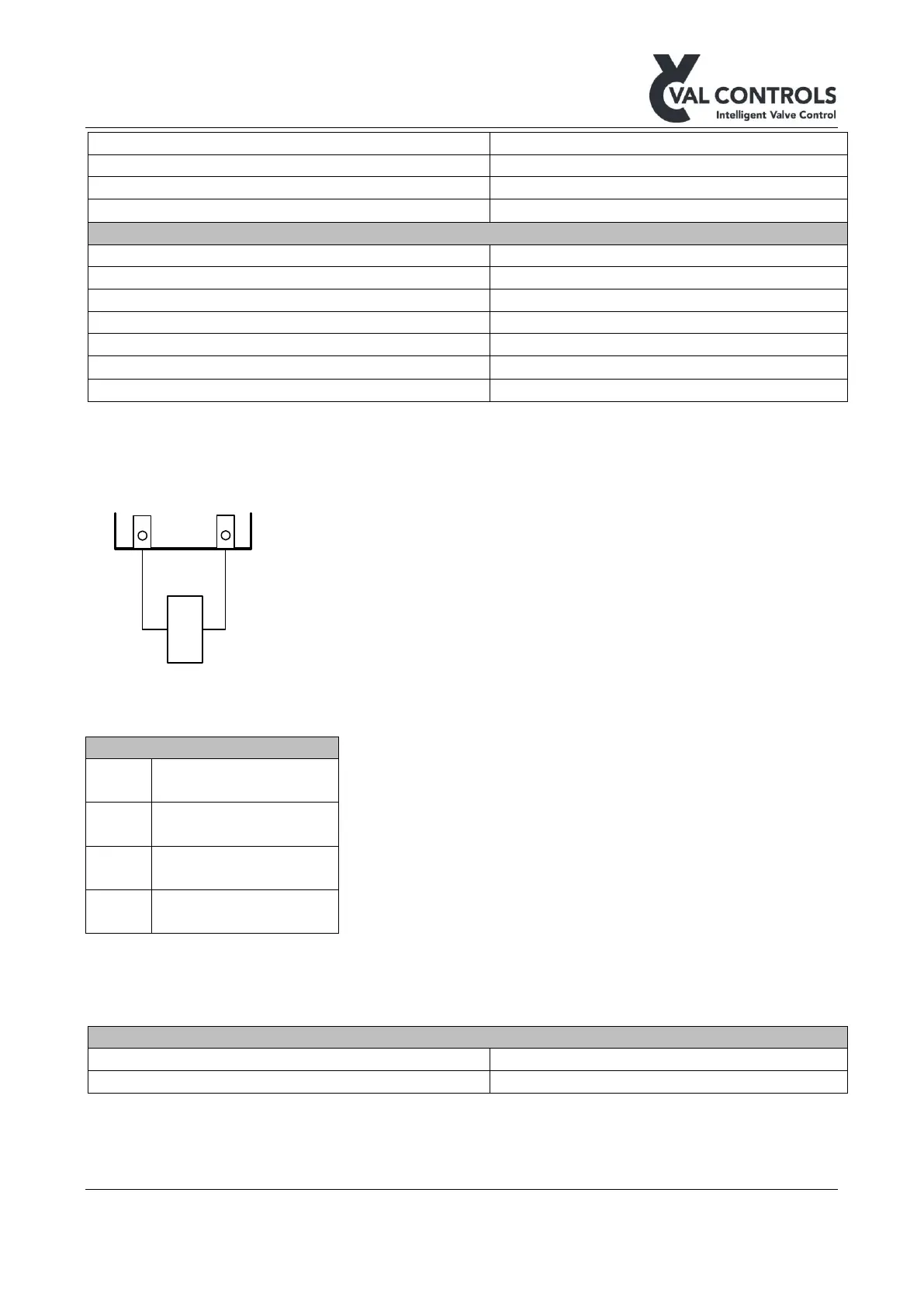

3.5 Digital output – DO1, DO2, DO3, DO4
24 VDC digital outputs.
DO
+
-
+ -
3.5.1 Terminals
DO1
13 (+)
14 (-)
DO2
16 (+)
17 (-)
DO3
19 (+)
20 (-)
DO4
22 (+)
23 (-)
All DOs (-) are common with PS2 (-)
3.5.2 Electrical specifications
DO – Digital outputs
Max load per digital output
up to 48W at 24VDC
Max load total
up to 192W at 24VDC
