3 Main board

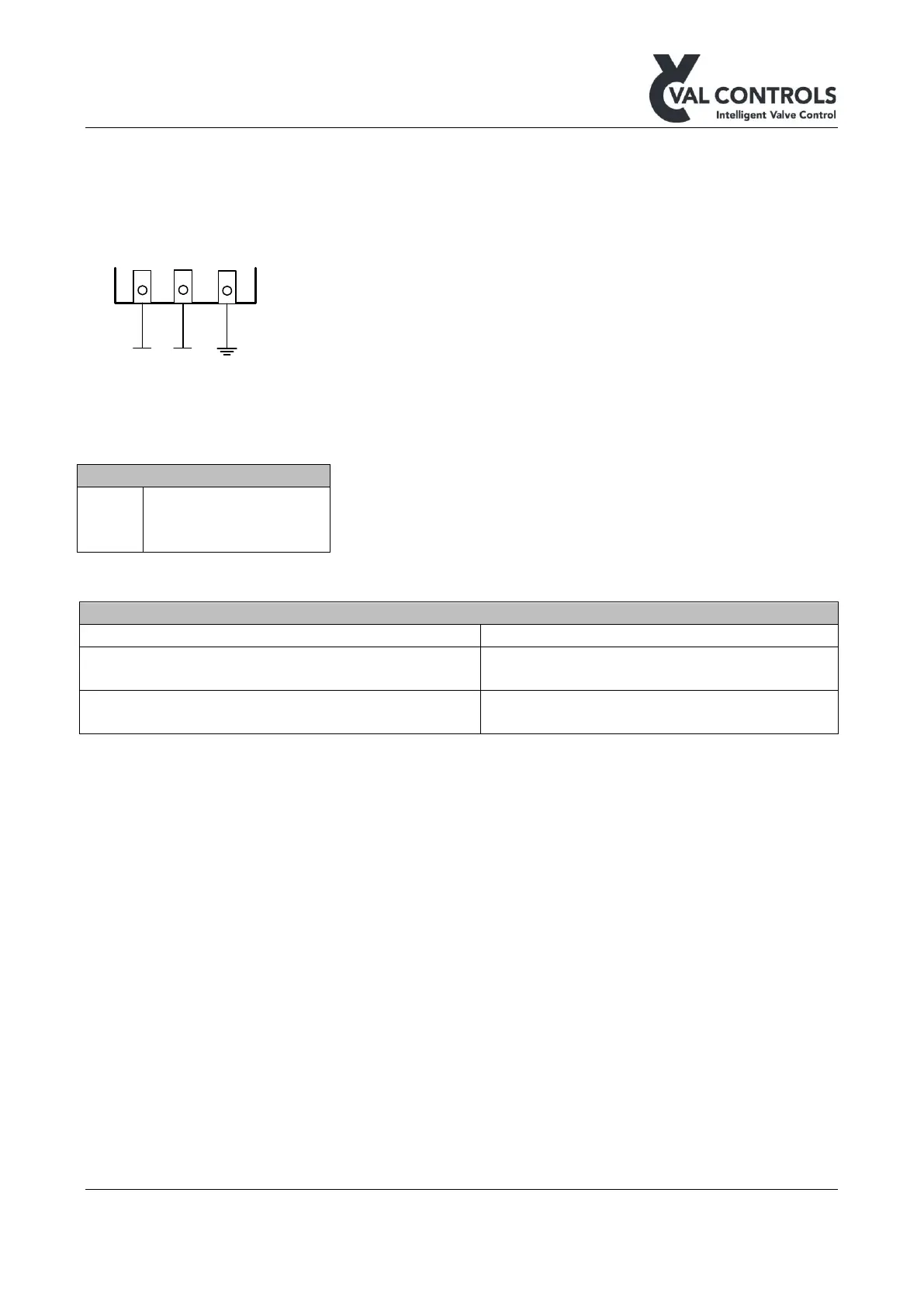

3.1 Power supply – PS2
24VDC power input to the device.
PS2
5
6
7
Ground
+
-
0V24V
Depending on device configuration, this power supply input may not be used.
3.1.1 Terminals
PS2
5 (+)
6 (-)
7 Ground
3.1.2 Electrical specifications
Power supply – PS2
Power supply
20.4 – 27.6VDC
Power dissipation, no position sensor/loop or
valves are connected.
< 2W
Power dissipation, with maximum load on all
inputs and outputs
< 5W
