Seat
at
Ass'y
Item Part No.
No. No. Req'd Description
36 *12692 1 Compression Spring
(3/16 O.D. X 1-11/16 Lg.)
37 *211052 1 O-ring
(.900 X .706 X .097; For all
except PA6E, PA6V, PA6-2E & PA6-2V)
250192 1 O-ring
(.900 X .706 X .097; For PA6V &
PA6-2V)
250193 1 O-ring
(.900 X .706 X .097; For PA6E &
PA6-2E)
38 305475 1 Exhaust Valve Stem
39 *10241 3 Lockwasher (For #10 bolt)
40 211054 3 Screw (#10-24 X 1/2 Lg.;
Torque to 50/55 in. lbs.)
41 33822 1 Piston End Plate
42 *28183 1 Piston Poppet
43 *205679 1 Compression Spring
(.485 O.D. X .915 Lg.)
44 *205674 1 Screw (8-32 UNC X 3/8 Lg.;
Torque to 12/18 in. lbs.)
45 51480 1 Rear Head (For all except PA6-
HUNT)
37468 1 Rear Head (For PA6-HUNT)
46 12691 1 Compression Spring (3/8 O.D. X 1-
1/2 Lg.; For all except PA6-TAL &
PA6-HUNT)
47 13936 1 Soc. Hd. Cap Screw (8-32 UNC X
1/4 Lg.; For all except PA6-TAL &
PA6-HUNT)
48 28198 1 Seal Guide (For all except PA6-TAL
& PA6-HUNT)
49 *216296 1 Filter Disc (For all except PA6-HUNT)
50 *10267 1 O-ring
(7/16 X 5/16 X 1/16; For all
except PA6V, PA6E, PA6-2E, PA6-TAL,
PA6-HUNT & PA6-2V)
18974 1 O-ring
(7/16 X 5/16 X 1/16; For PA6V
& PA6-2V)
13472 1 O-ring
(7/16 X 5/16 X 1/16; For PA6E &
PA6-2E)
51 33841 1 Actuator Button (For all except PA6-
TAL & PA6-HUNT)
52 214584 1 Poppet (For PA6-BEST, PA6-HUNT &
PA6M-DK)
53 214583 1 Retaining Sleeve (For PA6-BEST,
PA6-HUNT & PA6M-DK)
54 214596 1 Filter Disc (For PA6-BEST, PA6-
HUNT & PA6M-DK)
55 12201 1 Internal Retaining Ring (3/8 Shaft;
For PA6-BEST, PA6-HUNT &
PA6M-DK)
PARTS INCLUDED BUT NOT SHOWN
14972 1 Plug Fitting (1/4 PTF; Replaces air
pressure valve parts; For PA6-TAL)
Item Part No. Item Part No.
No. No. Req'd Description No. No. Req'd Description

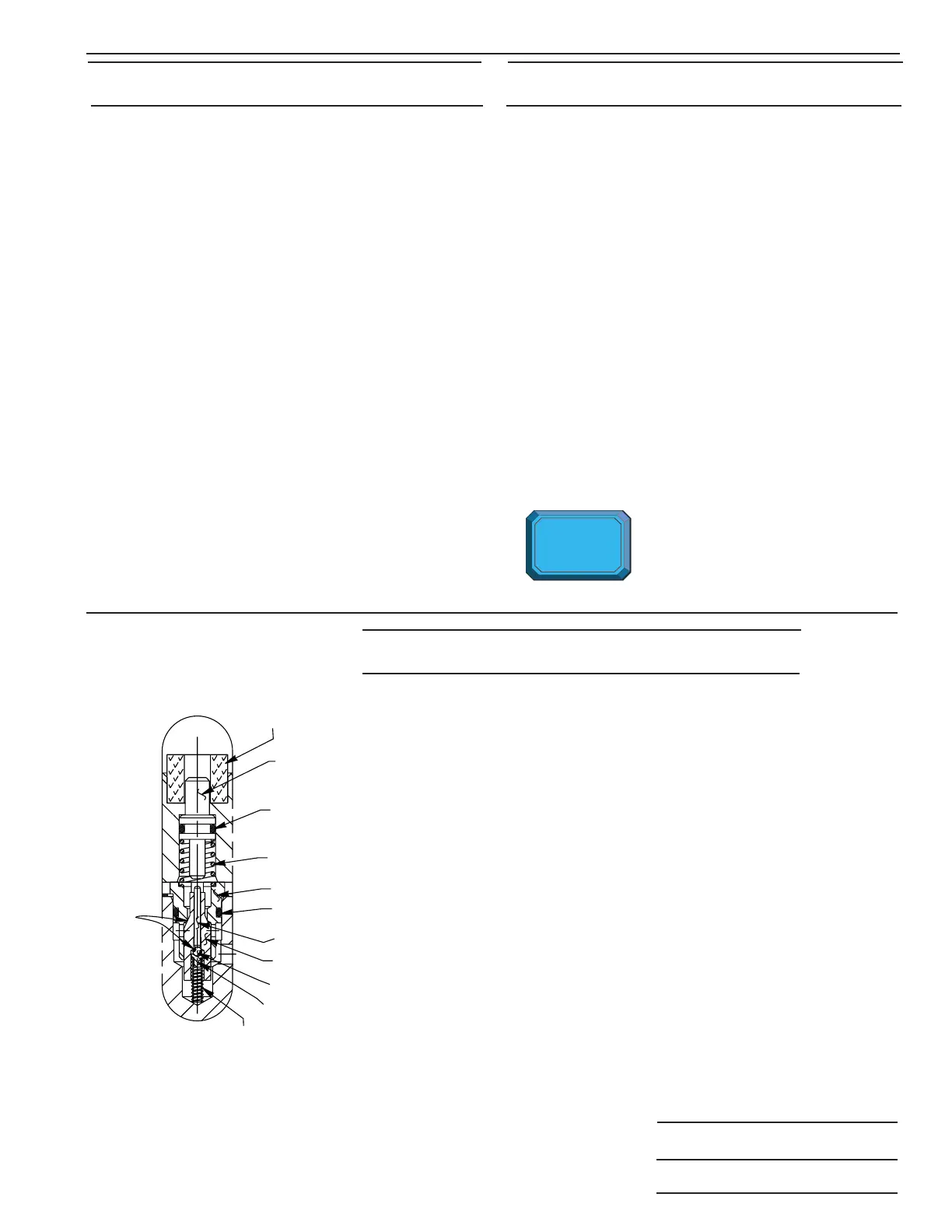

DETAIL "A-1"
Part numbers marked with an asterisk (*) are contained in a Repair Kit see
sheet 6 of 6 for individual repair kit information.
Parts List Form No. 101652
Sheet No. 5 of 6
Rev. 35 Date: 29 Mar. 2001
1*206504 1 Foam Tube
2 28227 1 Release Valve Button
3*10266 1 O-ring (3/8 X 1/4 X 1/16; For all except PA6-2E, PA6-2V, PA6E
& PA6V)
11438 1 O-ring (3/8 X 1/4 X 1/16; For PA6-2V & PA6V)
17715 1 O-ring (3/8 X 1/4 X 1/16; For PA6-2E & PA6E)
4*13944 1 Compression Spring (3/8 O.D. X 1/2 Lg.; For all except
PA6M-CHIEF, PA6-TAL & PA6M-PL)
*251297 1 Compression Spring (For PA6-TAL, PA6M-CHIEF & PA6M-
PL)
5 34377 1 Poppet Retainer
6*15279 1 O-ring (1/2 X 3/8 X 1/16; For all except PA6-2E, PA6-2V, PA6E
& PA6V)
19775 1 O-ring (1/2 X 3/8 X 1/16; For PA6-2V & PA6V)
17716 1 O-ring (1/2 X 3/8 X 1/16; For PA6-2E & PA6E)
7 13937 1 Dowel Pin (Note: Place tapered end
toward ball.; For all except PA6-HUNT)
8 29037 1 Release Valve Poppet
9*14443 1 Steel Ball (3/32 Dia.)
10 209736 1 Ball Retainer
11 *13959 1 Compression Spring (1/8 O.D. x 1/2 Lg.)
PARTS INCLUDED BUT NOT SHOWN
*15620 1 Oil Shaft Seal (For PA6-TAL, PA6M-CHIEF & PA6M-PL)
12184 2 Backup Washer (For PA6-HUNT)
