Issue 5, June 1995

(540) 427-3900

V-2001

INTEGRATED SINGLE ZONE (PLUS)

PAGE CONTROL UNIT

INTRODUCTION

The V-2001 is an Integrated Single Zone Paging

Control Unit for use with any electronic key or PABX.

The Control Unit provides external power of 1 amp of

-24vdc (20 Valcom power units) for powering Valcom

One-Way Amplified Speakers.

These instructions contain the specifications and

information necessary to install, operate, and maintain

the Integrated Single Zone (Plus) Paging Control Unit.

The V-2001 Page Control Unit is manufactured by

Valcom, Inc., 1111 Industry Avenue, Roanoke, VA

24013.

"WARNING: To reduce the risk of fire or

electric shock, do not expose this appliance to

rain or moisture."

"WARNING: Shock Hazard - Do Not Open."

"AVIS: Risque de Choc Electrique ne pas

Ouvrir."

"PELIGRO: Corriente Electrica - No Abra."

SPECIFICATIONS

Purpose

- Provides telephone system access to a single zone

of one-way paging.

Applications

- Electronic Key Systems

- PABX's

- 1A2 Key Systems (400 type line card required)

- Stand Alone Systems

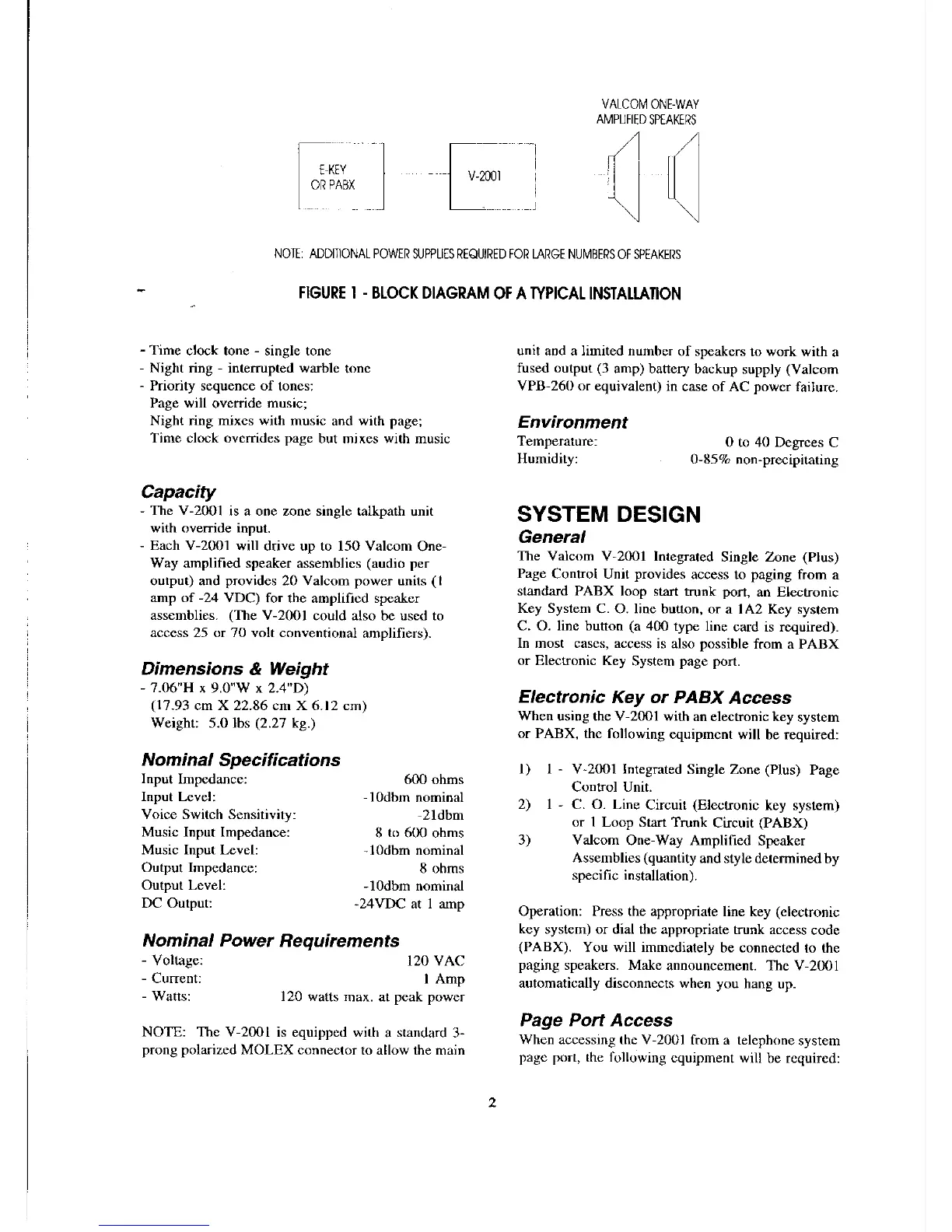

Refer to Figure 1 for a block diagram of a typical

installation.

Features

- Electronic key system line key access

- PABX loop start trunk port access

- Page port access

- Page override capability (using C. O. line

position or loop start trunk port)

- Switchable battery feed for loop start operation

- RJ11 for Tip and Ring connections

- Power on LED

- AGC on all voice outputs

- Directly drives up to 150 Valcom one-way

amplified speaker assemblies per output

- Background music input

- Voice operated switch to mute music during page

- Removable screw terminals provided

Valcom V-2001 - Page 2
